6
M12
M10
M8
80
60
40
20
0
(204)
(408)
(816)
(612)
1.0 2.0 3.0

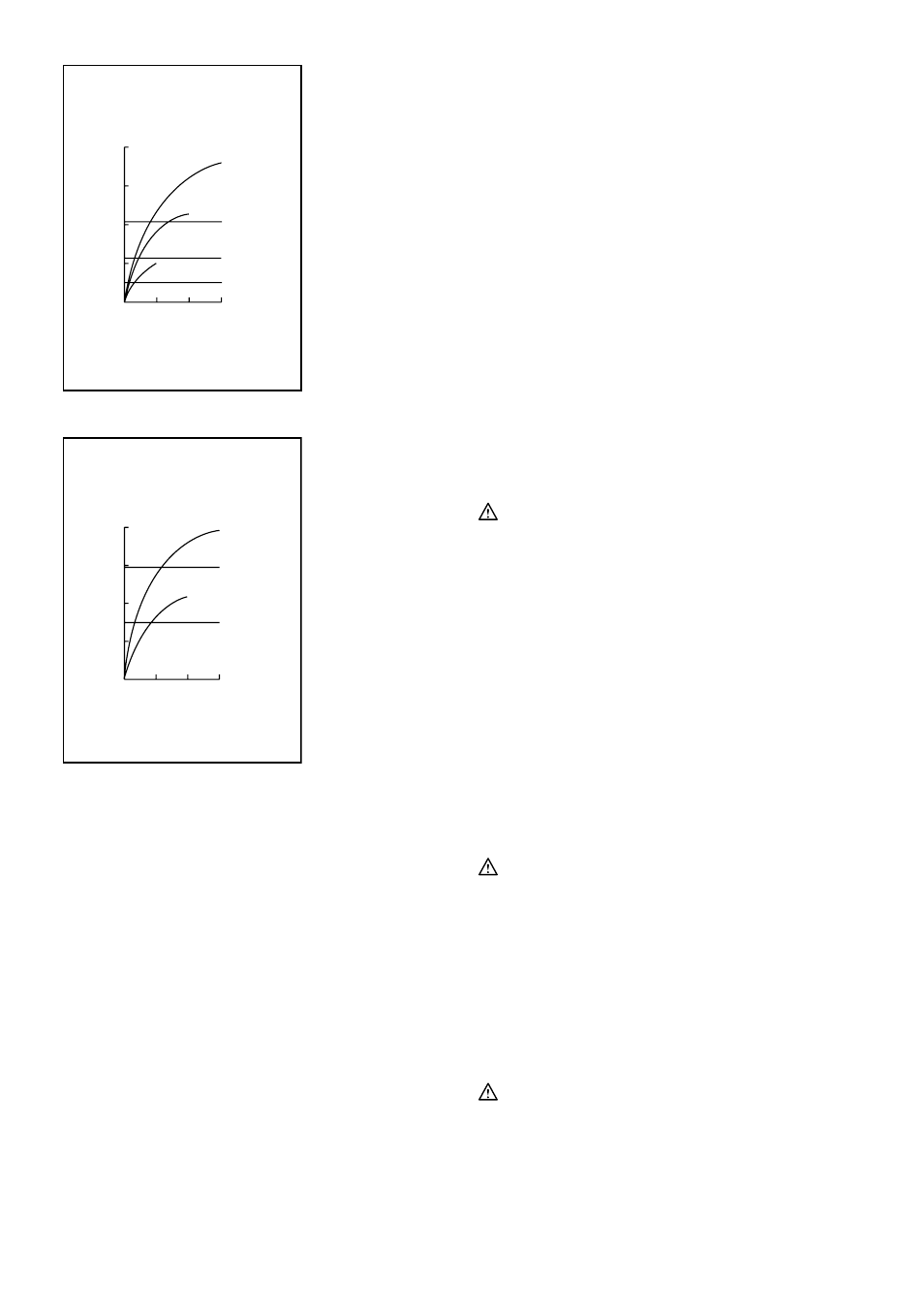

Standard bolt
N.m
(kgf.cm)
M12
M10
M8
(S)
Fastening time
Fastening torque
Proper fastening torque
008823
0
1.0 2.0 3.0
80
60
40
20
(204)
(408)
(816)
(612)
N.m
(kgf.cm)
High tensile bolt
M10
M8
(S)
Fastening time
Fastening torque
Proper fastening torque
M10
M8
008825
Hold the tool firmly and place the point of the driver bit in
the screw head. Apply forward pressure to the tool to the
extent that the bit will not slip off the screw and turn the
tool on to start operation.
NOTE:
•
Use the proper bit for the head of the screw/bolt
that you wish to use.
•
When fastening screw M8 or smaller, carefully
adjust pressure on the switch trigger so that the
screw is not damaged.
•
Hold the tool pointed straight at the screw.
•
If you tighten the screw for a time longer than
shown in the figures, the screw or the point of the
driver bit may be overstressed, stripped, damaged,
etc. Before starting your job, always perform a test
operation to determine the proper fastening time
for your screw.
The fastening torque is affected by a wide variety of
factors including the following. After fastening, always
check the torque with a torque wrench.
1. When the battery cartridge is discharged almost
completely, voltage will drop and the fastening
torque will be reduced.
2. Driver bit or socket bit
Failure to use the correct size driver bit or socket
bit will cause a reduction in the fastening torque.
3. Bolt
•
Even though the torque coefficient and the
class of bolt are the same, the proper
fastening torque will differ according to the
diameter of bolt.
•
Even though the diameters of bolts are the
same, the proper fastening torque will differ
according to the torque coefficient, the class of
bolt and the bolt length.
4. The manner of holding the tool or the material of
driving position to be fastened will affect the
torque.
5. Operating the tool at low speed will cause a
reduction in the fastening torque.
Using holster
CAUTION:
•
Do not use for tools such as a drill with a bit
installed on them.
•
Turn off a tool and wait until it comes to a complete
stop before placing in the holster.
Be sure to close the holster securely so that it
holds the tool firmly.
Thread a waist belt or similar through holster holder.
Put the tool in the holster and lock it with the holster
button.
Fig.9
Fig.10
Two bits can be retained at the front of holster.
Fig.11
MAINTENANCE
CAUTION:
•
Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
ACCESSORIES
CAUTION:
•
These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
