NOTE: See Connecting the Player, on page 10, for detailed information about
making connections.
Main Power Switch: This mechanical switch turns the BdT 3/BdT 30’s power
supply on or off. After you have made and verified all connections (see Connecting
the Player, on page 10), set this switch to the “On” position. If you will not be using
the player for an extended period of time, you can set this switch to the “Off” position
to save energy.
Power Cord Connector: After you have made and verified all other connections,
plug the supplied Ac power cord into this input and into an unswitched Ac outlet.
Network Connector: To be able to use the Bd-live feature, connect this port to
your local area network (lAN) using a cat. 5/cat. 5e/RJ45 network cable. see
BD-Live Interactivity, on page 15, for more information.
Coaxial Digital Output Connector: connect this output to the coaxial digital input
of your audio/video receiver or surround-sound processor. NOTe: If your audio/video
receiver or surround-sound processor has an hdMI connection, we recommend
using it for superior audio quality.
Analog Audio Output Connectors: connect these outputs to your audio/video
receiver’s, surround-sound processor’s or analog recorder’s analog audio inputs.
Composite Video Output Connector: connect this output to your Tv’s or audio/
video receiver’s composite video input. NOTe: If your Tv or audio/video receiver has
an hdMI connection, we recommend using it for superior video quality.
HDMI Output Connector: connect the BdT player’s hdMI Output connector to the
hdMI input on your Tv, audio/video receiver or surround-sound processor. The hdMI
cable transmits both video and audio, so if you’re connecting it directly to the Tv
and are connecting the BdT 3/BdT 30’s coaxial digital Output connector to a home
theater audio system, we recommend that you disable the BdT 3/BdT 30’s hdMI
Audio Out to take full advantage of the home theater audio system’s superior audio
performance. see Audio Settings: Audio Output, on page 13, for more information.
IMPORTANT: your BdT 3/BdT 30 is in compliance with hdcP (high-definition copy
Protection). your Tv must also be hdcP-compliant to be used with the player’s hdMI
output. for the best results, we do not recommend hdMI connections in excess
of ten feet without a repeater. If your Tv has a dvI input, you may use an optional
hdMI-to-dvI cable or adapter for the video connection to the Tv. (The dvI connection
is video-only.)
Fan Vents: The BdT 3/BdT 30 has a built-in fan to provide cooling air. To insure
proper operation, make sure that these vents are not blocked.
Remote Control Functions
Home
Button
Settings
Button
Resolution
Button
Subtitle
Button
Cursor
Buttons
Next/Step
Button
Thumbnail
Button
Angle
Button
Prev/Step
Button
Search/Slow
Reverse Button
Bookmark
Button
A–B Button
Play
Button
Power Off
Button
Power On
Button
Audio Button
Options Button
Find Button
PIP Button
Search/Slow
Forward Button
Popup Menu
Button
Top Menu
Button
Zoom Button
Numeric Buttons
Repeat Button
Pause Button
Exit Button
Display Button
Program Button
Clear Button Dimmer Button
OK Button
Stop Button
Open/Close
Button
Options Button
Power On Button
Repeat Button
stop Button
exit Button
Prev/step
Button
Ok Button
search/slow
Reverse Button
dimmer Button
Bookmark
Button
Program Button
A-B Button
Angle
Button
clear Button
find Button
Zoom Button
home
Button
Next/step
Button
PIP Button
Popup Menu
Button
Audio Button
Power Off
Button
Open/close
Button
Pause Button
display Button
settings
Button
search/slow
forward Button
subtitle
Button
Resolution
Button
Play
Button
cursor
Buttons
Thumbnail
Button
Top Menu
Button
Numeric Buttons
8
BDT 3/BDT 30
Rear-Panel Connectors/Remote Control Functions
Power cord
connector
hdMI Output
connector
Analog Audio Output
connectors
Main Power
switch
Network
connector
fan
vents

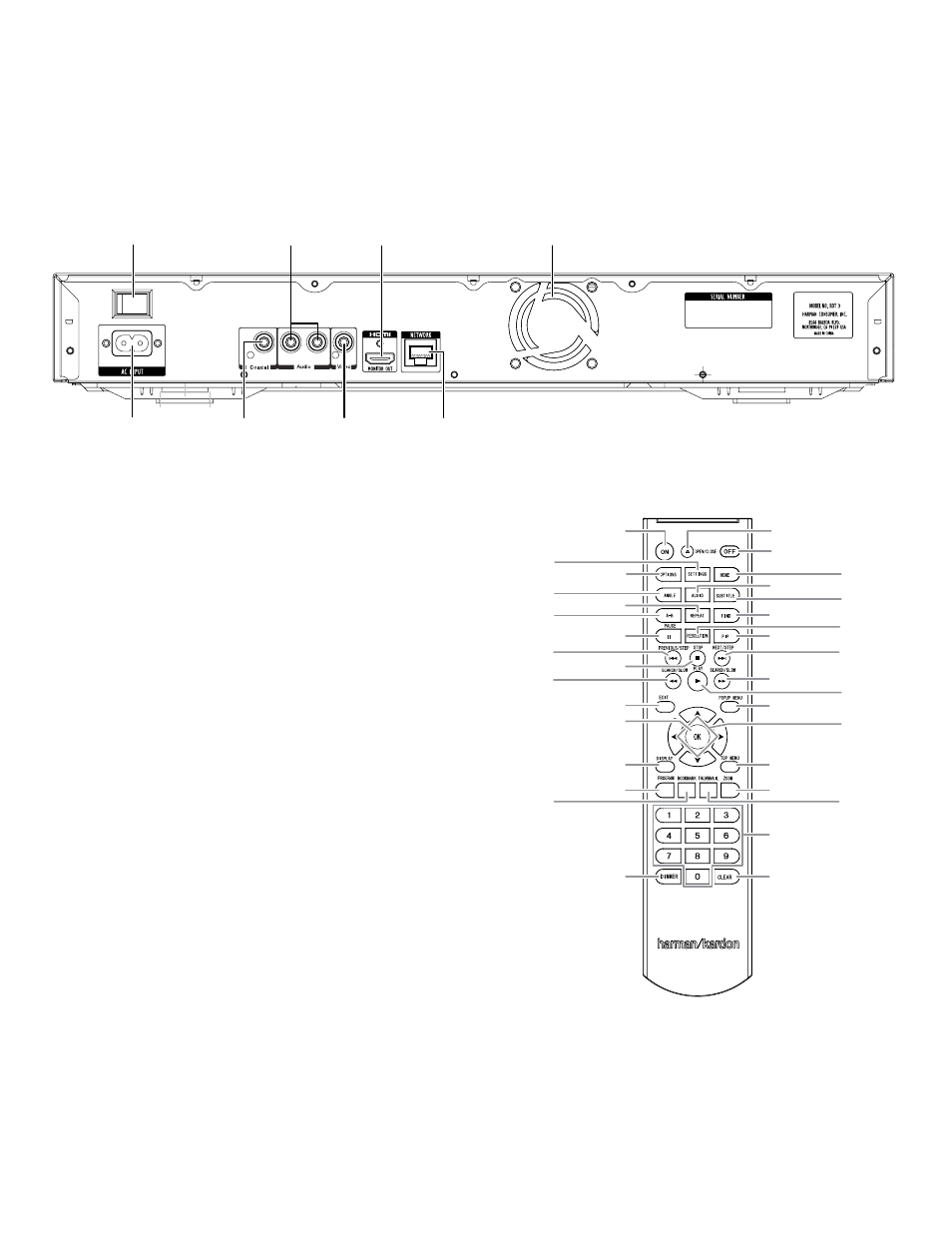

Rear-Panel Connectors
