7
Installation/Connection
Connection

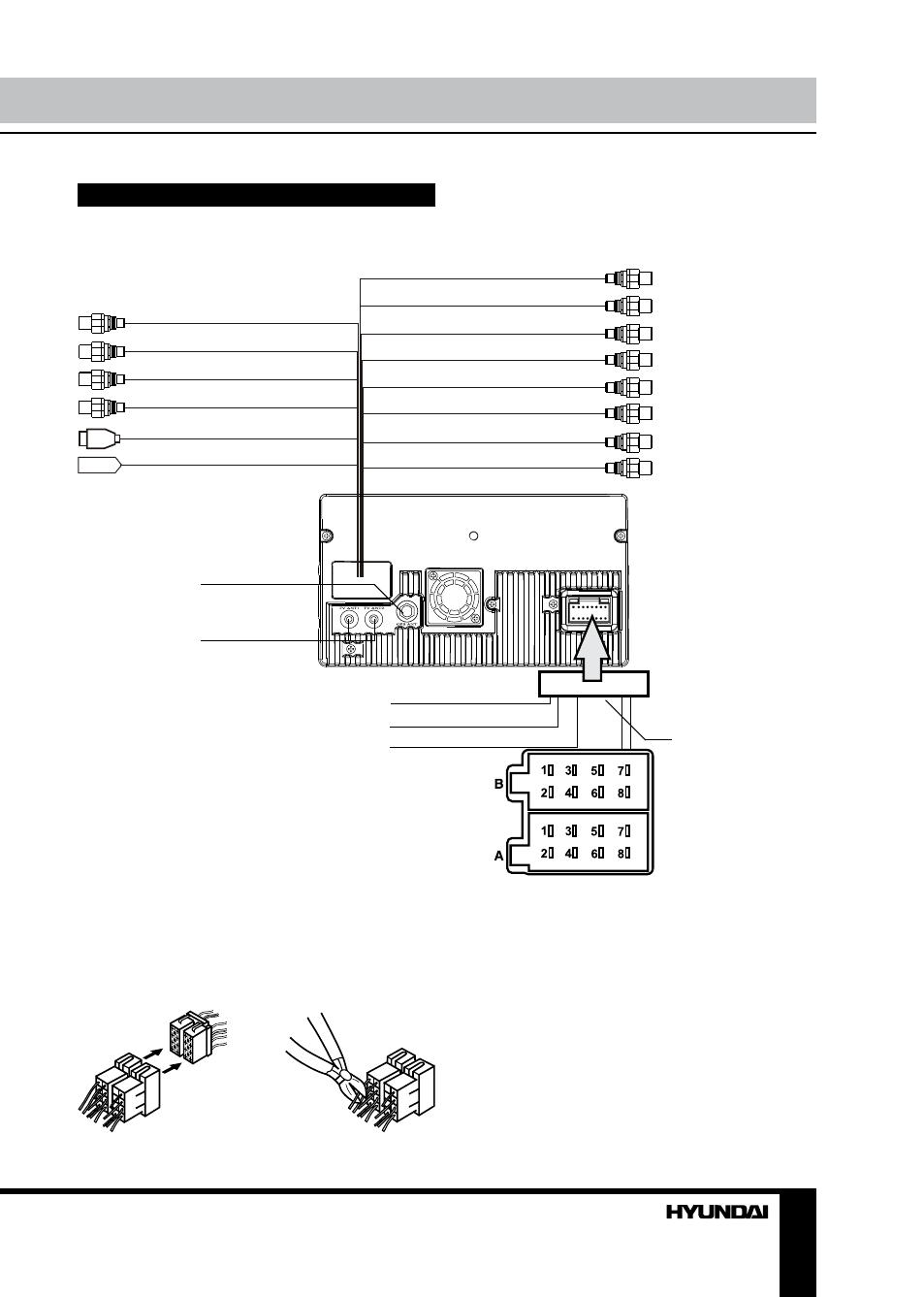

Connection diagram
Parking (brown)
Lamp in (pink)
ISO connector
Reverse (orange)
TV antenna
GPS antenna
(option)
Subwoofer
Rear monitor 2
Rear monitor 1
Rear zone out 2/R
Rear zone out 1/R
Rear zone out 2/L
Rear zone out 1/L
Front out R/L
Rear out R/L
Light grey line with
yellow head
Light grey line with
yellow head
Light grey line with
red head
Light grey line with
red head
Light grey line with
white head
Light grey line with
white head
Dark grey line with red
and white head
Dark grey line with red
and white head
Brown line with yellow
head
Brown line with brown
head
Black line with yellow
head
Black line with red and
white head
Black
Black
Camera IN
Video IN
AUX IN R/L
USB
Antenna
12
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
1. 2.
