6 Connecting to a TV
Connect your PlayStation ® 2 console to the Euro-AV connector (SCART)
on the TV using the Euro-AV connector plug and AV Cable making sure
you match the colour-coded plugs of the AV Cable to the matching jacks
of the connector plug.
After connecting
Set your TV to the appropriate video input mode. Refer to the Instruction
Manual of your TV.
Picture quality varies depending on the type of cable used. Use the
information below to determine the best connection method.
If you use a cable other than the supplied AV cable, refer to the instructions
supplied with the cable.

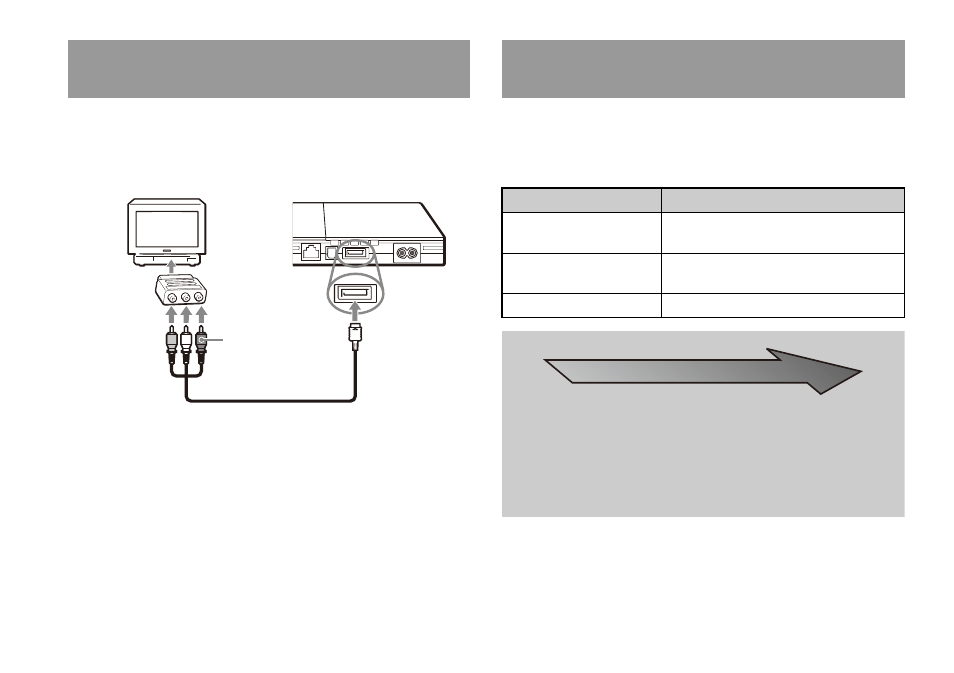

Connecting to a TV with a Euro-AV connector
using the Euro-AV connector plug
To Euro-AV
connector
To AV MULTI
OUT connector
AV Cable
Console rear
Euro-AV
connector plug
When using a cable other than the supplied AV
cable
TV Cable type
A TV with component video
input connectors Component AV Cable (SCPH-10490)
A TV with Euro-AV (SCART)
connector Euro-AV Cable (SCPH-10142)
A TV with S VIDEO inputs S VIDEO Cable (SCPH-10480)
Picture quality scale
High quality
x AV Cable (supplied) x S VIDEO Cable x Component AV Cable
This scale is intended only as a reference. Depending on the product or
condition of your TV, the picture quality may be different.
When using the Euro-AV Cable, picture quality may vary depending on your
TV's AV connection.
For optimum picture quality, connect your Euro-AV cable to an RGB-
compatible socket on your TV. Refer to the instructions supplied with your TV
for details.
