РУССКИЙ
Руководство пользователя и инструкция по установке
H-SS71 Автомобильная охранная система
9
О включении тревоги пульт управления сообщит индивидуальной для каждой зоны охраны мелодией и/
или включением виброзвонка. На дисплее пульта включится подсветка, и замигает пиктограмма зоны выз
вавшей включение тревоги.

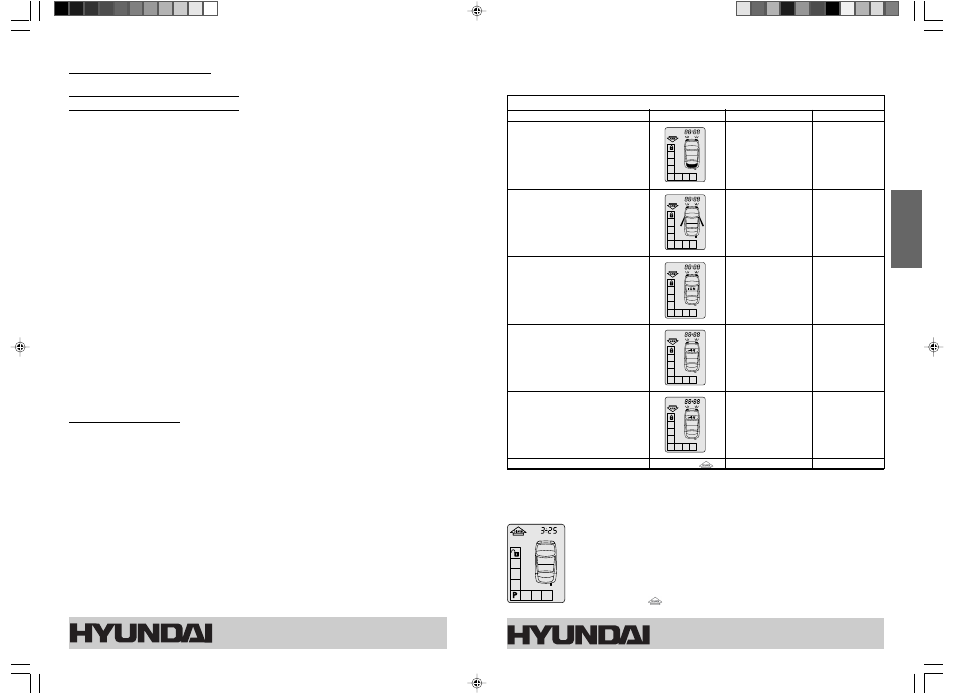

Индикация тревоги
Событие
Пиктограмма
Звуковое подтверждение
Вибросигнал
Открыт багажник
Мелодия 1
1раз/5 сек.
Открыта дверь
Мелодия 2
1раз/5 сек.
Включено зажигание
Мелодия 3
1раз/5 сек.
Предварительная зона датчика
2 тональный
1раз
Основная зона датчика
Мелодия 4
1раз/5 сек.
Несанкционированное снятие с охраны
Мигает знак
Мелодия 5
Снятие с охраны.
Для снятия сигнализации с охраны нажмите кнопку 2 пульта управления, сирена подаст 3 звуковых
сигнала, и дважды мигнут сигнальные фонари. Светодиод погаснет, дверные замки откроются (если авто
мобиль оборудован приводами блокировки замков). Если в период охраны включался
режим тревоги, то при снятии с охраны последуют четыре дополнительных звуковых сиг
нала.
Пульт управления подаст 2 звуковых сигнала, и на дисплее включится соответствую
щая индикация. Если Вы программно включили функцию предупреждения о снятии
с охраны, то вместо 2 звуковых сигналов включится 30 секундная мелодия. На дисплее
будет мигать символ
. Для отключения индикации нажмите любую кнопку пульта.
User’s Guide and Installation Manual
H-SS71 Car Alarm System
48
Installation Manual
General recommendations
Before you begin the installation, disconnect the “ “ terminal of the car battery.
1. The main unit is to be installed inside the passenger compartment, away from sources of moisture and heat.
The alarm system main unit includes a built in shock sensor, so the fitting position of the main unit should be
chosen to provide maximal efficient of the shock sensor operation.
2. The RF Base Station with antenna is to be mounted on the windscreen as high as possible to reach maximal
communication range between transceiver and vehicle.
3. The siren is installed in the engine compartment or in another location inaccessible for a thief, with the megaphone
down or sideward. The location must be away from heat sources and protected from penetration of water. If
the siren has a back up battery, access to the service keyhole must be ensured.
4. The pin switches of the hood and trunk are mounted in locations protected from water and inaccessible when
the hood/trunk is closed.
5. All high power circuits should be fused for respective currents.
Kit Contents
Voltage
9…15V
Current Consumption
20 mA
RF Frequency
433,92 MHz
Working Temperature
40…+85
0
C
Maximal Allowable Current via the Relay Contacts:
Immobiliser Relay
20A
Indicators Relay
10A
Central Door Lock Relays
15A
System Programming
Remote Code Learning
The
H-SS71 has two transmitters in the standard kit, however the system can teach up to four transmitters
To increase a number of remote controls to control the alarm system fulfill the below procedure:
1. When the alarm system is disarmed enter the PIN Code:
a. Within 7 seconds switch the ignition on/off twice and then switch it on again.
b. The LED will be flashing quickly. After quick flashing the LED will flash in a rate of one flash per second.
c. Count a number of flashes equal to your PIN Code and switch the ignition off.
d. If the PIN Code is correct the alarm system with double beep will confirm the Remote Code learning entered.
2. Press button 1 of each remote control you want to program to the system. One siren beep will confirm the
transmitter code is learnt. When you are programming a two way transmitter please wait a few seconds after
