Подключение входа концевика двери
Вход концевика двери автомобильных сигнализаций АМЕ ММ 2 имеет программируемую полярность
(заводская установка полярности – отрицательная), и поэтому подвязка входа к плюсу внутри блока отсут
ствует, а к минусу он подвязан через резистор 100К. Как правило, при подключении концевика к цепи
управления салонным светом плюс или минус, поступающий на вход концевика двери через лампу салон
ного света, обеспечивает достаточный уровень подпорного напряжения для нормальной работы входа. Если
же уровень подпорного напряжения недостаточен, используйте резистор 10К из комплекта сигнализации
для внешней подвязки входа к плюсу или минусу соответственно.

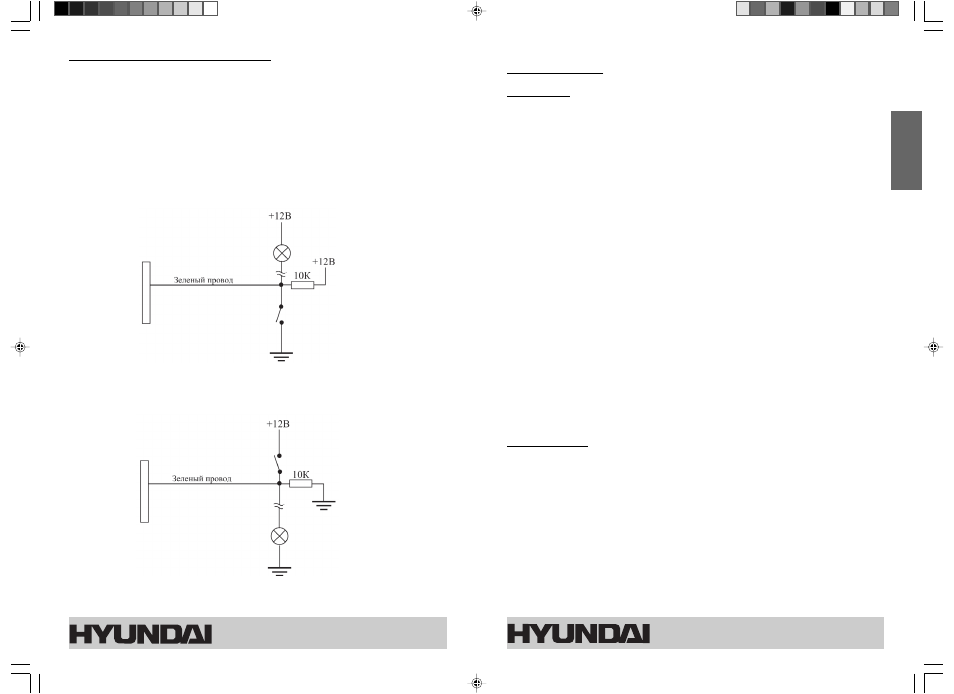

Подключение входа концевика при выборе отрицательной полярности
Подключение входа концевика при выборе положительной полярности
ENGLISH
User’s Guide and Installation Manual
H-SS71 Car Alarm System
33
User’s Guide
Introduction
Thank you for purchasing our Car Alarm System.
H-SS71 is a modern car security system, designed and manufactured to ensure the highest level of security
for your car and provide you with a number of convenience features. Please carefully read this manual and follow its
instructions while using different features and functions of the
H-SS71.
We are not responsible for any injuries or damages resulting from your wrong use of our system.
Do not change the Installer’s Functions while using the alarm system. These functions are to be adjusted by
professional installation staff, and to tailor the alarm system for reliable and safety operation along with the different
equipment installed on your car.
If you find any problems while using the alarm system, contact your installation shop for repairing or re adjusting.
Do not try to repair the alarm system yourself.
After reading this Guide you will be able to make good use of your alarm system and get as full as possible
protection for your car.
The H-SS71 monitors the status of the doors, hood and trunk, two stage shock sensor and the optional
e.g. space disturbance sensor (if installed). A power siren and light indicators will warn you about any intrusion
into your car.
Enhanced anti theft facilities are ensured by a powerful built in blocking relay with normally opened contacts
and an additional universal output available to connect an extra blocking relay with normally closed contacts.
The Quick Auto Rearming function and programmable disarm authorization procedure are included to enhance
the protective abilities of the alarm system.
Variable functions of the inputs and outputs add flexibility to the installation procedure and daily usage of the
alarm system; optional sensors and other equipment can be connected. Built in relays are used to connect
high current circuits.
The alarm system allows adjustment through programming a number of features to tailor the system to
particular car and extra installed equipment.
The self diagnostics feature helps to identify and quickly remove all possible faults.
Remote Control
Two Way Hand Held LCD Transceiver
3 button LCD Transceiver. The Transceiver has two buttons for controlling the alarm system and one button
(Button 3) for configuring the display. The transceiver radio remote control incorporates random encryption technology
so that the control code is changed each time the transmitter is used. Once the transceiver receives a status
change or alarm triggered signal from the main alarm unit the LCD indication will change accordingly and audible/
vibration warning will turn on to warn you the alarm is triggered.
The Transceiver uses 1,5V Battery (Type AAA), which lasts for 2 6 months dependent upon the Transceiver
usage rate.
