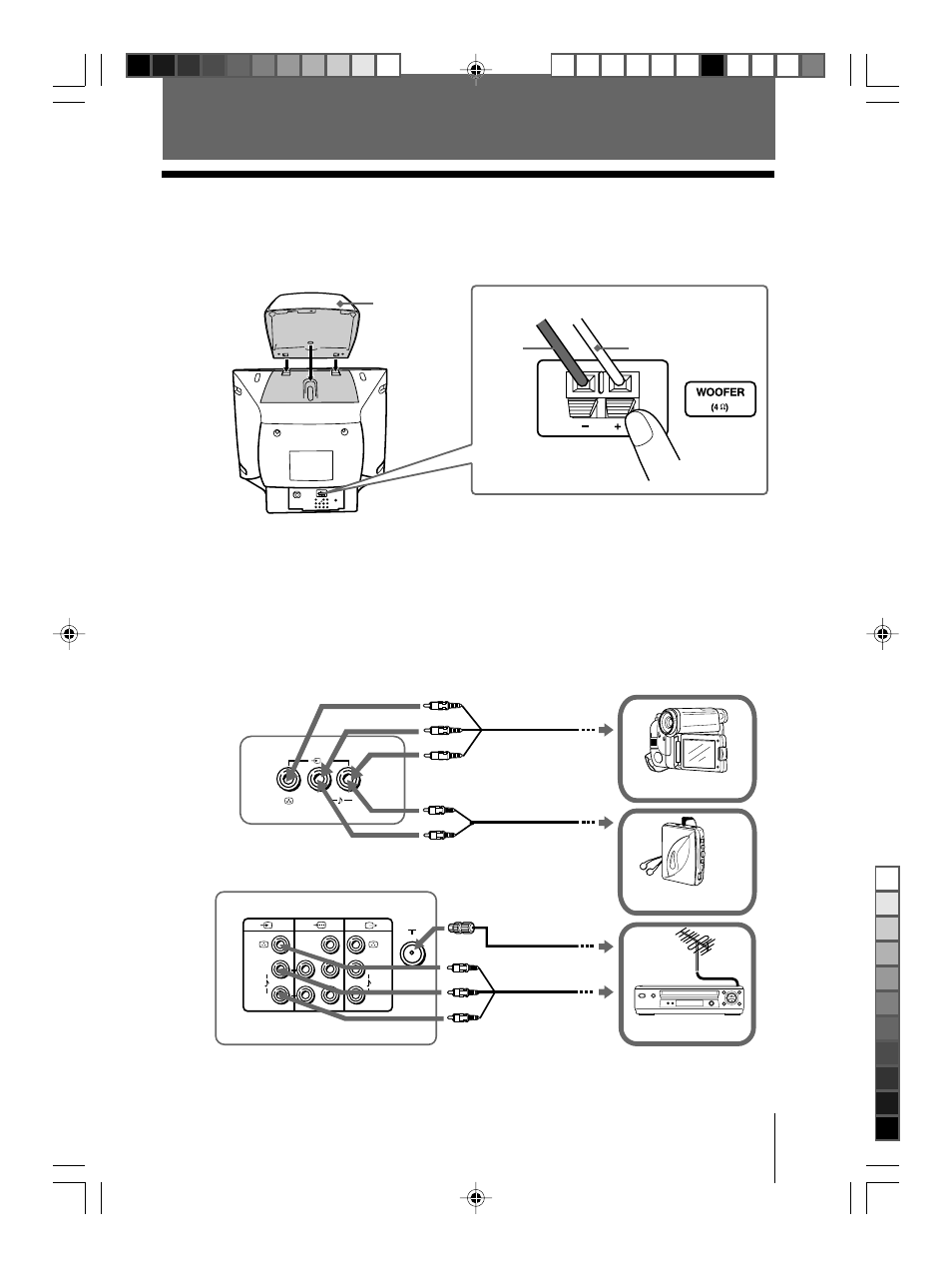

x Connecting optional components
Connecting to the video input terminal ( t )
TV front panel
Walkman
L R (MONO)
2
L
R R
1
L
Y
C B
C R
(MONO) (MONO)
Audio cable
(not supplied)
Antenna cable
(not supplied)
VCR
TV rear panel
Audio/Video cable
(not supplied)
Camcorder
Note
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 23).
x Connecting the 3D WOOFER
B
KV-HW212M95 only
You can enjoy high quality sound by connecting the 3D WOOFER as follows:
Notes
• Connect only the supplied 3D WOOFER; otherwise your TV may malfunction.
• Unplug your TV from the wall outlet when connecting the 3D WOOFER.
• To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D
WOOFER wire strands stick out, making contact with the neighbouring 3D WOOFER terminal.
Black
wire
Red wire
Step 1 Step 2
3D WOOFER
Audio/Video cable
(not supplied)
