Connecting to the monitor output terminal ( t ) – Инструкция по эксплуатации Sony KV-SW292
Страница 23
23
Additional Information
Sony KV-SW292M91 Group Q9 (
GB,
RU)_2-655-047-11 (1)
TV rear panel
Audio system
1
3
R
L
Y
C
B
C
R
VCR
Audio/Video cable
(not supplied)

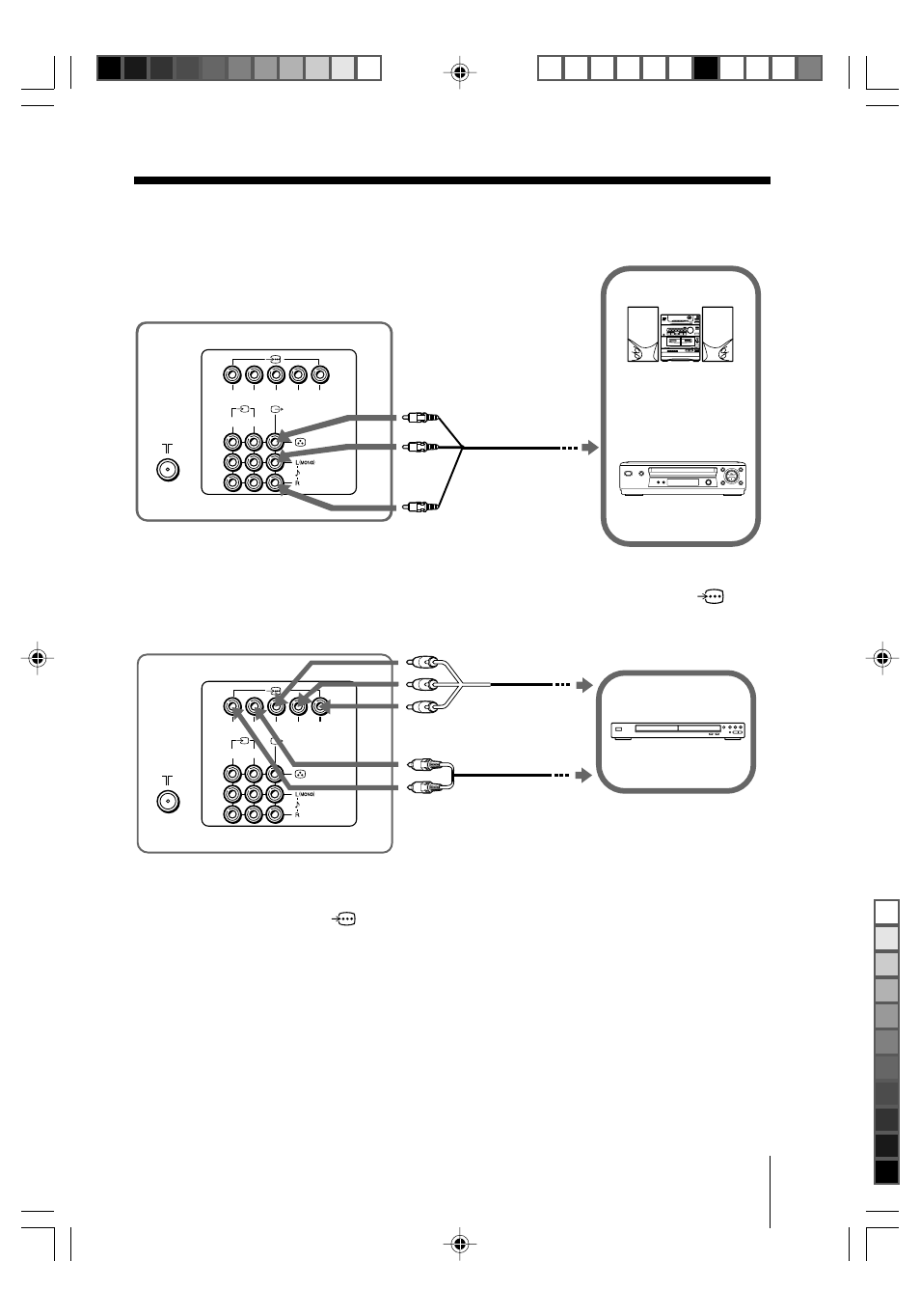

Connecting to the monitor output terminal ( T )
DVD player
TV rear panel
Component
video cable
(not supplied)
Audio cable
(not supplied)
1
3
R
L
Y
C
B
C
R
Connecting to the component video input terminal (
)
Notes
• If your DVD player can output interlace and progressive mode signals, select the interlace
output when connecting to
(component video input) on your TV. Your TV can receive
either 525i/60Hz or 625i/50Hz interlace signals.
• The component video terminals on your DVD player are sometimes labeled Y/C
B
/C
R,
Y/P
B
/
P
R,
Y/C
b
/C
r
or Y/B-Y/R-Y.
• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not
be output properly. This does not indicate a malfunction.
