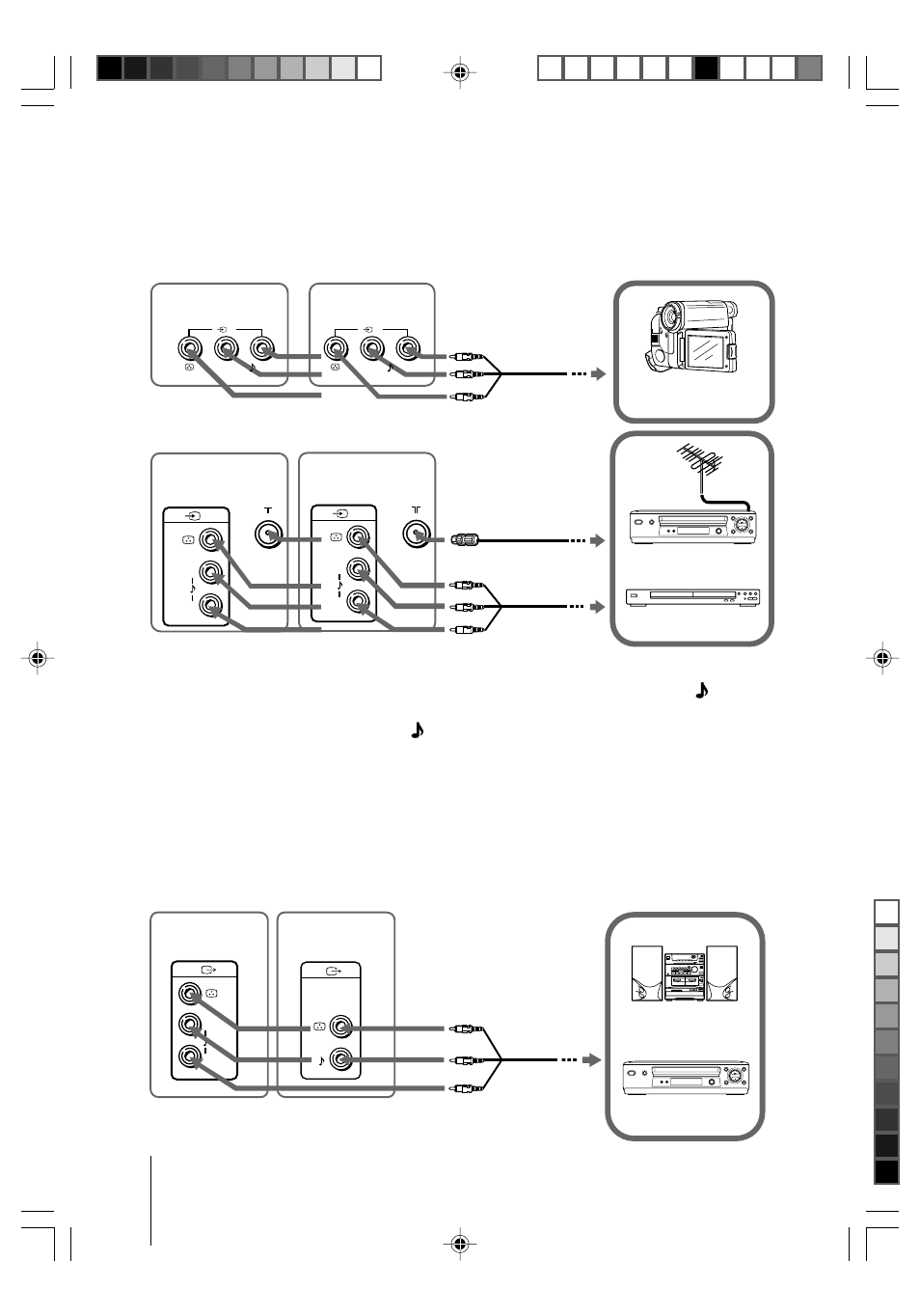

Connecting optional components
Connecting to the video input terminal ( t )
* Sound Mix Terminal (KV-BZ21M71/BZ14M71 only)
You can connect the audio L and R jacks from your AV equipment to both (MONO)
jacks on the TV to enjoy mixed left and right sound. If you do not prefer the mixed
sound, disconnect either one of the (MONO) jacks.
Note
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 17).
TV rear panel
Audio system
VCR
Audio/Video
cable
(not supplied)
Connecting to the monitor output terminal ( T )
TV front panel
Antenna cable
(not supplied)
VCR
TV rear panel
Audio/Video cable
(not supplied)
Audio/Video cable
(not supplied)
Camcorder
KV-BZ21M81
KV-BZ21M71/
BZ14M71*
KV-BZ21M81
KV-BZ21M71/
BZ14M71*
KV-BZ21M81
KV-BZ21M71/
BZ14M71
R
L
(MONO)
2
(MONO)—
—(MONO)
2
L(MONO)—
—R
1
(MONO)
(MONO)
1
L
R
(MONO)
DVD player
