6
Installation/Connection
Connection

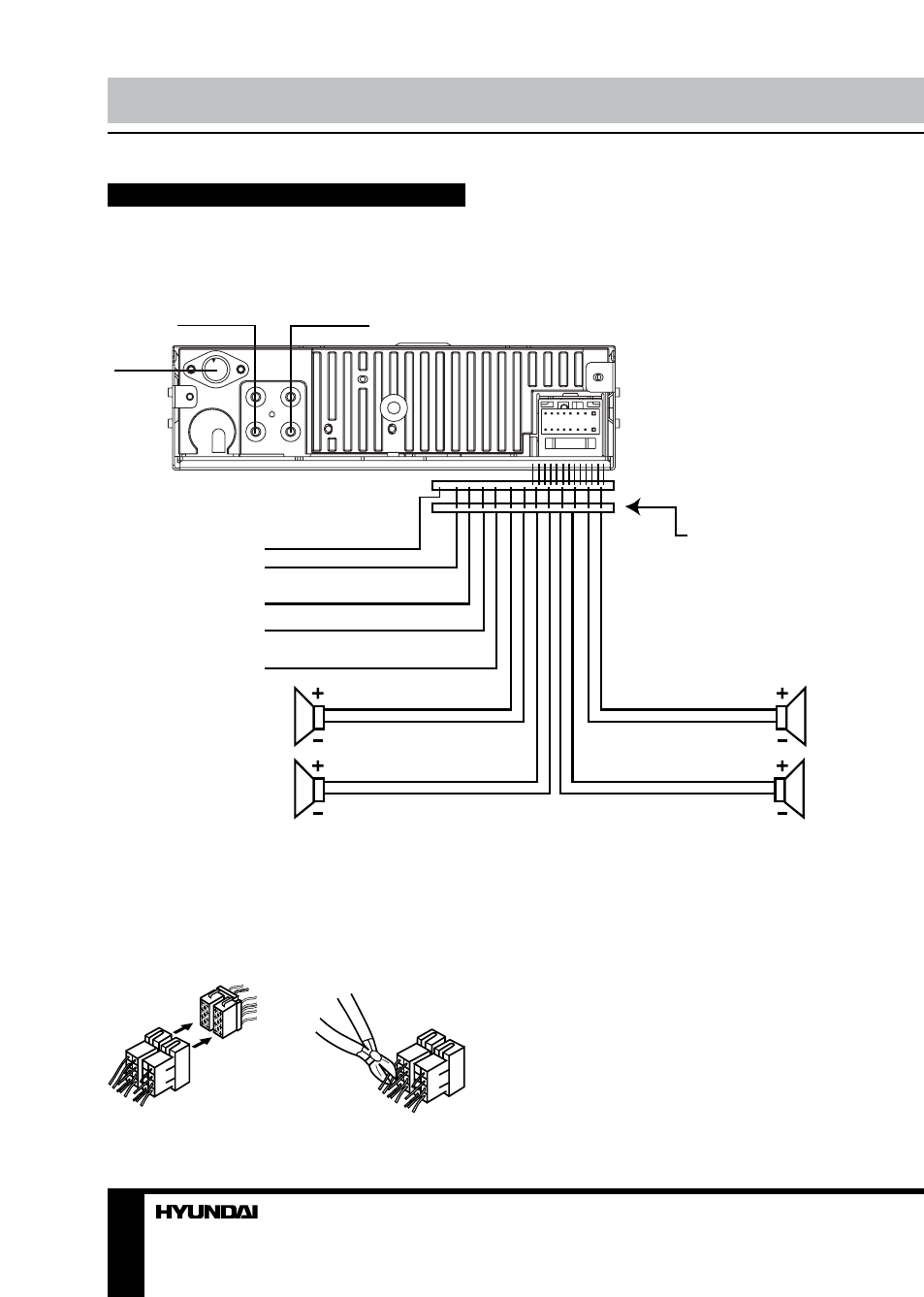

Connection diagram
ISO CONNECTOR
ANTENNA
SOCKET
ORANGE
TEL.MUTE
ANTENNA CONTROL
GROUND
POWER B+
FRONT
4 ohm
FRONT
4 ohm
REAR
4 ohm
RIGHT
SPEAK
REAR
4 ohm
LEFT
SPEAKER
TO CAR BATTERY
MEMORY B+
BLUE
YELLOW
BLACK
RED +12V
WHITE GREY
WHITE/BLACK GREY/BLACK
GREEN VIOLET
GREEN/BLACK VIOLET/BLACK
FRONT RCA CONNECTOR
LEFT = WHITE
RIGHT = RED
REAR RCA CONNECTOR
LEFT = WHITE
RIGHT = RED
L
R
FUS E
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
