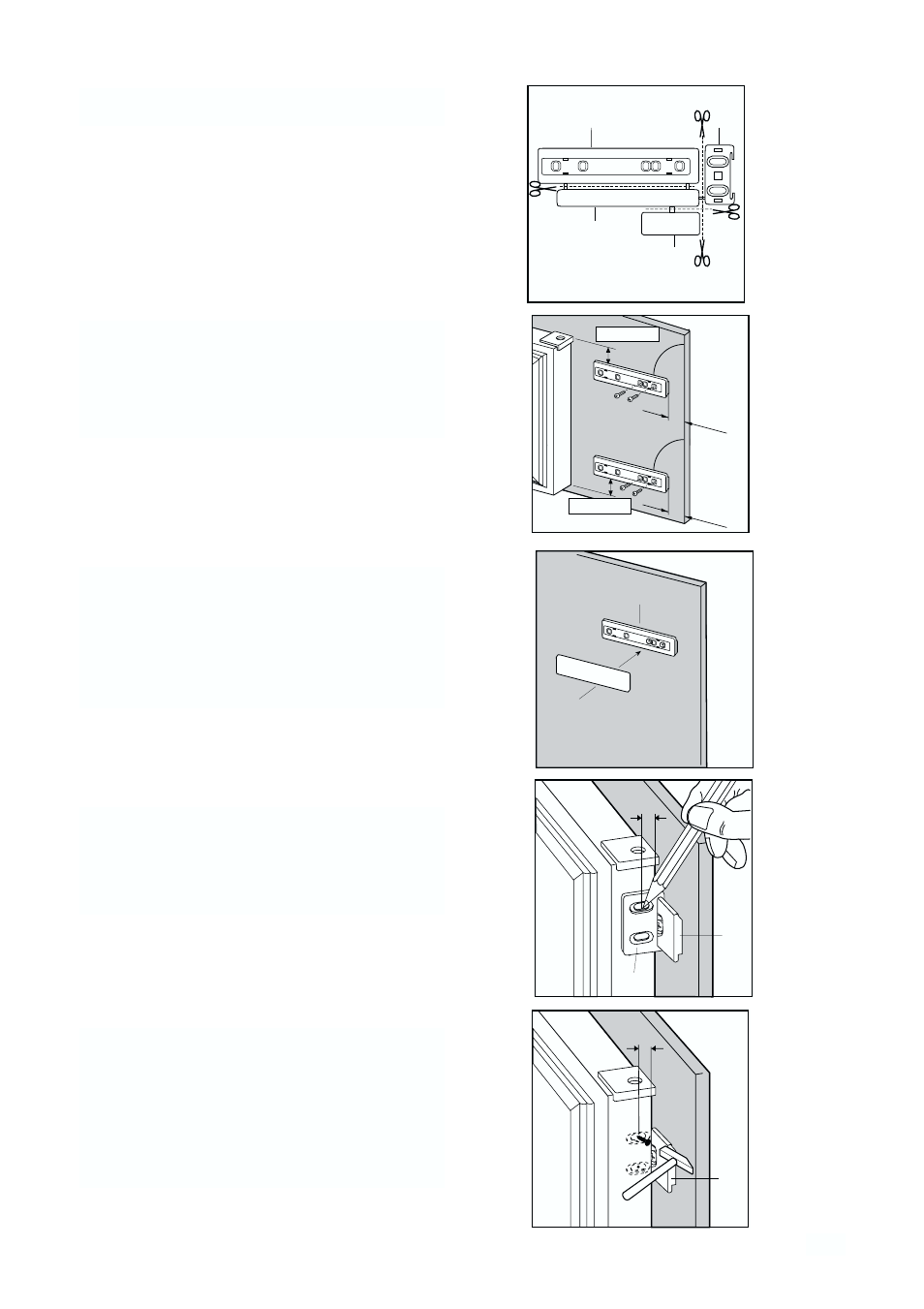

Place guide (Ha) on the inside part of the furniture
door, up and down as shown in the figure and mark
the position of external holes. After having drilled
holes, fix the guide with the screws supplied.
21 mm
21 mm
ca. 50 mm
90°
90°
ca. 50 mm
Fix cover (Hc) on guide (Ha) until it clips into place
PR33
Hc
Ha
PR167
Ha
Hb
8mm
Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure. .
Ha
8mm
K
Remove the brackets and mark a distance of 8 mm
from the outer edge of the door where the nail must
be fitted (K).
PR266
Ha Hb
Hc
Hd
Separate parts Ha, Hb, Hc, Hd as shown in the
figure.
