14

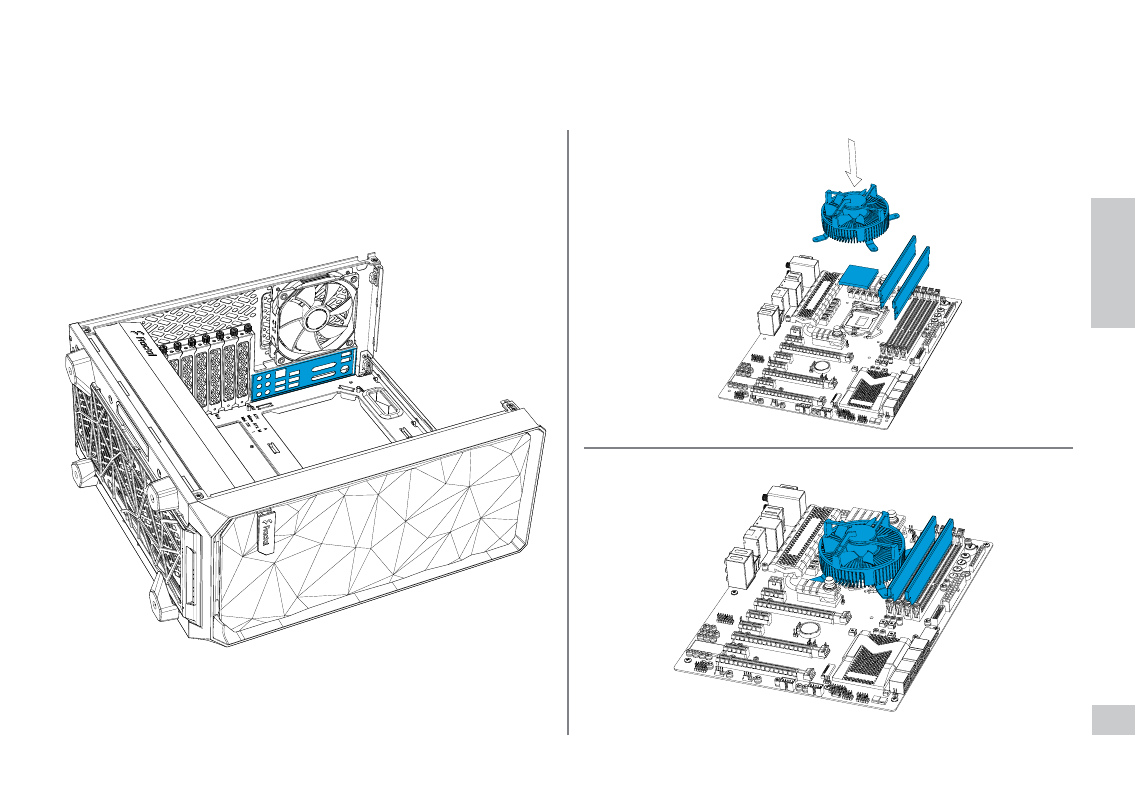

Prepare the Motherboard
Vorbereitung Hauptplatine / Préparer la carte mère / Prepare la placa base / Förbered moder-
kortet / Подготовьте материнскую плату / マザーボードの準備 / 准备主板 / 準備主機板
Install the I/O Shield
Installieren Sie die I/O Schild / installer le plaque d’E/S / Instale la protección de E/S / Instal-
lera I/O-plåten / Установите ввода / вывода пластину / I/O シールドの取り付け / 安装I/O 挡
板 / 安裝 I/O 擋板
I/O shield included with motherboard
1.
2.
B
uil
d
er
’s G
ui
d
e
