Cybex Free Weight 16250 Twin Tier Dumbbell Rack Owner’s Manual
Page 10
3
35.71±.25 1.54±.12
3 2
DECAL DETAIL
9
2
3
9
6
8
7
SEE DECAL DETAIL
SEE DECAL DETAIL
40X
40X
40X
SEE SERIAL & PATENT
DECAL DETAIL
1.00 ±.12
.50 ±.12
SERIAL
DECAL DETAIL
CENTER
ON TUBE
SERIAL NUMBER DECAL
SERIAL NUMBER DECAL
4X 1
10
1 4 16010-311 FOOT PAD
2 1 16250-200 W MAIN FRAME
3 2 3900-447 DECAL, CYBEX BLACK
3 2 3900-448 DECAL, CYBEX SILVER
4 1 51198 WARRANTY BOOK (NOT SHOWN)
5 1 CM000211 DECAL, PATENT PENDING
(REMOVED 7/6/09)
6 40 HN704901 LOCKNUT, .375-16 NYLON
7 40 JC700922 FHSCS .375-16 X 1.50
8 40 PP030200 DUMBBELL SADDLE
9 2 PP130004 INSERT, DOMED PLASTIC
10 1 11040-790 DECAL, MADE IN USA
ITEM QTY PART NO. DESCRIPTION

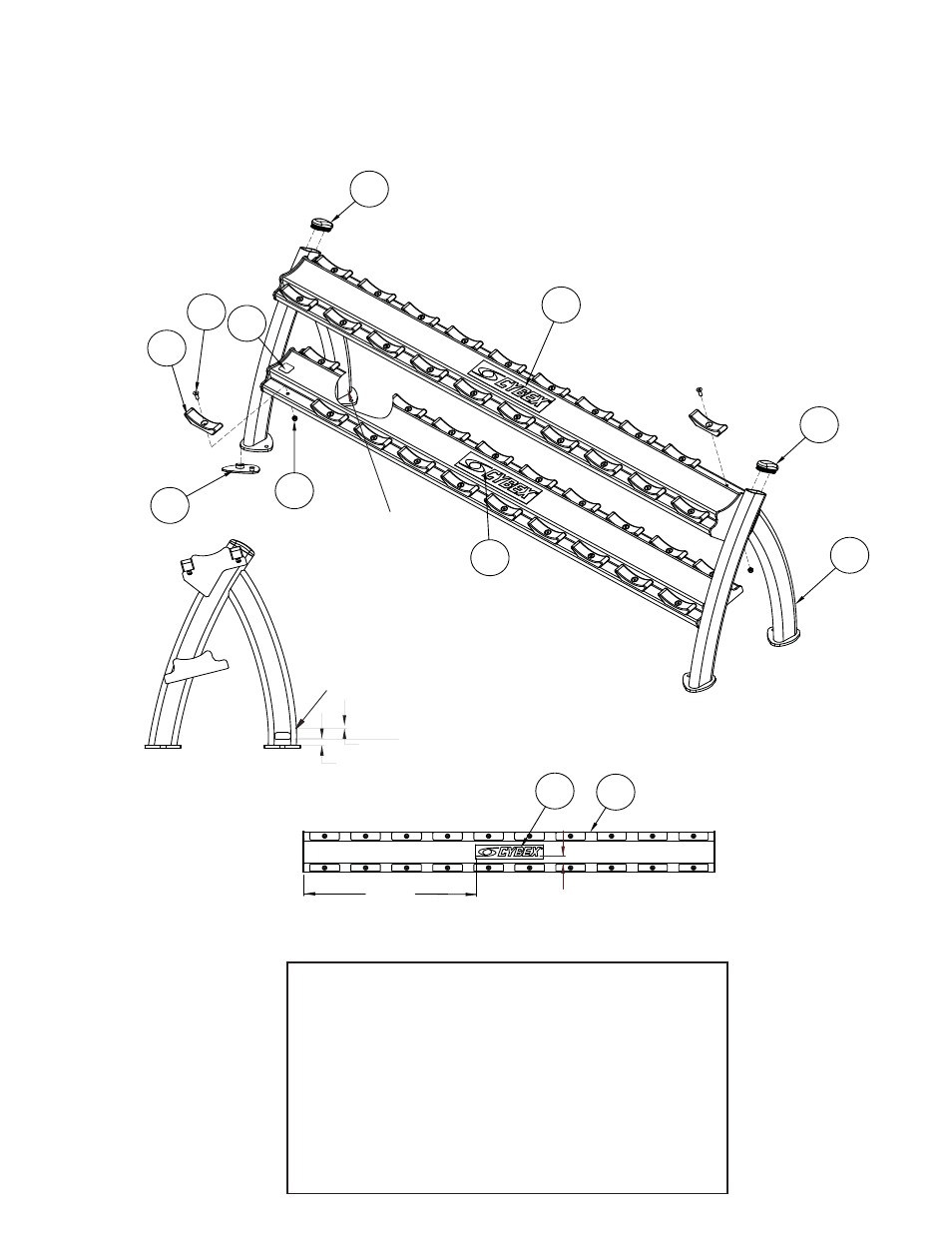

16250 MAIN ASSEMBLY DETAIL
