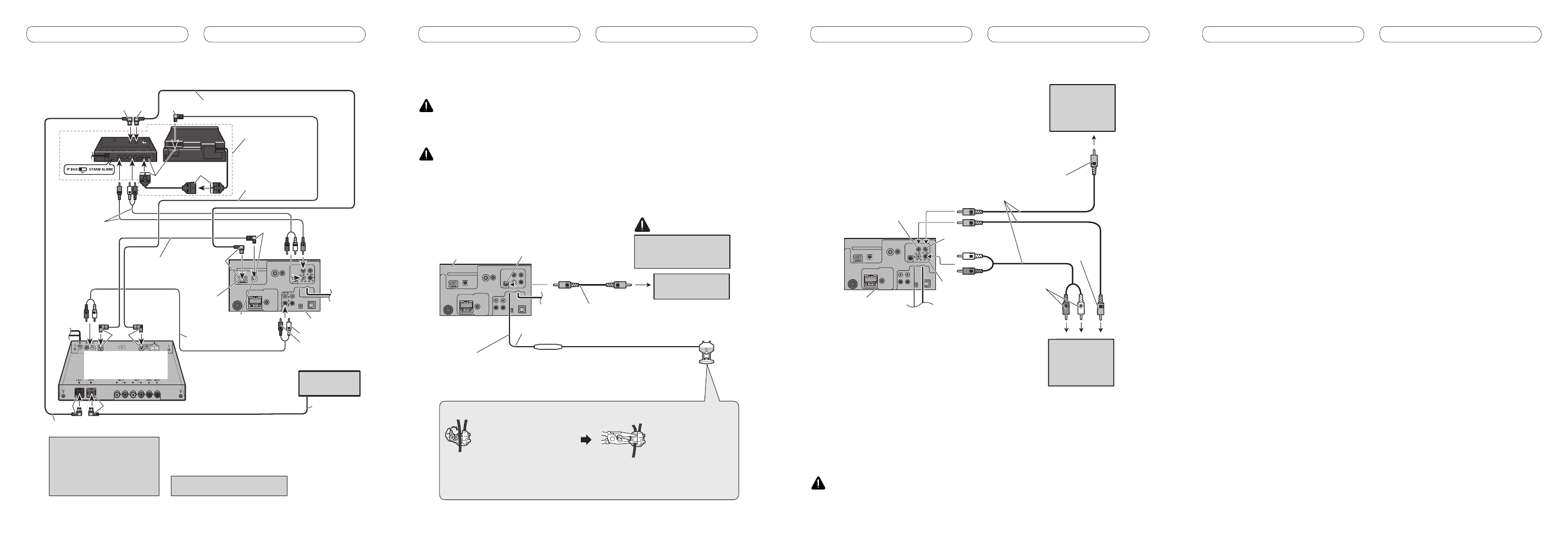

Connecting the units
When connecting with a rear view camera
When this product is used with a rear view camera, it is possible to automatically switch
from the video to rear view image when the gear shift is moved to REVERSE (R).
CAUTION
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• The rear view camera function is to be used as an aid for backing into a tight parking spot.
Do not use this function for entertainment purposes.
• Objects in the rear view may appear closer or more distant than they actually are.
RCA cable
(sold separately)
To video output
Rear view camera
Rear view camera input
This product
Violet/white
Of the two lead wires connected to the back lamp, connect the one
in which the voltage changes when the gear shift is in the
REVERSE (R) position. This connection enables the unit to
sense whether the car is moving forwards or backwards.
15 cm
Fuse resistor
Connection method
1. Clamp the lead. 2. Clamp firmly with
needle-nosed
pliers.
Note:
· It is necessary to set CAMERA POLARITY properly in SYSTEM MENU when
connecting the rear view camera.
You must use a camera
which outputs mirror
reversed images.
CAUTION
Connecting the units
When connecting with a multi-channel processor
Multi-channel processor
(e.g., DEQ-P6600)
(sold separately)
Black
Black
When you connect a separately sold
DVD player to the separetely sold
multi-channel processor, the optical
cable from DVD player must be
connected to the optical cable 2 input
(OPT. IN2) of the multi-channel
processor.
You can use only one video component
with this unit.
DVD player (e.g., XDV-P6)
(sold separately)
Optical output
(Black) This product
IP-BUS cable (supplied with
multi-channel processor)
Black Blue
Blue
IP-BUS cable
(supplied with DVD player)
Optical cable
(sold separately)
RCA cable (supplied with
multi-channel processor)
RCA cable
(supplied with DVD player)
Optical cable
(supplied with
multi-channel processor) Blue
IP-BUS input
(Blue)
Black
Multi-CD player
(sold separately)
IP-BUS cable
Black Black Blue
To RL
To RR
Connecting the units
When connecting the external video component and the display
External video
component (sold
separately)
Audio input
Display with RCA
input jacks (sold
separately)
To video input
To video output
To audio outputs
Video input
This product
Rear monitor output
RCA cables (sold separately)
• It is necessary to set AV INPUT to VIDEO in SYSTEM MENU when connecting the external
video component.
• It is necessary to set AV INPUT to S-DVD in SYSTEM MENU when connecting a multi-DVD
player.
When using a display connected to rear video output
This product’s rear video output is for connection of a display to enable passengers in the
rear seats to watch the DVD or Video CD.
WARNING
NEVER install the display in a location that enables the Driver to watch the DVD or
Video CD while driving.
