<CZR5183-A> <17> <CZR5183-A> <18> <CZR5183-A> <19> <CZR5183-A> <20>

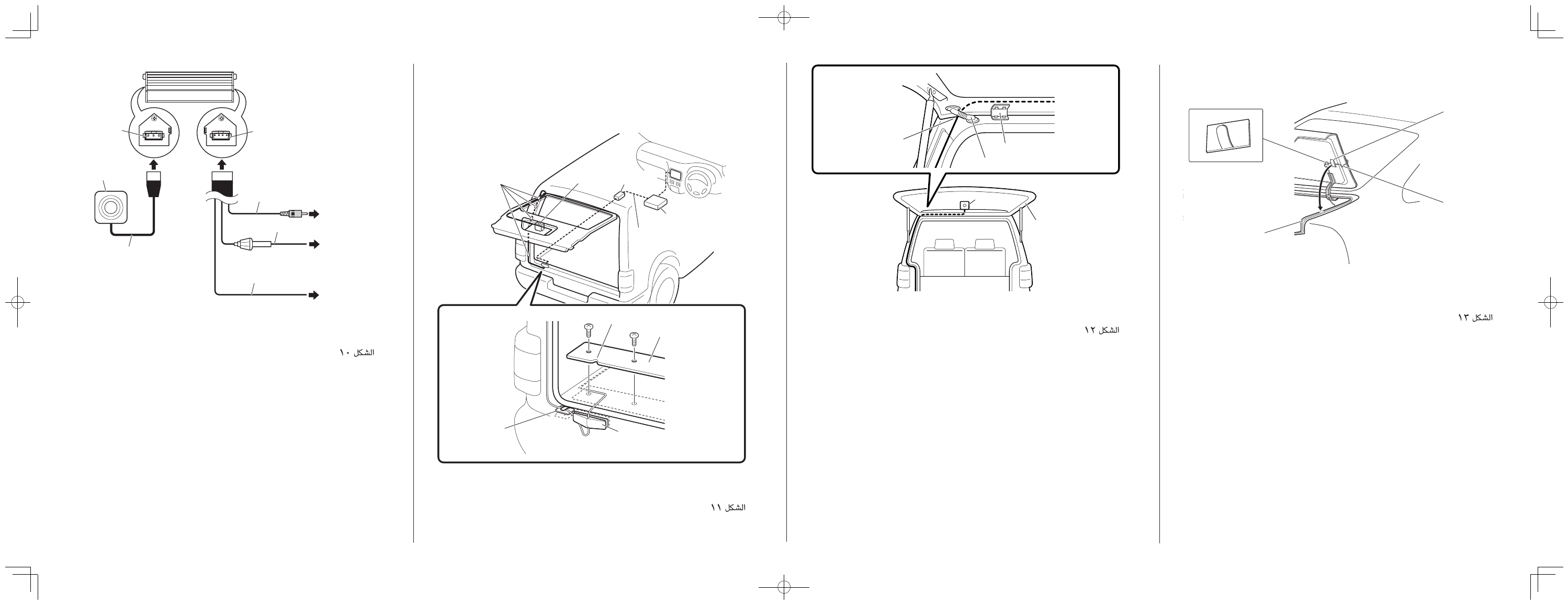

① Pull out from here
② Hinge
③ Harness cover
⑤ Hatch
④ Rear view
camera
Fig. 10
Рис. 10
圖 10
Fig. 11
Рис. 11
圖 11
Fig. 12
Рис. 12
圖 12
Fig. 13
Рис. 13
圖 13
① Power supply unit
③ RCA power supply cable
connector
② Rear view camera
connector
⑥ Red
⑤ RCA pin
⑧ Black
⑦ Fuse (1A) 3 m
3 m
④ Rear view camera
1.5 m
7 m
① Clamps
② Rear view
camera
④ Product with a video
input jack (Hideaway
unit etc.)
⑥ Made with a rasp etc.
⑦ Scuff plate
⑧ Clamp
⑨ Waterproof pad
Attach the waterproof pad
using double-sided tape.
③ RCA power
supply cable
⑤ Power supply
unit
② Waterproof pad
① Clamps
③ Rubber packing
④ Make a U-shaped loop in
the lead outside the rubber
packing to prevent rain-
water from flowing along
the lead into the interior
of the vehicle.
Attach the waterproof pad
using double-sided tape.
