Wiring schematic, Cut the yellow loop before plugging in the module, For automatic transmissions – Инструкция по эксплуатации Autostart AS-2272
Страница 4
1. (-) N/A
2. (-) AUX 1 output
3. (-) Parking lights
1. VIOLET/BLACK ..... (-) N/A
2. LIGHT BLUE .......... (-) Horn output only
3. WHITE/BLACK ....... ( PARKING LIGHTS
-)
12- GRAY/BLACK ................. (+) Glow plug input
11- GREEN ............................. (-) NEG. Door input
10- BLUE/BLACK ................... (-) GROUND when running
9- WHITE/BLUE ..................... (-) EXT. TRIGGER input
8- BLACK/WHITE .................. (-) Parking Brake input
7- ORANGE ............................ (-) Starter kill output
6- VIOLET ............................... (+) POS. Door input
5- LIGHT GREEN/BLACK ...... (-) DISARM
4- LIGHT GREEN/WHITE ....... (-) REARM
3- BLUE .................................. (-) UNLOCK
2- LIGHT GREEN ................... (-) LOCK
1- RED/WHITE ....................... (-) TRUNK
Loop
LOOP
V1.00 MO - May 28, 2008
Jumpers for second outputs
(Starter, Ignition, Accessories)
Starter 2 Jumper
Ignition 2 Jumper
Accessories 2 Jumper
INV-200 Connector
INV-200 CONNECTOR
(Door Lock pulse
inverter)
RS-232 Port
RS-232 port
Bypass/GPS port
Bypass/GPS port
Pager port
Pager port
REAR VIEW OF MODULE
PUSH-BUTTON
VALET SWITCH
(Optional on
certain models)
PINK/WHITE ..... 5
th
RELAY
VIOLET
.
....
..
..
..
..
..
.
STARTER
ORANGE ...ACCESSORIES
(Heater Blower Motor)
PINK ................... IGNITION
RED ............+12V (Battery)
RED ..............12V (Battery)
30 A Fuse
30 A Fuse
1- BLACK ........................ GROUND (-)
2- VIOLET/WHITE .............. TACH (AC)
3- GRAY ................. HOOD SWITCH (-)
4- BROWN .......... BRAKE SWITCH (+)
5- WHITE ........... PARKING LIGHTS (+)
15 A Fuse
85
87
(Solenoid Side)
86
30
STARTER WIRE
(Key Side)
IGNITION (+)
N/A
Start Kill Output (-)
87
A
STARTER WIRE
Optional Starter Kill Relay
N/A
TACH Threshold: HIGH
TACH Threshold: NORMAL
Programming
Assistance Button
(Hood Switch
Interrupt)
SIDE VIEW OF MODULE
NA

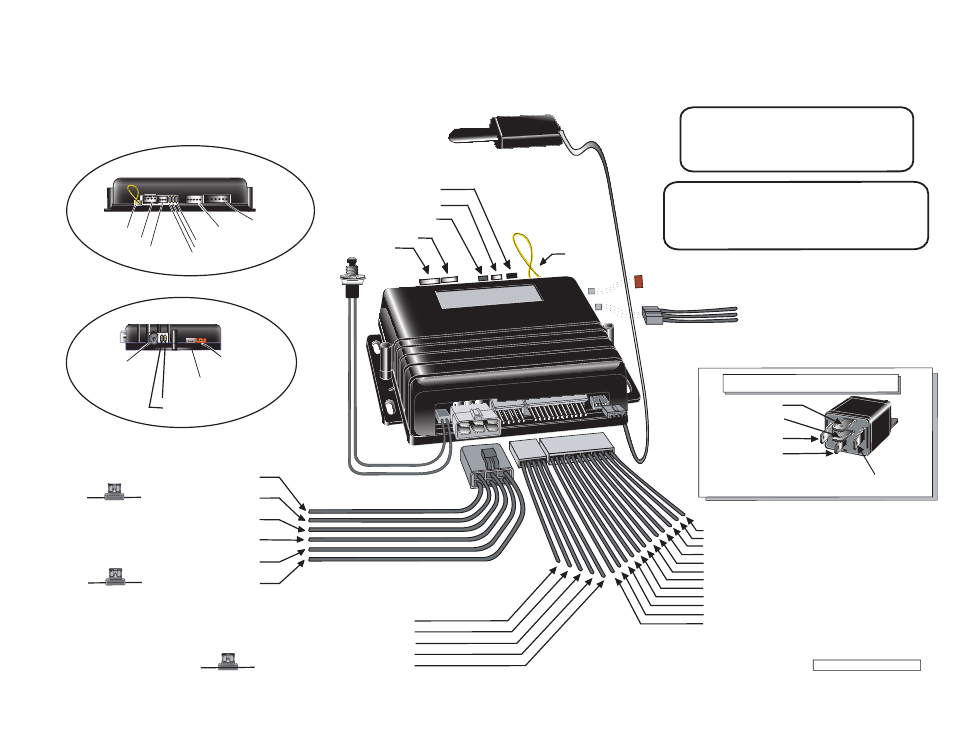

WIRING SCHEMATIC
:
For Automatic Transmissions
Cut the yellow loop before plugging
in the module.
Note: This product supports the Trilogix bypass.
To program the Trilogix bypass to the Autostart remote
starter, please ensure that the Trilogix bypass and the
Autostart starter are powered up simultaneously.
