3
➀ ➁ ➂ ➃ *OPTION

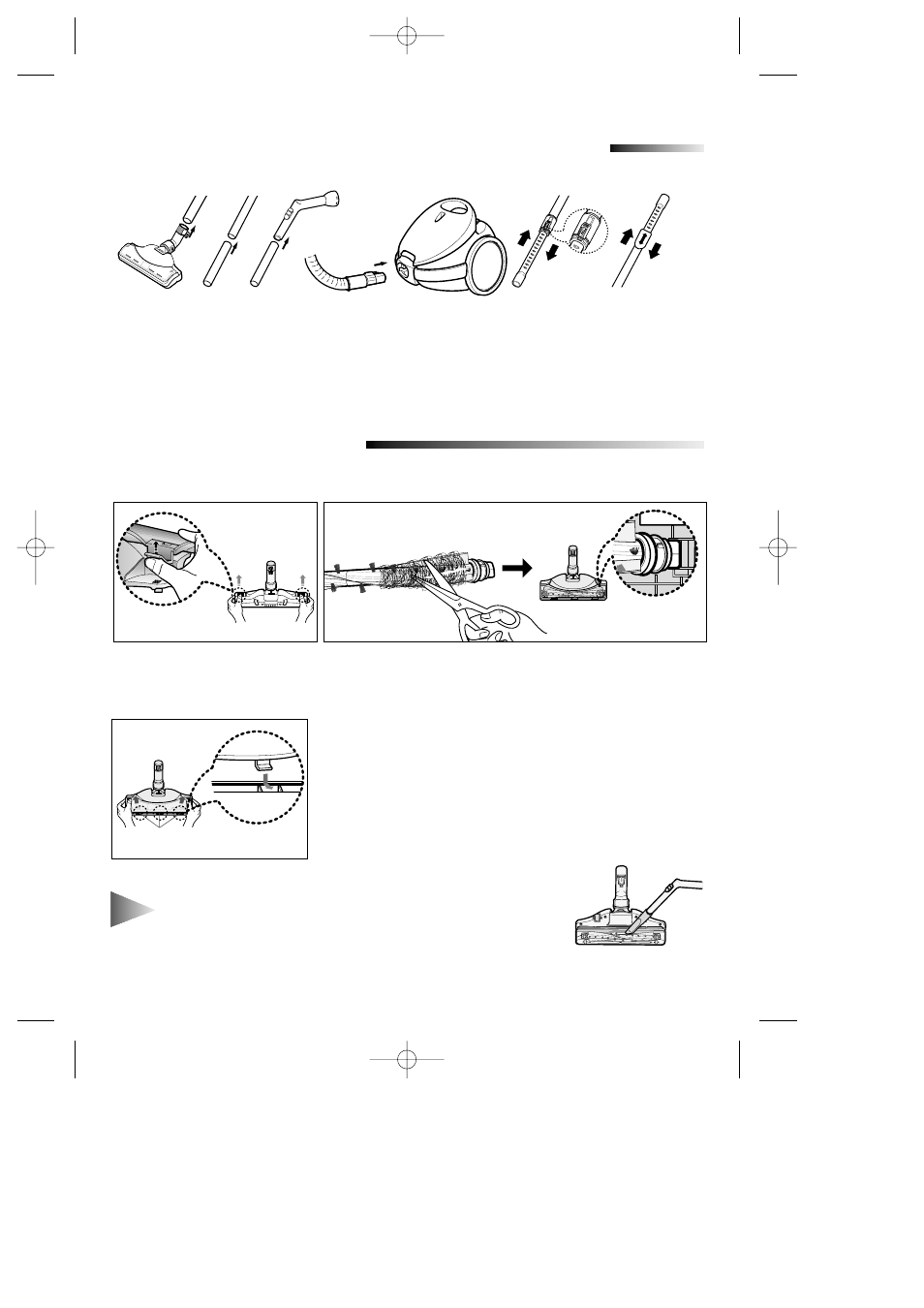

1. Slide the free end of the extension wand into the nozzle tube.
2. Slide the narrow end of one extension wand into the other extension wand.
3. Slide the extension wand into the handle end of the hose.
4. Slide the hose clamp into the suction inlet of the unit.
* SOPTION : Ajusting the telescopic tubes (depending on model).
ASSEMBLING THE VACUUM-CLEANER SO THAT IT IS READY FOR USE
USAGE OF FLOOR NOZZLE
NOTE: For optimum efficiency, clean floor brush with crevice tool.
CARING THE TURBINE
slots
Open the cover.
Push up the both sides of cover.
Lift it upwards and detach it. After cleaning the turbine, reposition it into its' own place.
It cannot be reassembled if the ends of turbine are reversed.
If you washing the turbine, it should be dried thoroughly.
To reattach the cover, align hinges of
cover with slots on the inner sides of
nozzle.
After aligning, press the both sides of
cover.
