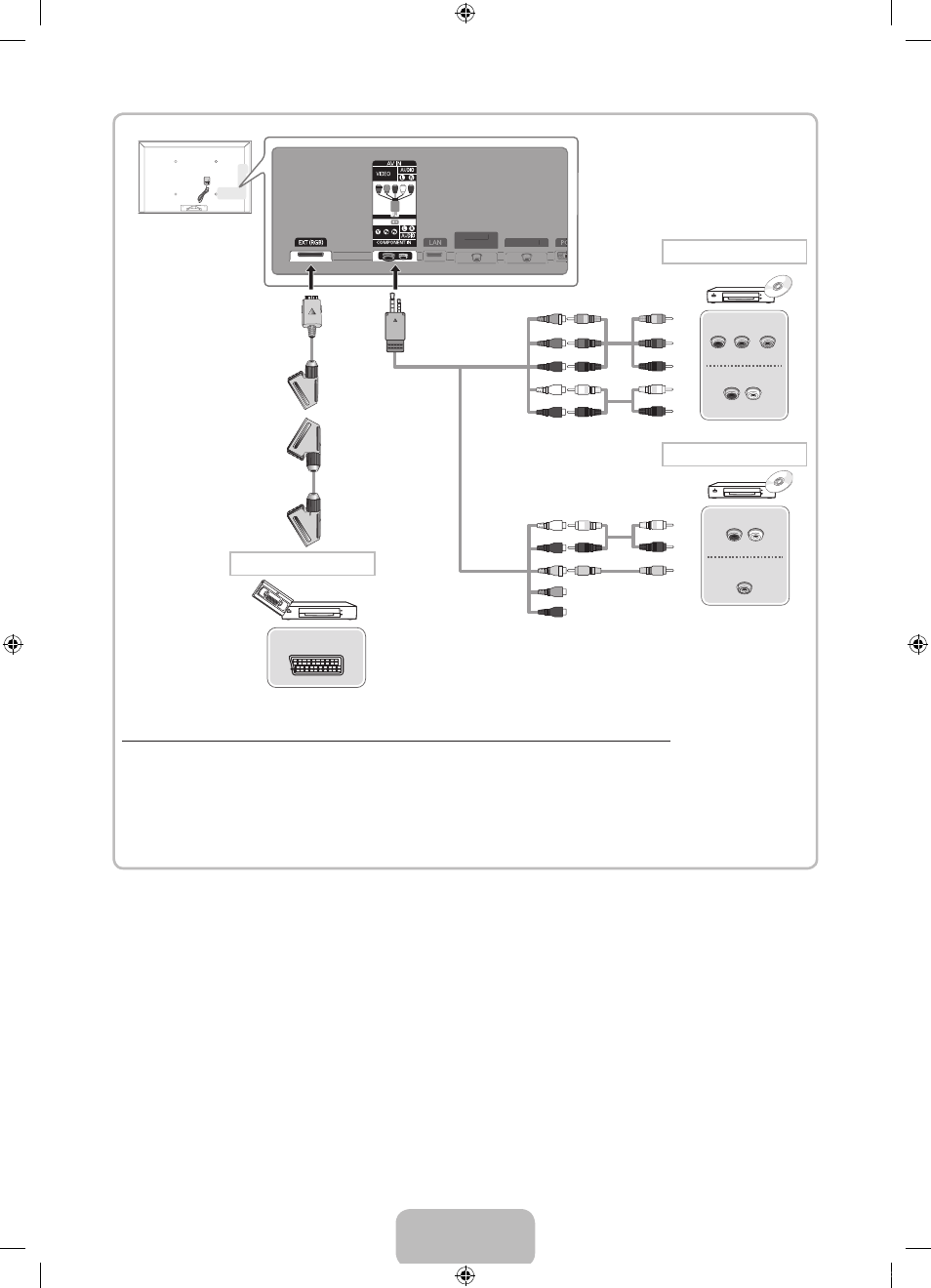

Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable
✎ In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎ When connecting to AV IN , connect the AV connector(yellow) to the TV jack(Green).
✎
To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
ANT 1 IN
ANT 2 IN
(SATELLITE) ANT 1 IN
ANT 2 IN
(SATELLITE)
EXT
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
P R P B Y
COMPONENT OUT
G G
B B
R R
R
R
W
W
R
R
Y Y
W
W
Component connection
AV connection
SCART connection
