Connections
Connecting to an AV Device

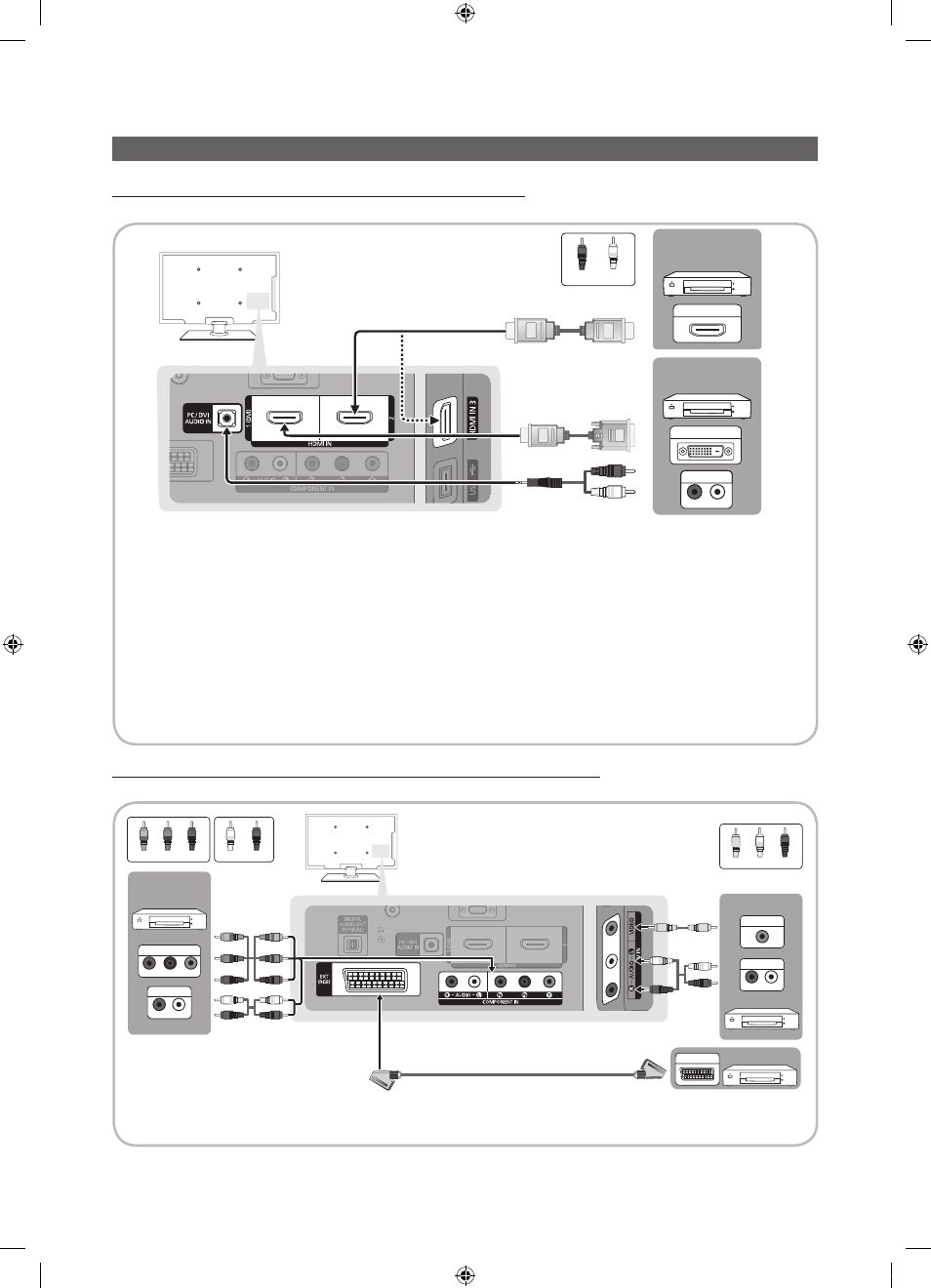

Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080i)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver
✎
HDMI IN 1(DVI), 2, 3, PC/DVI AUDIO IN
x
When using an HDMI/DVI cable connection, you must use the
HDMI IN 1(DVI)
jack. For the DVI cable
connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the
PC/DVI
AUDIO IN
jacks for audio.
x
If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI
versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal colour).
x
If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and
request an upgrade.
x
It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur.
Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable
Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver
✎
In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
HDMI OUT
DVI OUT
W
R
W
R
AUDIO OUT
R-AUDIO-L
DVD / Blu-ray
player
DVD / Blu-ray
player
Red
White
VIDEO OUT
AUDIO OUT
R-AUDIO-L
EXT
P
R
P
B
Y
COMPONENT OUT
AUDIO OUT
R-AUDIO-L
Y
W
R
R
G
B
W
R
Y
Y
W
R
W
R
W
R
R
G
B
R
G
B
W
R
VCR
Red
Red
White
Blue
Green
VCR / DVD
DVD /
Blu-ray player
Red
White
Yellow
