English - 22
PC Display
Setting Up Your PC Software (Based on Windows XP)
❑

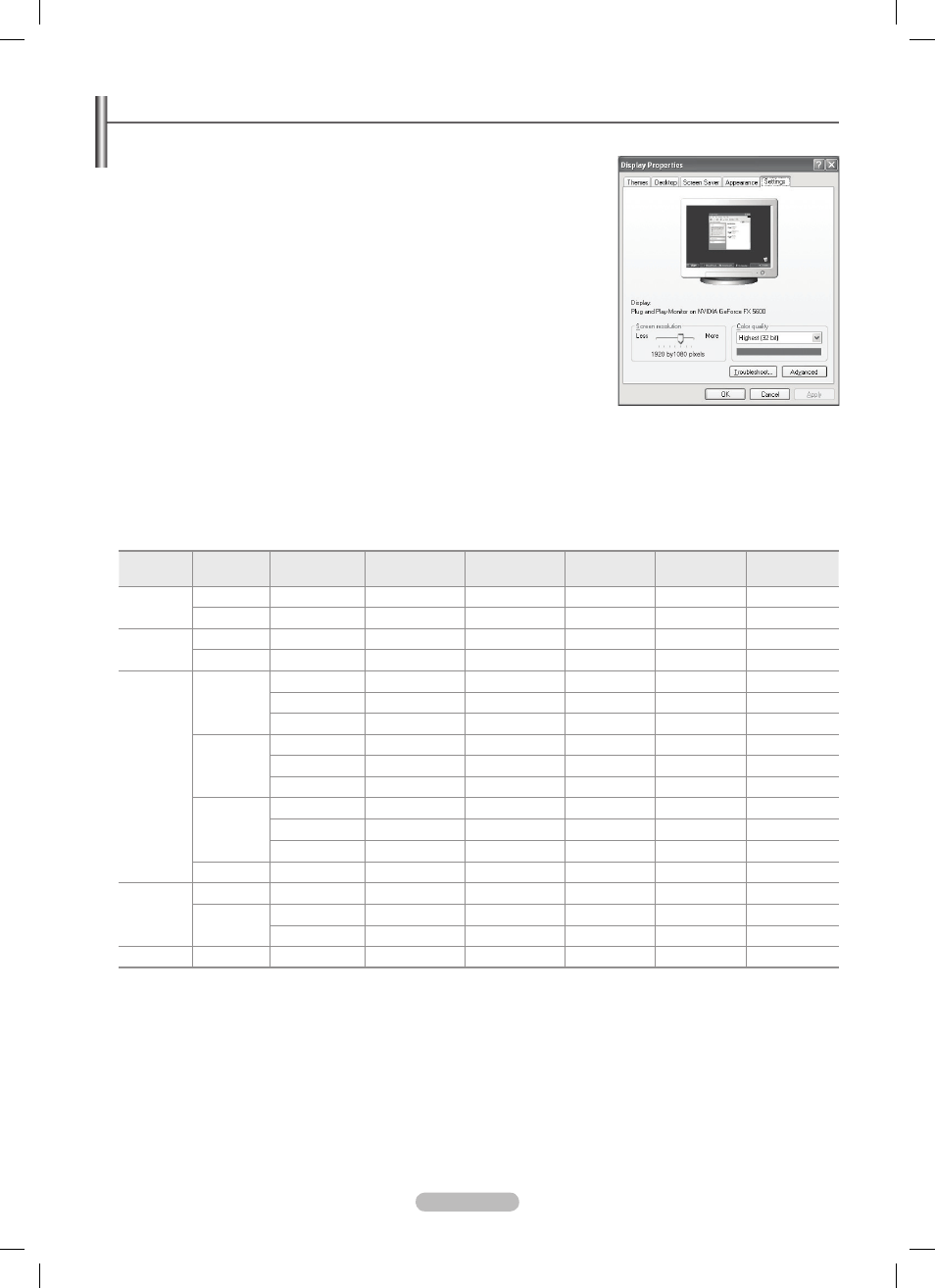

The Windows display-settings for a typical computer are shown below. The actual
screens on your PC will probably be different, depending upon your particular version
of Windows and your particular video card. However, even if your actual screens
look different, the same basic set-up information will apply in almost all cases. (If not,
contact your computer manufacturer or Samsung Dealer.)
1. First, click on ‘Control Panel’ on the Windows start menu.
2. When the control panel window appears, click on ‘Appearance and Themes’ and a
display dialog-box will appear.
3. When the control panel window appears, click on ‘Display’ and a display dialog-box
will appear.
4. Navigate to the ‘Settings’ tab on the display dialog-box.
The correct size setting (resolution)
Optimum
PS42B450B/PS42B451B : 1024x768 pixels
-
PS50B450B/PS50B451B : 1360x768 pixels
-
If a vertical-frequency option exists on your display settings dialog box, the correct
value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.
Display Modes
❑
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended.
D-Sub and HDMI/DVI Input
Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Pixel Clock
Frequency (MHz)
Sync Polarity
(H/V)
PS42B450B/
PS42B451B
PS50B450B/
PS50B451B
IBM
640 x 350
31.469
70.086
25.175
+ / -
✓
✓
720 x 400
31.469
70.087
28.322
- / +
✓
✓
MAC
640 x 480
35.000
66.667
30.240
- / -
✓
✓
832 x 624
49.726
74.551
57.284
- / -
✓
✓
VESA DMT
640 x 480
31.469
59.940
25.175
- / -
✓
✓
37.861
72.809
31.500
- / -
✓
✓
37.500
75.000
31.500
- / -
✓
✓
800 x 600
37.879
60.317
40.000
+ / +
✓
✓
48.077
72.188
50.000
+ / +
✓
✓
46.875
75.000
49.500
+ / +
✓
✓
1024 x 768
48.363
60.004
65.000
- / -
✓
✓
56.476
70.069
75.000
- / -
✓
✓
60.023
75.029
78.750
+ / +
✓
✓
1360 x 768
47.712
60.015
85.500
+ / +
✓
VESA CVT
720 x 576
35.910
59.950
32.750
- / +
✓
✓
1280 x 720
44.772
59.855
74.500
- / +
✓
56.456
74.777
95.750
- / +
✓
VESA GTF
1280 x 720
52.500
70.000
89.040
- / +
✓
When using an HDMI/DVI cable connection, you must use the
N
HDMI IN 2 (DVI) jack.
The interlace mode is not supported.
N
The set might operate abnormally if a non-standard video format is selected.
N
