7 ASSEMBLING AND PREPARING
ENGLISH y y The items supplied with your product may vary depending on the model.
y y Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

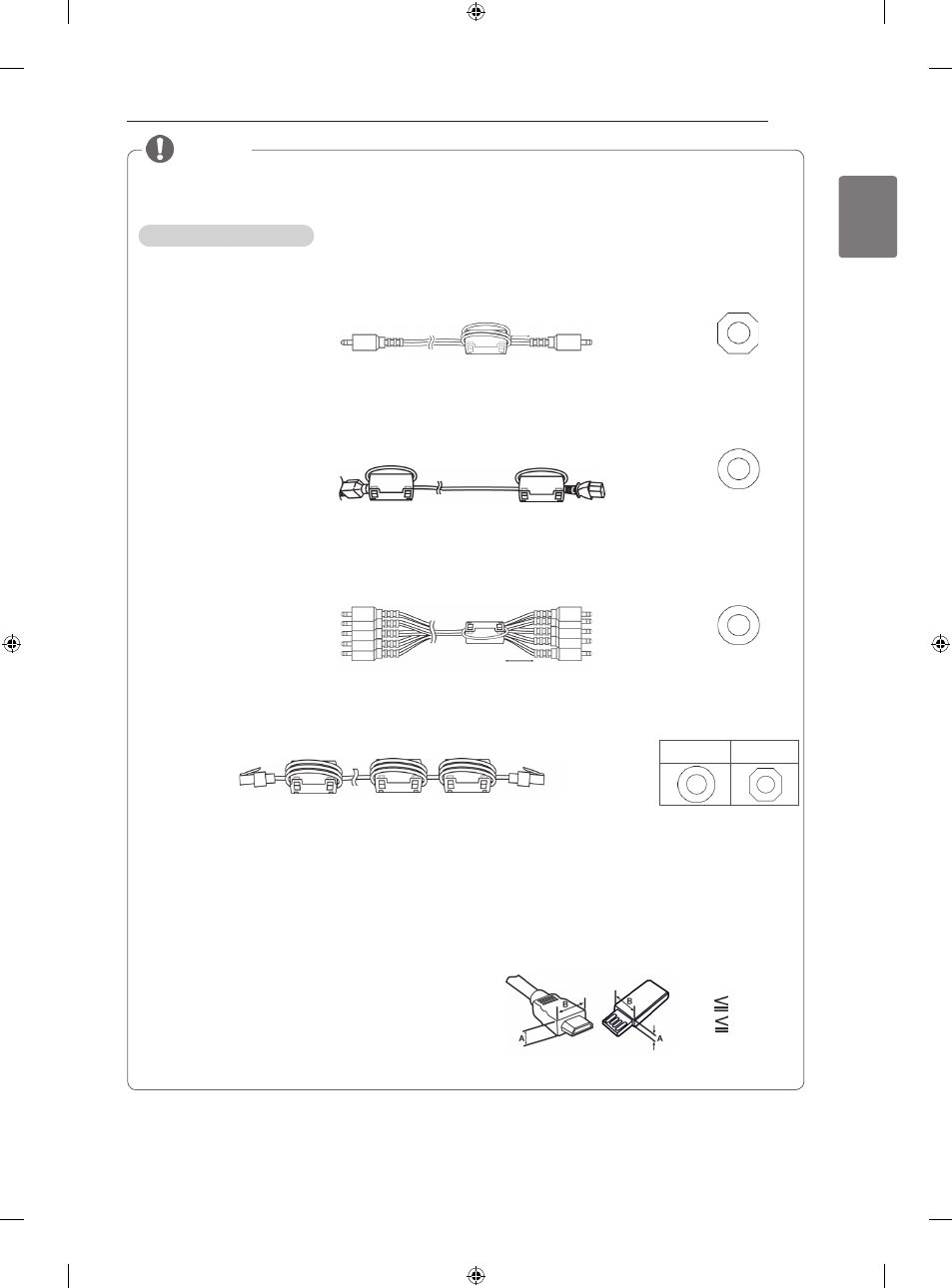

How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
2 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
[to an External device]
[Figure 1]
[to the TV]
10 mm(+ / - 5 mm)
3 Use the ferrite core to reduce the electromagnetic interference in the component Y, Pb, Pr, L,
R cable. Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.
Place the ferrite core close to the TV.
[Cross Section of
Ferrite Core]
(Gray)
[to an External device]
[Figure 3]
[to the TV]
10 mm(+ / - 5 mm) [Cross Section of
Ferrite Core]
(Black)
[to a wall plug] [to the TV]
[Figure 2]
[Cross Section of
Ferrite Core]
(Black)
- If there is one ferrite core, follow as shown in Figure 1.
- If there are three ferrite cores, follow as shown in Figures 1 and 2.
- If there are four ferrite cores, follow as shown in Figures 1, 2 and 3.
- If there is LAN port, additionally follow as shown in Figure 4.
NOTE
4 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the
LAN cable thrice on the ferrite core. Place the ferrite core close to the TV and an External device.
A (Gray) B (Gray)
[Cross Section of
Ferrite Core]
[to the TV]
[to an External
device]
B A A
[Figure 4]
y y For an optimal connection, HDMI cables and USB de-
vices should have bezels less than 10 mm thick and
18 mm width. Use an extension cable that supports
USB 2.0 if the USB cable or USB memory stick does
not fit into your TV’s USB port.
*A 10 mm
*B 18 mm
