WL-500W Wireless Router Quick Start Guide

2

English

PWR (Power)

Off

No power

On

System ready

Flashing-slow

Firmware upgrade failed

Flashing-quick

EZsetup processing

AIR (Wireless Network)

Off

No power

On

Wireless system ready

Flashing

Transmitting or receiving data

(wireless)

WAN (Wide Area Network)

Off

No power or no physical

connection

On

Has physical connection to an

Ethernet network

Flashing

Transmitting or receiving data

(through Ethernet cable)

LAN -4 (Local Area Network)

Off

No power or no physical

connection

On

Has physical connection to an

Ethernet network

Flashing

Transmitting or receiving data

(through Ethernet cable)

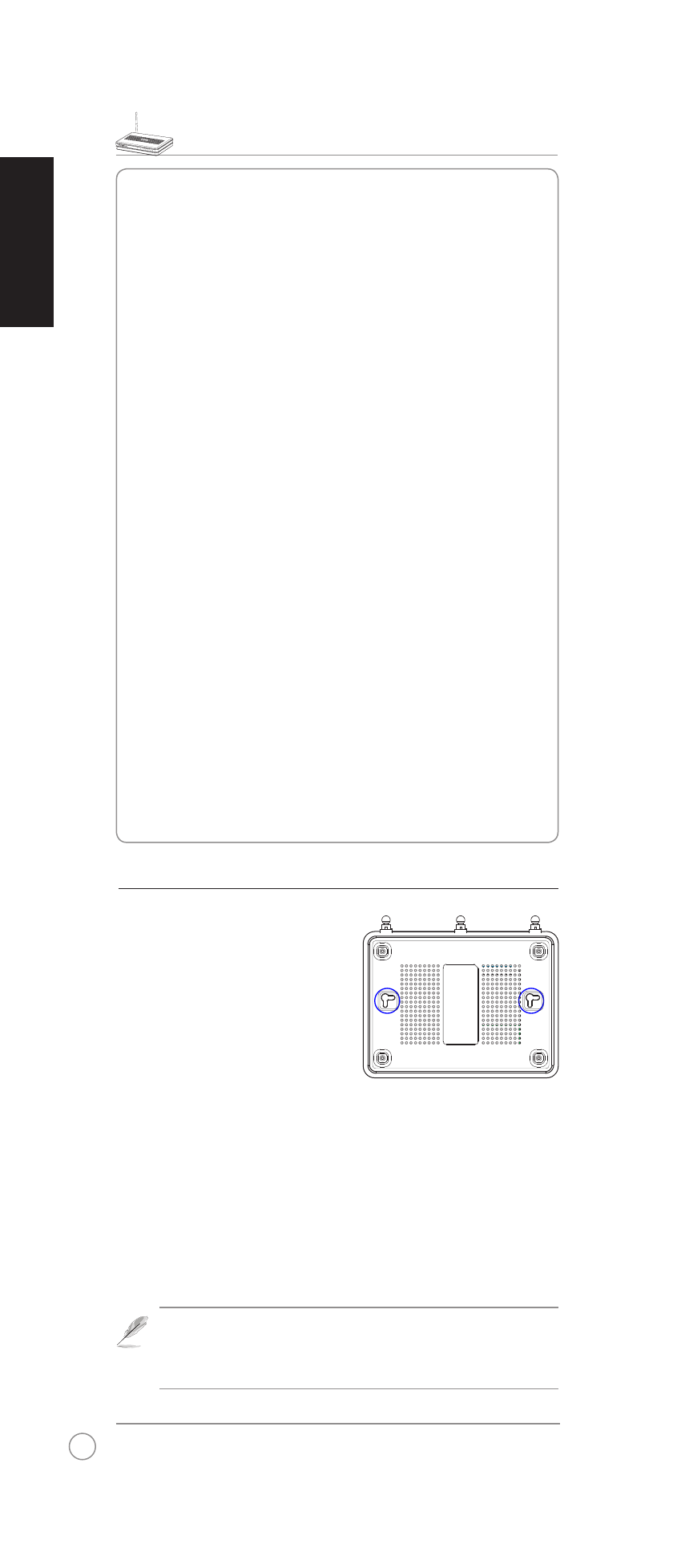

3) Wall mount option

Out of the box, ASUS WL-

500W Wireless Router is

designed to sit on a raised

flat surface like a file cabinet

or book shelf. The unit

may also be converted for

mounting to a wall or ceiling.
Follow these steps to mount the ASUS Wireless Router

to a wall:
1. Look on the underside for the two mounting hooks.
2. Mark two upper holes in a flat surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto

the screws.

Note: Re-adjust the screws if you cannot latch

the ASUS Wireless Router onto the screws or if it

is too loose.
