Размерные чертежи
18 3A2027P

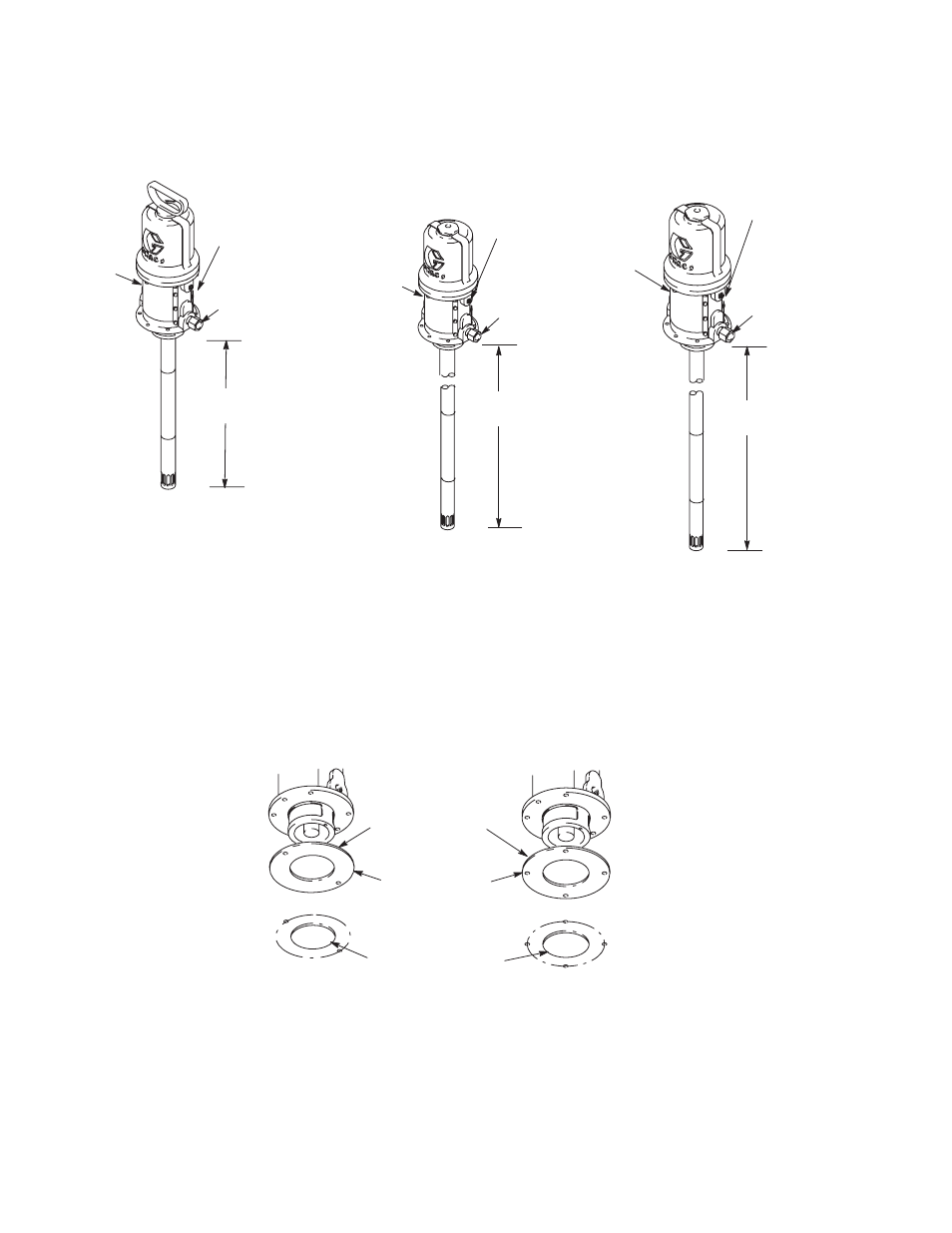

Размерные чертежи
Схема расположения монтажных отверстий
Overall length:
45.4 in. (1153 mm)
Overall length:
38.4 in. (975 mm) Overall length:
31 in. (788 mm)
33.6 in.
(853 mm)
26.7 in.
(678 mm) 17.5 in.
(445 mm)
grounding screw
1/4 npt(f)
fluid outlet
grounding screw
grounding screw
1/4 npt(f)
fluid outlet 1/4 npt(f)
fluid outlet
3/8 npt(f)
air inlet
3/8 npt(f)
air inlet 3/8 npt(f)
air inlet
161023 gasket
two or four
0.265 in. (7 mm)
dia. holes on 5 in.
(127 mm) bolt circle
3 in. (76.2 mm) dia.
2-Hole Mounting
Pattern
4-Hole Mounting
Pattern
