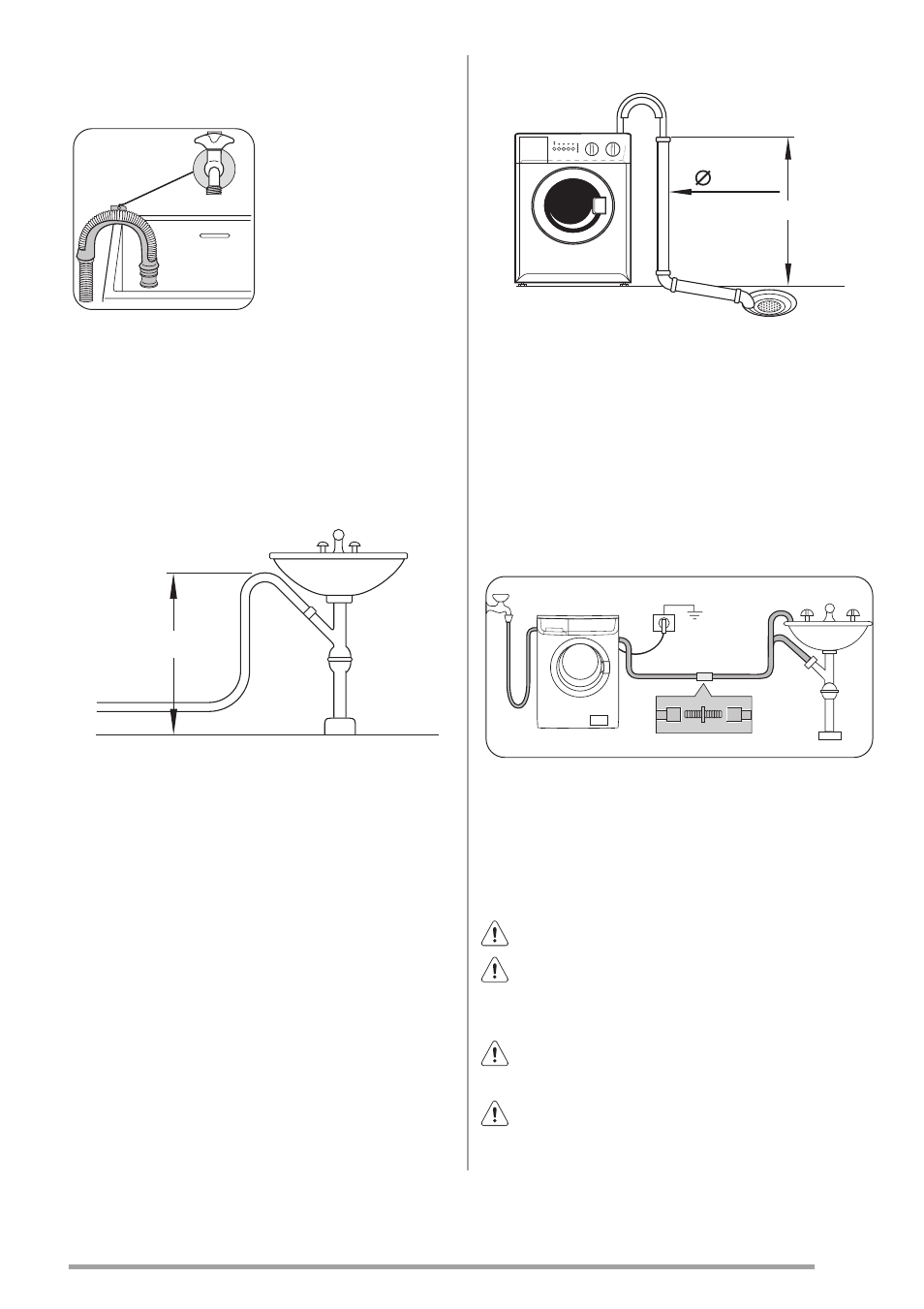

Hooked over the edge of a sink using the plastic hose
guide supplied with the machine.
In this case, make sure the end cannot come unhooked
when the machine is emptying. This could be done by ty-
ing it to the tap with a piece of string or attaching it to the
wall.
In a sink drain pipe with a trap.
650-800 mm
The drain hose can be connected directly into the pipe
(e.g. beneath a washtub or sink), above the water trap. The
drain hose must be arranged so that some part of it’s
length is routed up to a level corresponding to the top
edge of the tub and fixed in place there.
Directly into a drain pipe at a height of not less than 65
cm and not more than 80 cm.
Their must be an air gap around and below the end of
drain hose. This means that the internal diameter of the
standpipe must be larger than the outer diameter of the
hose.
650-800 mm
40 mm
The hose must not be sticked into the standpipe more
than 50 mm and it has to be fixed in this position. The
drain hose must not be kinked.
The drain hose can be extended up to total 3,5 m. For the
extension piece use a hose with an internal diameter at
least as large as that of the machine's own hose. Use a
suitable hose connector.
Information on the electrical connection is given on the
rating plate on the inner edge of the appliance door.
Check that your domestic electrical installation can take
the maximum load required, also taking into account any
other appliances in use.
Caution! Connect the machine to an earthed socket.
Caution! The manufacturer does not accept any
responsibility for damage or injury through failure
to comply with the above safety precaution.
Caution! The power supply cable must be easily
accessible after installing the machine.
Caution! Should the appliance power supply cable
need to be replaced, this must be carried out by a
Service Centre.
19
