Connecting Optional Equipment

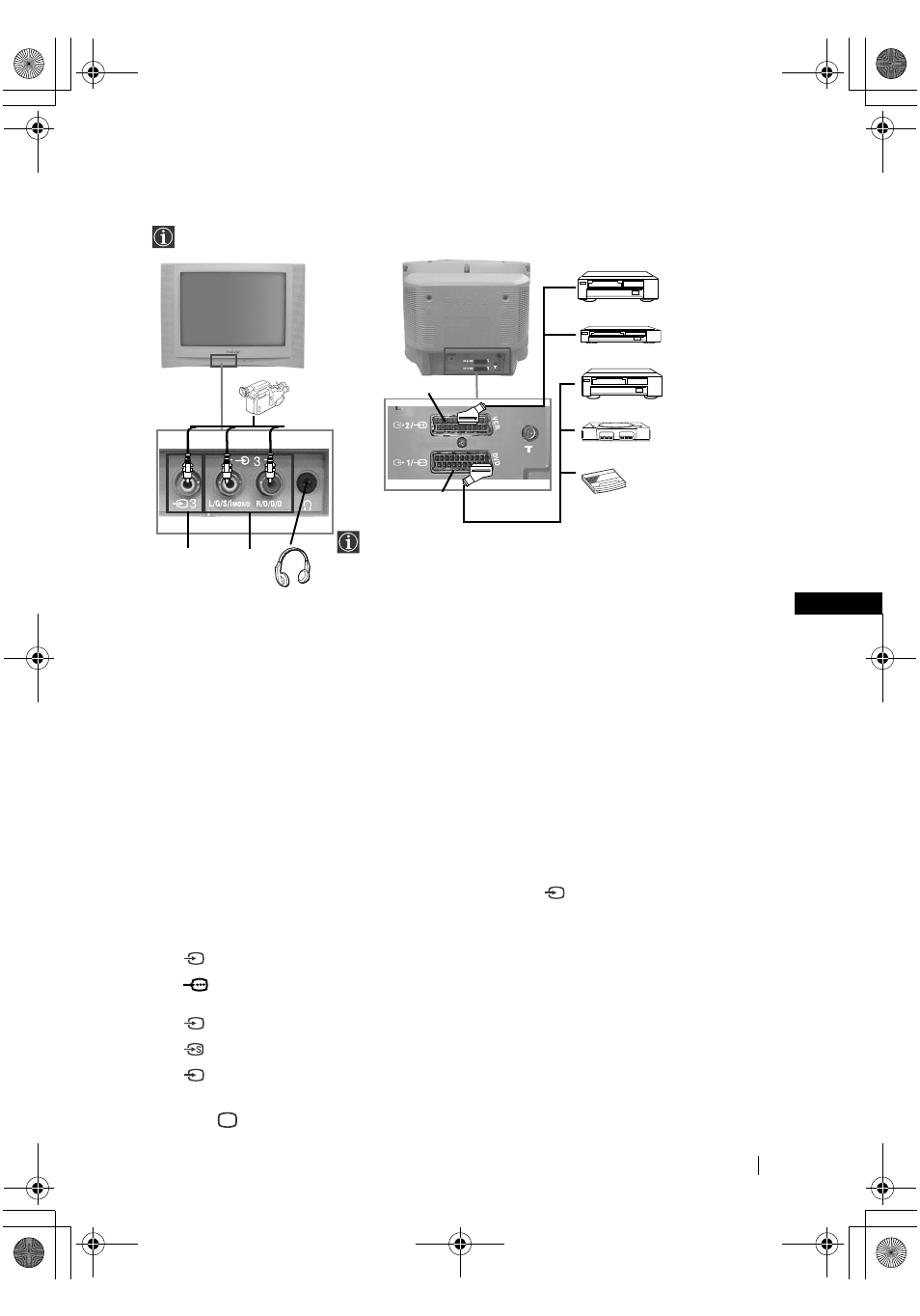

Using the following instructions, you can connect a wide range of optional equipment to
your TV set (connecting cables are not supplied).
Connecting a VCR:
To connect a VCR, please refer to the section “Connecting an aerial and VCR” of this instruction
manual. We recommend you connect your VCR using a Scart lead. If you do not have a Scart
lead, tune in the VCR test signal to the TV programme number “0” by using the “Manual
Programme Preset” option (for details on how to manually programme these presets, see page
14, step a).
Refer to your VCR instruction manual to find out how to find the output channel of your VCR.
Using Optional Equipment
1
Connect your equipment to the designated TV socket, as indicated above.
2
Switch on the connected equipment.
3
To watch the picture of the connected equipment, press repeatedly until the correct
input symbol appears on the screen.
4
Press button on the remote control to return to the normal TV picture.
Symbol Input Signals
1
•Audio / video input signal through the Scart connector C
1
•RGB input signal through the Scart connector C. This symbol appears
only if a RGB source has been connected.
2
•Audio / video input signal through the Scart connector D.
2
•S Video input signal through the Scart connector D.
3
•Video input signal through the phono socket A and Audio input signal
through B.
A B
1 2
C
8mm/Hi8/
DVC
camcorder
DVD/VCR
“PlayStation”*
decoder
When you connect the
headphones, the TV
speakers will
automatically be muted * “PlayStation” is a product
of Sony Computer
Entertainment, Inc.
* “PlayStation ” is a trademark
of Sony Computer
Entertainment, Inc.
DVD
VCR
D
