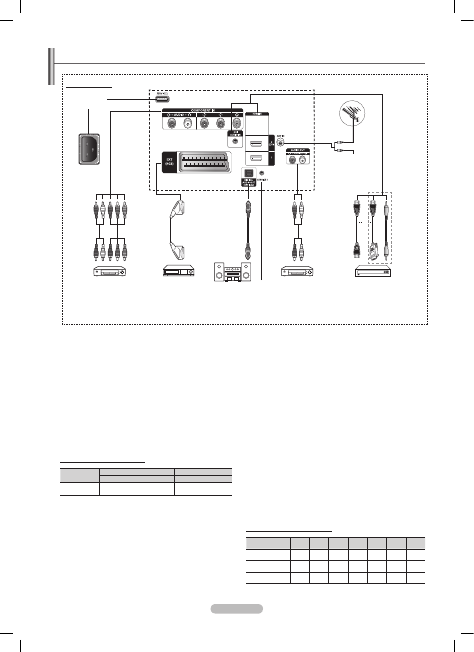

Viewing the Connection Panel
Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
N
When connecting an external device, match the colour of the connection terminal to the cable.
N
The product colour and shape may vary depending on the model.
N
1
POWER IN
Connect the supplied power cord.
2
SERVICE 1, 2
Connector for service.
3
COMPONENT IN
Audio (AUDIO L/R) and video (Y/P
B
/P
R
) inputs for
Component.
4
EXT (RGB)
Inputs or outputs for external devices, such as VCR, DVD,
video game device or video disc players.
Input/Output Specification
Connector
Input
Output
Video Audio(L/R) RGB
Video + Audio(L/R)
EXT
✔
✔
✔
Only TV or DTV output
is available.
5
DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio Component.
6
AUDIO OUT(AUDIO R/L)
Connect RCA audio signals from the TV to an external source,
such as Audio equipment.
7
HDMI IN 1, 2 (DVI)
No additional Audio connection is needed for an HDMI to
HDMI connection.
When using an HDMI/DVI cable connection, you must use
-
the HDMI IN 2 (DVI) jack.
What is HDMI?
N
High Definition Multimedia interface
-
allows the
transmission of high definition digital video data and
multiple channels of digital audio.
The HDMI/DVI terminal supports DVI connection to
-
an extended device with the appropriate cable (not
supplied). The difference between HDMI and DVI is
that the HDMI device is smaller in size, has the HDCP
(High Bandwidth Digital Copy Protection) coding feature
installed, and supports multi - channel digital audio.
DVI AUDIO IN
DVI audio outputs for external devices.
8
ANT IN
75Ω Coaxial connector for Air/Cable Network.
Input/Output Specification
480i 480p 576i 576p 720p 1080i 1080p
HDMI/DVI 50Hz
X
X
X
O
O
O
O
HDMI/DVI 60Hz
X
O
X
X
O
O
O
Component
O
O
O
O
O
O
O
Cable Television
Network
or
1
4
3
2
6
5
or
8
7
2
TV Rear Panel
