Подключение входа концевика двери
Вход концевика двери автомобильных сигнализаций
H-SS31 имеет программируемую полярность
(заводская установка полярности – отрицательная), и поэтому подвязка входа к плюсу внутри блока отсут
ствует, а к минусу он подвязан через резистор 100К. Как правило, при подключении концевика к цепи
управления салонным светом плюс или минус, поступающий на вход концевика двери через лампу салон
ного света, обеспечивает достаточный уровень подпорного напряжения для нормальной работы входа. Если
же уровень подпорного напряжения недостаточен, используйте резистор 10К из комплекта сигнализации
для внешней подвязки входа к плюсу или минусу соответственно.

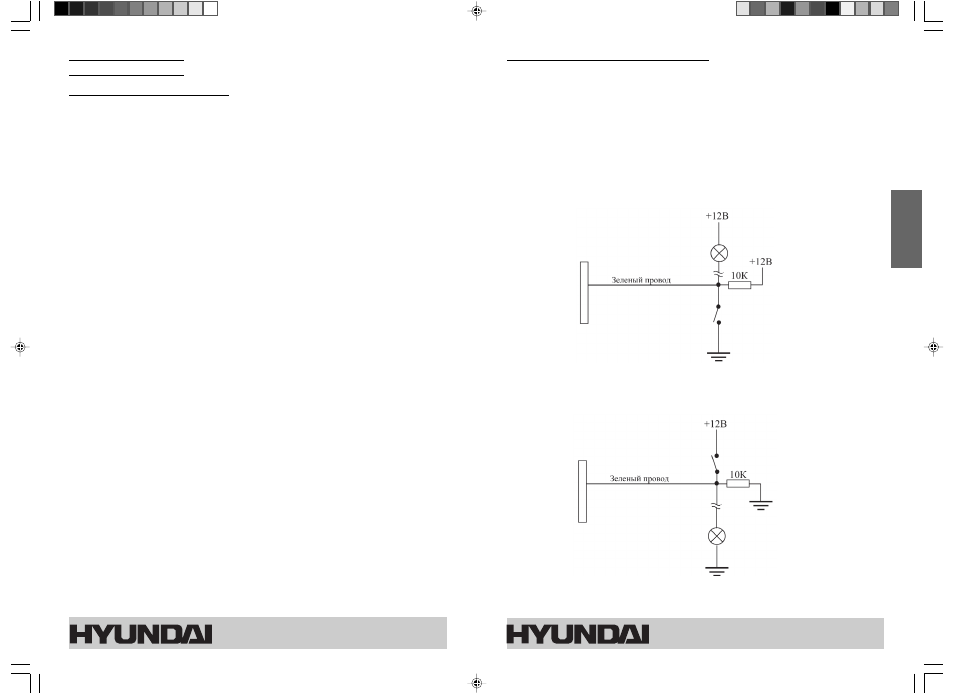

Подключение входа концевика при выборе отрицательной полярности
Подключение входа концевика при выборе положительной полярности
User’s Guide and Installation manual
H-SS31 Car Alarm System
26
Directions for Use
Main Alarm Functions
Arming
With all door, hood, trunk closed and with the ignition off press button 1 once to arm the alarm system.
When the alarm is armed and the doors lock the siren will beep once and the indicators will flash once, the LED
will flash slowly to indicate that the system is armed.
Defective Zone Warning
If any door, trunk, or hood is not shut properly while arming the siren will emit three additional beeps and the
indicators will flash three times.
Dome Light Car Detection
This feature can be selected using programming.
If the interior light in your car includes a delay when the door is closed turn this function on, there will be no
additional warning beeps on arming the alarm system with the interior light left switched on because of the timed
delay.
Armed
When the alarm system is armed and triggered it will be triggered for 30 seconds or until you press any
transmitter button or enter the override code (PIN code) once any door, hood or trunk is opened or the shock
sensor (or optional sensor) is triggered. If the pre warn zone of the shock sensor (optional sensor) is triggered, this
will cause the siren to emit a few short beeps.
Disarming
When the alarm is armed press button 2 once to disarm the alarm system.
When the alarm system is disarmed, the siren will chirp three times, the indicators will flash twice, the LED will
turn off and the central door locking will unlock.
2 Stage Disarm
To disarm the alarm system normally, press the disarm button. If the alarm system has been triggered, pressing
a button will stop the alarm cycle but the alarm system will remain armed and the doors will remain locked (if the
action causing the trigger is over i.e. door open triggered alarm but the door is now closed). If the action causing
the alarm trigger is not over i.e. the door is still open then it will require two presses of a button to stop the alarm
cycle. The alarm will remain armed with the doors locked. To fully disarm the alarm system, press the disarm button
(2) again.
Panic
Holding buttons 1 and 2 pressed for 3 seconds will activate panic mode. The siren will sound and the indicators
will flash until you press button 1 again to turn off panic mode. When the panic mode is activated the alarm system
will keep status (armed or disarmed) it held before.
Silent Arm
Pressing button 2 immediately before button 1 is pressed (within 3 seconds) will arm the alarm system without
beeping the siren unit. All other features including the indicator flashes will remain the same. Note: If the alarm is
giving the driver a warning such as three beeps for door/hood/trunk open the alarm system will beep the siren even
if it is overridden by the remote or the software switch. Fault warnings take priority over silent arming.
