Connecting to the monitor output terminal ( t ), Continued – Инструкция по эксплуатации Sony KV-SR292
Страница 26
26
Additional Information
Sony KV-SR292M99K GRP R9 (
GB
, RU)_2-663-700-11 (1)
continued
1
3
4
R
L
Y
C
B
C
R
Audio system
VCR
Audio/Video
cable
(not supplied)

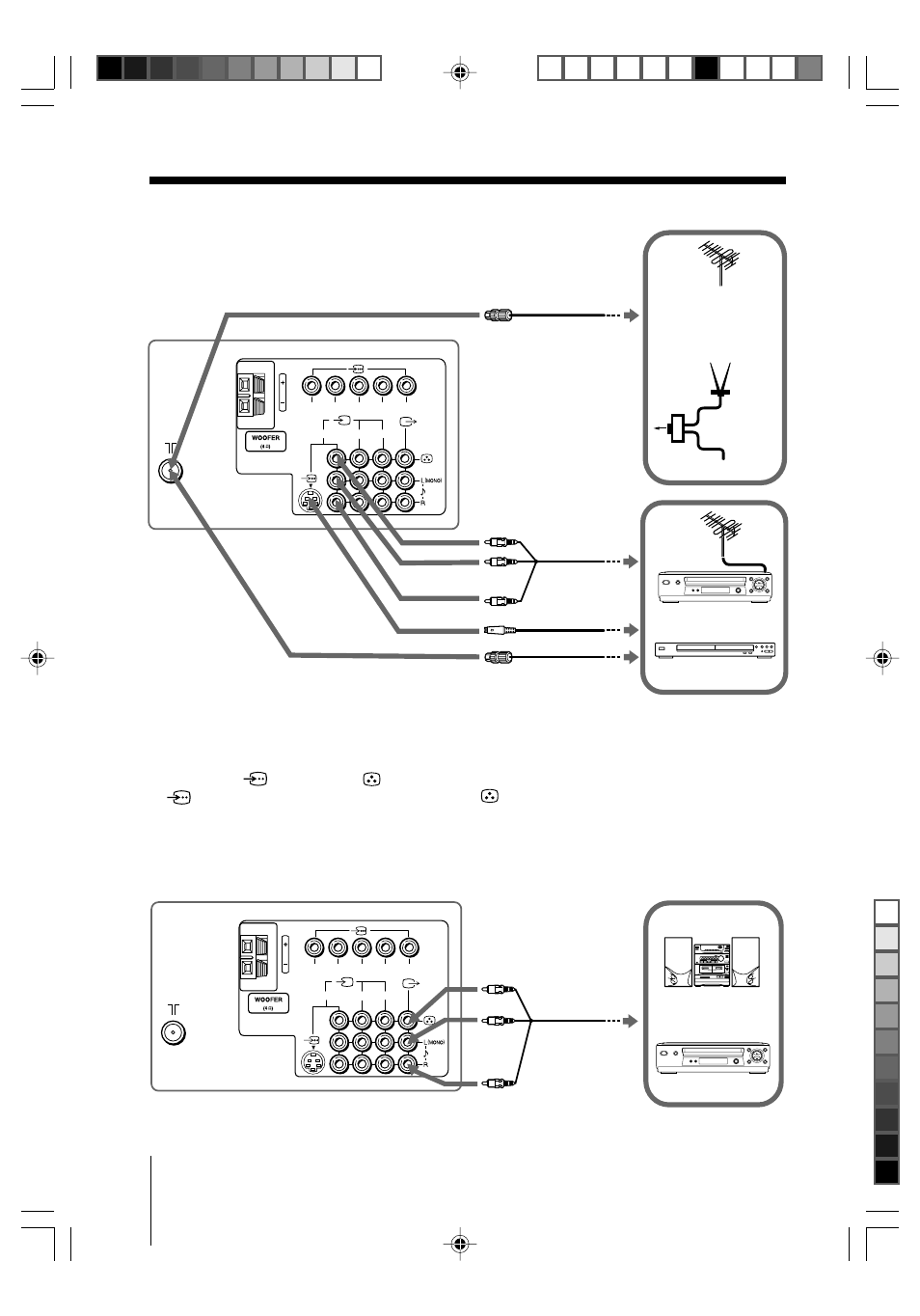

Connecting to the monitor output terminal ( T )
TV rear panel
Notes
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 23).
• When both
(S video) and
(video) for t1 are connected at the same time,
(S video) is automatically selected. To view
(video), disconnect the S video cable.
VCR
Audio/Video
cable
(not supplied)
Antenna cable
(not supplied)
TV rear panel
S Video cable
(not supplied)
DVD player
1
3
4
R
L
Y
C
B
C
R
Antenna cable
(not supplied)
TV, CATV, Satellite
or
When there is no
FM signal
Antenna
selector
FM signal
TV signal
