Connecting and Operating Optional
Equipment

Connecting Optional Equipment

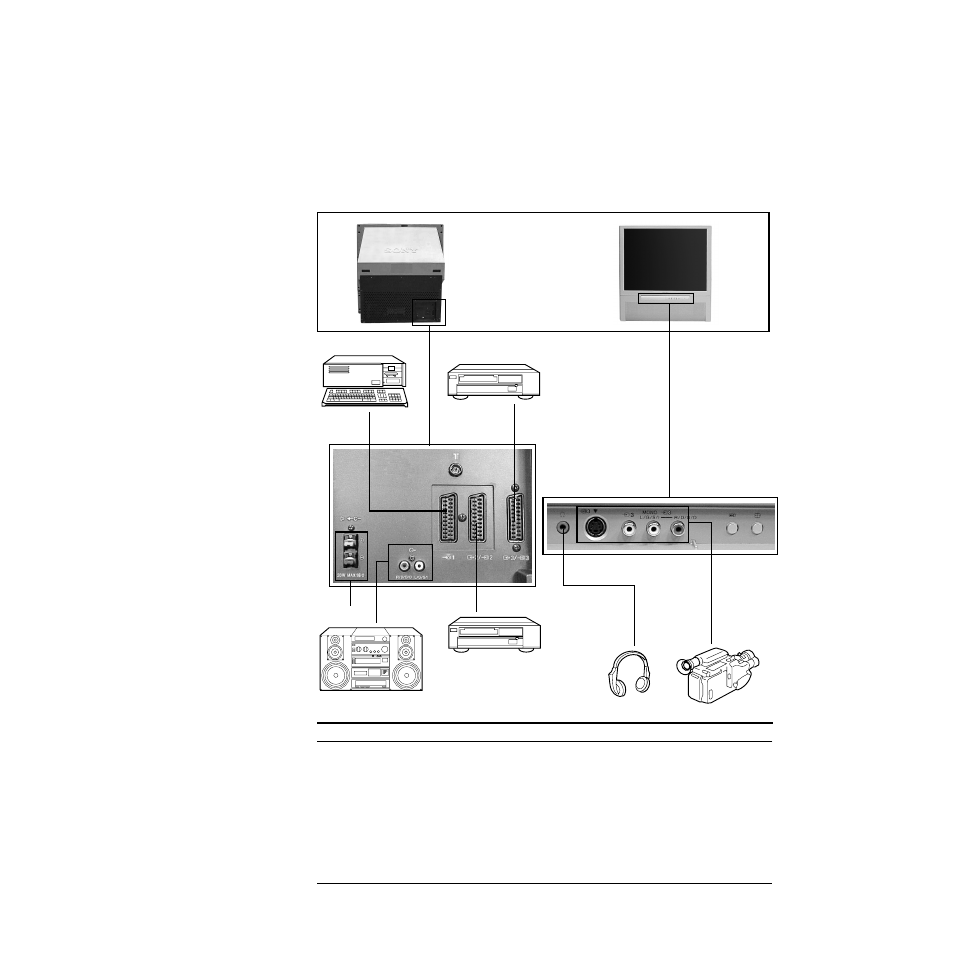

You can connect optional audio-video equipment to this TV such as a
VCR, video disc player, and stereo system.

3

1

2

4

5

3

To connect a VCR using
the )

)

)

) terminal

Connect the aerial output
of the VCR to the aerial
terminal ) of the TV.
We recommend that you
tune in the video signal to
programme number “0”.
For details, see
“Presetting Channels
Manually” on page 10.

If the picture or the
sound is distorted
Move the VCR away from
the TV.

About S video Inputs
(Y/C input)
Video signals can be
separated into Y
(luminance or brightness)
and C (chrominance)
signals.
Separating the Y and C
signals prevents them
from interfering with one
another, therefore it
improves picture quality
(especially luminance).
This TV is equipped with
3 S Video input jacks,
through which these
separated signals can be
input directly.

When connecting a
monaural VCR
Connect only the white ≤
jack to both the TV and
VCR.

Note
When you connect the
equipment to the q3/
…3/≤3 connectors on
the front panel and :3/
q3 connector on the
rear panel, turn off the
power of the equipment
not in use.

Acceptable input signal

Available output signal

1

Normal audio/video and RGB signal

Video/audio from TV tuner

2 Normal audio/video and S video signal

Video/audio from selected source

3

Normal audio/video and S video signal

No outputs

Normal audio/video and S video signal

Video/audio from selected source (the same output
source as the :2/ q 2 connector)

4

No inputs

Audio signal

5

Centre speaker input

No outputs

Set “Speaker” on the SOUND
CONTROL menu to “Centre in”.
