Предостерегающие/предупреждающие надписи
Предостерегающие надписи указывают на возможность опасной ситуации, которая
(в случае если не будет предотвращена) может повлечь причинение тяжкого вреда
здоровью или смертельный исход.
Предупреждающие надписи указывают на возможность опасной ситуации, которая (в
случае если не будет предотвращена) может повлечь причинение легкого или среднего
вреда здоровью.

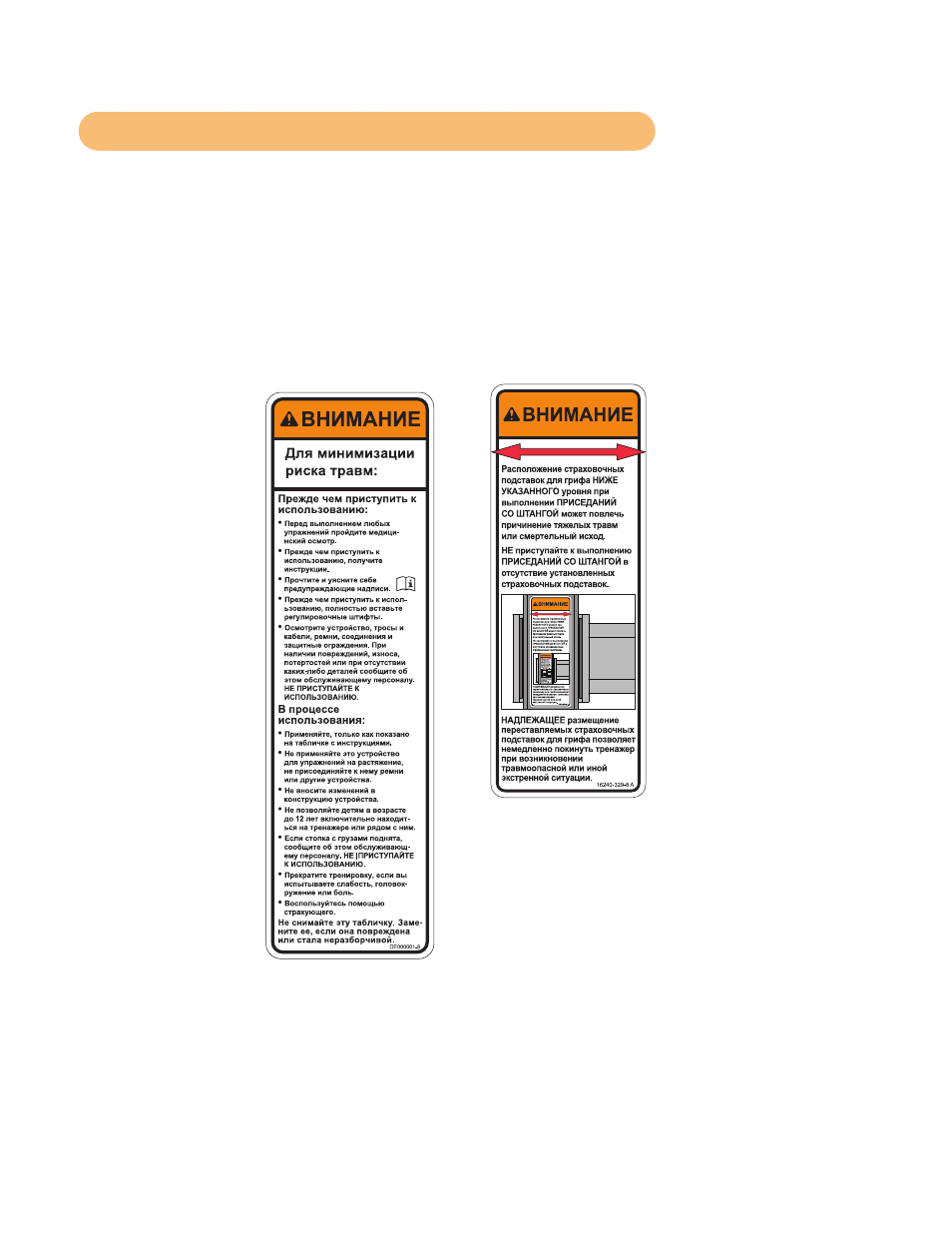

Предостерегающие и предупреждающие надписи приводятся на этой странице.
