4
7. Pull the plug out under the conditions
hereinafter:
 Out of use
 Cleaning and maintaining
 Moving the fryer
 When the fry is in problem
8. Stop using the fryer under the
conditions hereinafter:
 Fryer/power cord /plug is
broken
 When the function is abnormal
the fryer is dropped down and is
obviously broken
If the situation above happens, please
contact our appointed after-sales service
center before you use it again and don’t
try to repair by yourself.
9. If the power cord or the plug is
broken, please contact out appointed
after-sales service center and don’t
repair it by yourself either.
10. Make sure to prevent the fryer away
from heater such as electric oven and
so on to protect the fryer.
11. Don’t immerse the body of the fryer
into water.
12. Make sure to use out products on a
flat, clean, dry and firm platform.
13. The fryer is expected to cook food, so
please don’t make it working without
food in the pot.
14. This appliance is for domestic use
only, any problems caused by
business use or inappropriate uses
are not in the line of our guarantee.
Be careful of burn!
The cook food is hot. Please be care that it
may cause severe damage to children.
Follow the below suggestions will do good
to prevent from accidents.
 The fryer should be placed away
from the edge of the working
platform.
 Hide the power cord out of reach
of children.
 Please warn children not to
touch any hot food or cooking
appliance in the kitchen.
 When accident happens, please
wash the wound with cold water
and ask for a doctor if needed.

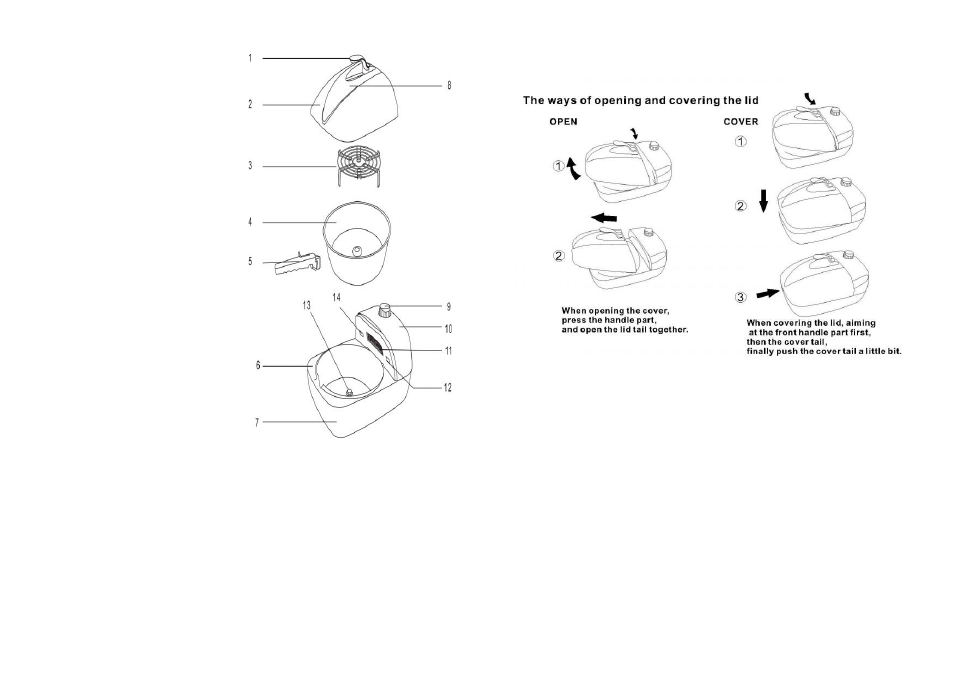

Description
1 Lid handle
2 Lid
3 Grill
4 Pan
5 Detachable pan handle
6 Insulated offer
7 Bottom
8 Insulation cover
5
9 Knob
10 Body
11 Draught window
12 Working light
13 Driven
14 Power light
INSTRUCTION MANUAL
Remove all the packing materials and all
adhesive marks on the appliance except
the rating label, Please refer to the “lid
open and close” chapter to learn how to
remove the lid.

Before your formal use, please pour
300-500ml water and boil it for 20
minutes to wash the pan wipe off the
plastic smell and impurity, and then
wash the pan rotating device
separately.
 Picture A: Lid of the pan can’t be
open upwardly, but 45 degrees
towards the body.
 Picture B: Make sure the pan put in
the central position and supported by
the turret at the bottom.
 Picture C: put the pan in with the
handle and then fix the rotating
device firmly.
 Picture D: put the food in the pan
equally，make sure the line is not
over the max line.
 Picture E: close the lid with the
closing sound..
 Picture F: move the time switch, the
working light on the right will turn
on.
 Picture G: a sound will be heard
when the food is ready.
 Picture H: open the lid.
 Picture I-J: put the pan out with the
pan handle after cooking.
 Picture K: when bake pork chop and
beefsteak, their thickness is not over
4cm, Then use the grill in tall side,
when the food‘s thickness is over 4-
10cm, then use the grill in low-lying
side.
 Picture L: Before place the fryer, you
should sure the unit is complete
cooling, Pull out the plug.
