4

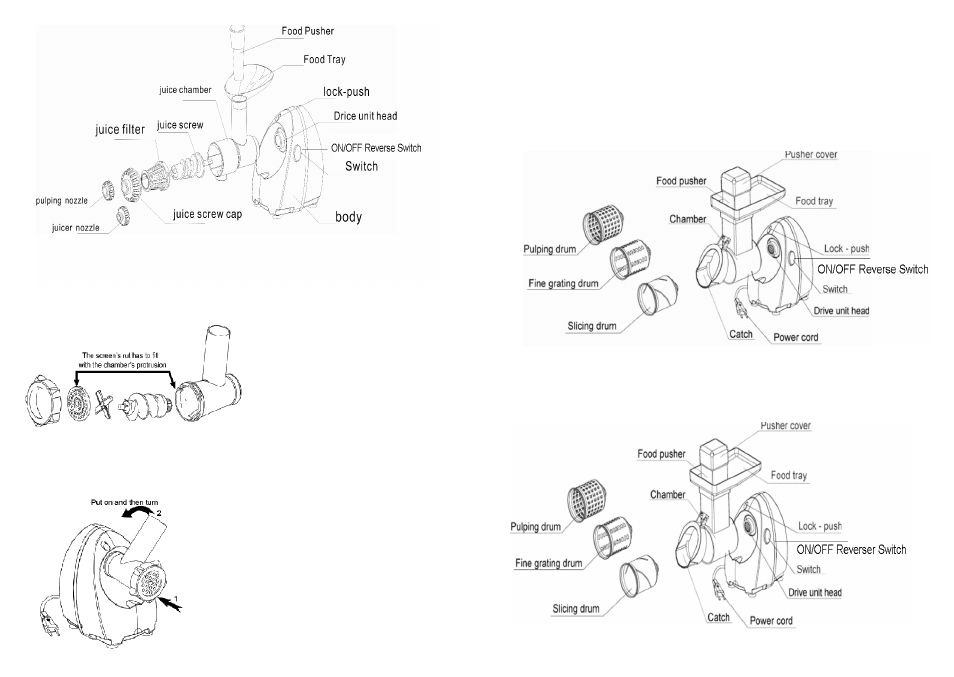

 Preparing the meat grinder to work
and the actuation of the appliance
- Place the drive unit close to the power
network socket, on a firm surface so as not
to cover the ventilation holes within the
casing.
 Operating the mincing set
Put the following elements into the mincing
chamber:
- Mincing screw with the coupling
towards the middle,
- Put the cutter knife on the mincing
screw end with the sharp edges facing
outside.
- Put the screen so that the chamber’s
protrusion enters the rut of the screen.
1.
Tighten all the elements of the
mincing set – until home.
2. Put the assembled unit (1) onto the
drive unit (2) and turn into the
position, when you hear click of the
safety lock.
3. Put the food tray onto the mincing
chamber.
 Using methods
- Put the meat around 300g (Suggest using
without bone and muscles of meat) onto
the food tray.
- Connect the power supply and turn on the
switch. After the normal operation of the
confirmation grinder, put the ready meat
into the chute feed tube.
- If food cannot be involved in the food
screw, please, use food pusher - slowly
2
push food. Do not use other alternative the
food pusher. Use reverse rotation function
in case of necessity.
- After use, please cut off the power supply.
Note: The process of chopper running, if
food card in the screw doesn’t work. should
immediately turn off the power.
Instruction for Use of Juicer extractor
Name of Parts
Operating the Juicer
- Place the juicer screw into the juicer
chamber. Insert the juicing strainer into the
chamber. Place the juicer screw cap onto
the drum end and turn it counter-clock-wise
until it clicks firmly into place.
- Connect assembled chamber set with
main body by turning lock clip clockwise
(about 60˚). Place hopper onto guide.
- Place juice drum under chamber set. Plug
power cord into wall outlet.
- Press the switch. Place a few pieces of cut
fruit or vegetables, one at a time into the
guide. Use the food pusher to press the
fruit or vegetables gently down the guide.
Leave the machine on as you feed in the
fruit/vegetables.
Note:
1.
Do not put your finger or other things
5
