Using the ISO Connector

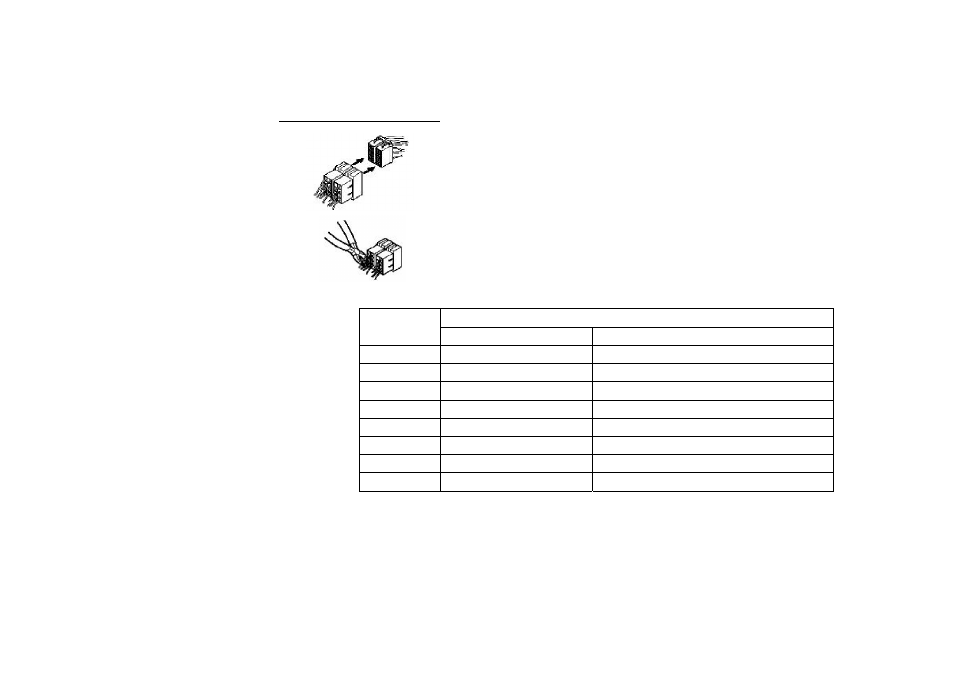

1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
6
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to
this unit.
Cut the connector, connect the colored leads of the power cord to the car battery
as shown in the color code table below for speaker and power cable connections.
Function
Location
Connector A
Connector B
1
Rear Right (+) --- Purple
2
Rear Right (-) --- Purple/Black Stripe
3
Front Right (+) --- Gray
4
Battery 12V (+)/yellow
Front Right (-) --- Gray/Black Stripe
5
ANT/AMP control /blue
Front Left (+) --- White
6
Front Left (-) --- White/Black Stripe
7
ACC+/red
Rear Left (+) --- Green
8
Ground/black
Rear Left (-) --- Green/Black Stripe
