10

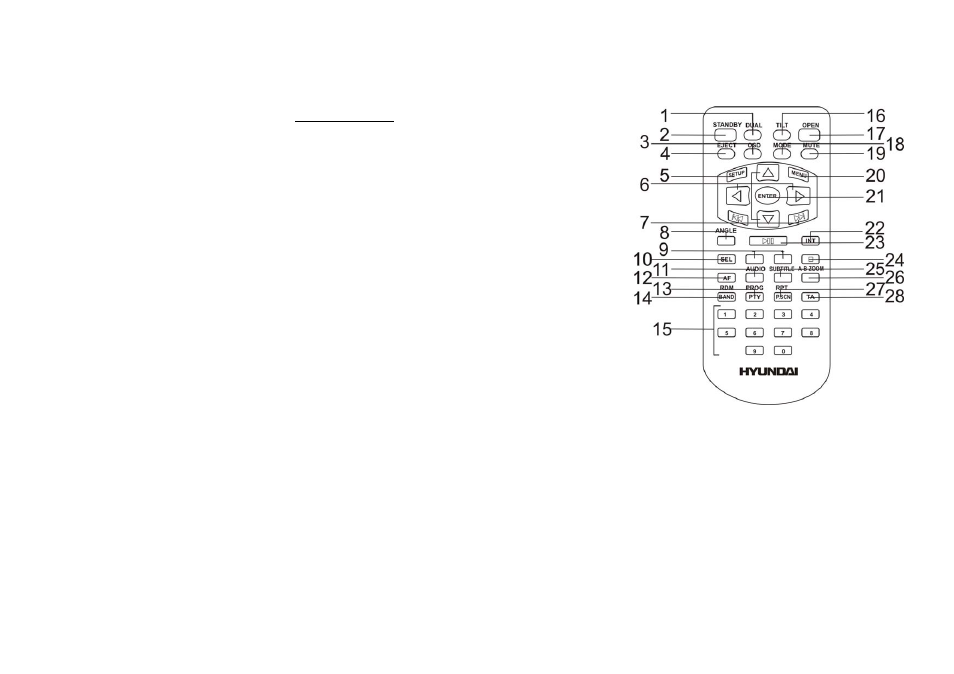

Remote control
1. DUAL button - press it to enter the Dual zone mode for
playing DVD and Radio at the same time.
2. STANDBY button – press it to turn the power on/off.
3. OSD button - Press the OSD button to show the current
mode information on the display.
4. EJECT button - press it to eject the disc.
5. SETUP button – in DVD mode press it to open the setup
menu.
6. Cursor ▲/▼/◄/► buttons
Use the ▲/▼/◄/► buttons to select the menu item.
Use the ▲/▼ buttons to select the title, track.
Use the ◄/► buttons to show next frame; to start
manual/automatic radio station search.
7. / buttons - press them to go to previous/next
track/chapter/title.
8. ANGLE button - press it repeatedly to change the
viewing angle.
9. +/- buttons – when the monitor is opened press these buttons to adjust volume level.
10. SEL button - press it repeatedly to select the audio modes: BASS => TREBLE => BALANCE L-R =>
FADER R-F => BRIGHT => CONTRAST => COLOR => SHARP.
11. AUDIO button – in DVD mode press it to select the audio language.
In VCD mode press it to select the channel: Mono left => Mono right => Mix mono => Stereo.
12. AF button – in Radio mode press it to activate the AF function.
