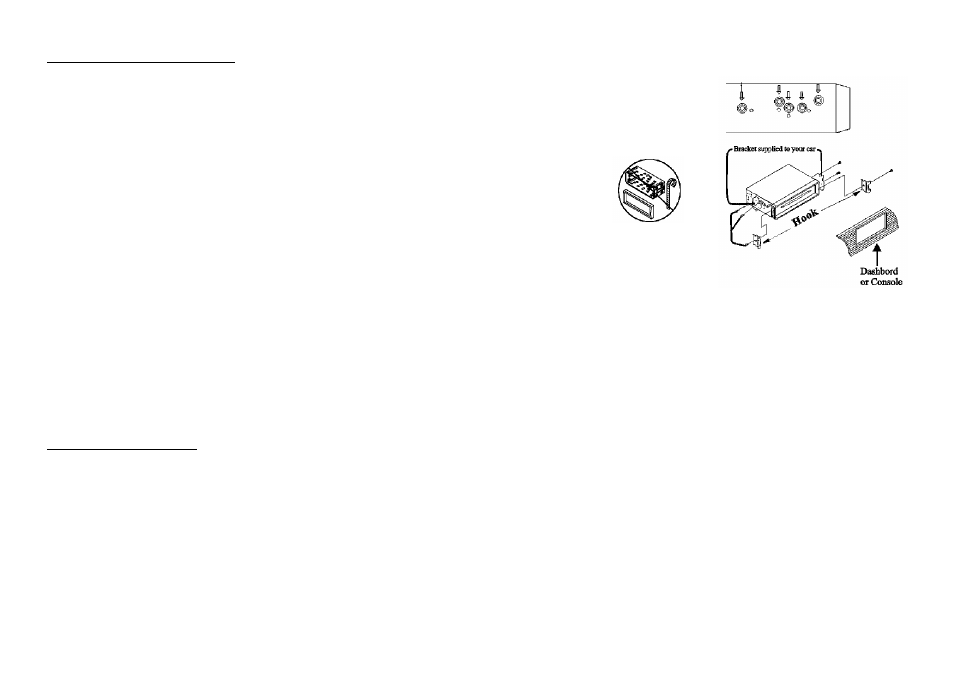

Installation way (method 2)
Installation using the screw holes at both sides of the unit.
1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the
screws at 2 positions at each side.
Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of
the screw holes in the bracket.
2. Screw.
3. Factory radio mounting bracket.
4. Dashboard or Console.
5. Hook (Remove this part).
Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of
installation.
Caution:
The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or
subject it to strong shocks.
The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by
pressing on it with fingernails, pens, screwdrivers, etc.
Note:
If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the
socket on the back of the control panel.
Electrical connections
Speaker wiring notes
Follow the above wiring diagram to install the head unit with new or existing speakers.
• This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the ends of the
unused speaker outputs to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.
6
