Do not interchange the connection of the wiring!!!
For some car models you may need to modify wiring of the supplied power cord as illustrated (modified wiring), or
else the memory of the unit may be lost after you power off. Contact your authorized car dealer before installing this

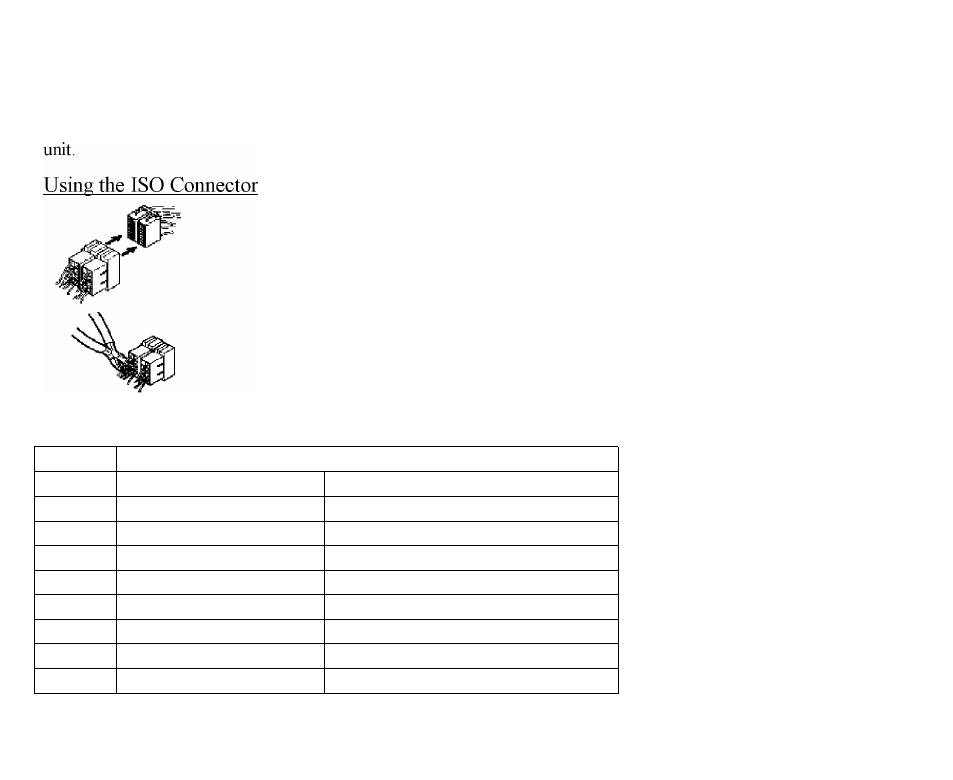

1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to
this unit.
Cut the connector, connect the colored leads of the power cord to the car battery
as shown in the color code table below for speaker and power cable connections.
Location FUNCTION
Connector A Connector B
1 Rear Right(+)—Purple
2 Rear Right(-)—Purple/Black Stripe
3 Front Right(+)—Gray
4 Battery 12V (+)/yellow Front Right(-)---Gray/Black Stripe
5 Auto Antenna/blue Front Left(+)—White
6 Front Left((-)—White/Black Stripe
7 ACC+/red Rear Left(+)—Green
8 Ground/black Rear Left(-)—Green/Black Stripe
