(^mix
^ moving sound
RPR- 4000
Portable FM/AM/SW1-8 band receiver
with TF and USB slots
WWW.
ritm ixrussia. ru

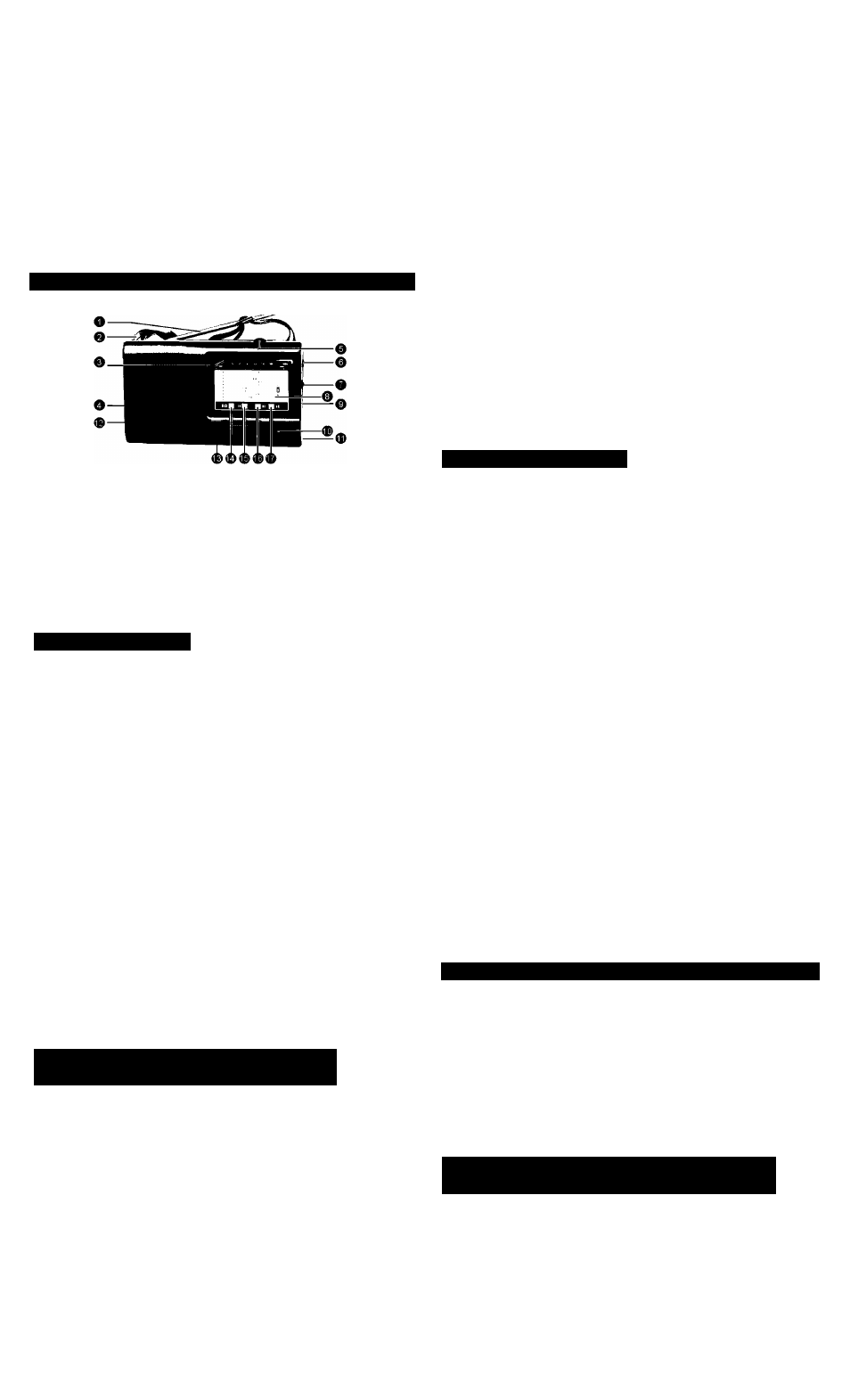

APPEARANCE AND FUNCTION DIAGRAM
Operation instruction for MP3 piayer
1. Insert the U disk to the USB port (12) or insert the TF card into the TF card slot (13).
2. Push the power switch push-pull knob (7) to the position of MP3 to switch on the
power of MP3 and the radio enters the state of MP3 playing. The MP3 indicator light
(3) will be on at the same time.
3. Rotate the volume control knob (6) to adjust the volume to the proper position.
4. Under the play state, press the pause/play button (17) to pause with MP3 playing and
resume MP3 playing by pressing this button again.
5. Selected the sound effect mode you like by pressing EQ button (14). Press EQ button
(14) once to select one sound effect mode in order.
6. Press up selection button (15) to select the previous audio file for play. Press this
button every time to select a previous audio file.
7. Press down selection button (16) to select the next audio file for play. Press this
button every time to select the next audio file. Note: the up selection button and down
selection button can be used for selection of songs for play unless more than 2 MP3
files exist.
8. Please use the earphone to listen to MP3 in order not to affect other people to have a
rest. Insert the earphone to the earphone jack (9) (the speaker inside the radio will be
disconnected automatically) and you can listen to MP3 with the earphone.
9. Push the power button (7) to OFF position to power off the power of the device when
you don't want to listen to Mp3.
Note:
1. The MP3 player of this device only plays flies of MP3 format.
2. This device is not equipped with TF card of U disk (the capacity of TF card of the U disk
should not exceed 8GB. Otherwise, it will affect the playing of MP3).
3. Don't insert TF card and U disk at the same time. This will cause large current consumption
when this device plays Mp3.
TECHNICAL INDEX
1. Telescopic antenna
10. Band switch
1. Frequency range:
2. Back belt
11. Battery slot(overleaf)
FM:87-108
MHz
MW: 530-1600
KHz
3. Tune Indicator light MP3 indication light
12. USB port(overleaf)
SW1 :4.75-5.05
MHz
SW2: 5.95-6.20
MHz
4. AC power supply jack(overleaf)
13. TF card jack(overleaf)
SW3: 7.10-7.30
MHZ
SW4:9.50-9.90
MHz
5. Tune channel knob
14. EQ button
SW5:11.65-12.05
MHZ
SW6:13.60-13.80
MHz
6. Volume control knob
15. up section button
SW7:15.10-15.60
MHz
SW8:17.50-17.90
Mhz
7. Power push-pull knob
16. down selection button
8. Frequency Indication window and pointer
17 pause/play button
9. Earphone jack
POWER SUPPLY
Install the battery
Open the battery cover; install 2 UM1 batteries into the battery box according to the
polarity indicated inside the battery slot and put the battery cover in place.
Prompt: When the power is used up, the volume of the radio will turn down and the sound
quality becomes unstable or MP3 player can not play normally, please replace with the
new battery at once (The radio must be powered off when the battery is replaced).
Note: I.The old and new battery or the battery of different types should not be used together.
2.Don't try to charge, heat or break down the battery in order to prevent the leakage of
electrolyte or explosion,
3.If the radio is not used for a longtime, please take out the battery in case that the
electrolyte corrodes the elements inside the device.
Use of AC power su pply
This radio can use 220V AC power supply as the power provider. The plug of the
power cord is inserted into the AC power jack of the device and another end is inserted
into the socket of 220V AC power supply.
When the 220V power cord is inserted into the AC power jack, the battery inside the
device is disconnected automatically.
Use of antenna
1 .The magnetic antenna inside the radio is used to listen to MW. Rotating the radio
body can achieve best receiving effect.
2.
To listen to FM and TV sound program, please pull out the telescopic antenna and
obtain the optimal receiving effect by changing the length and direction of the
antenna.
3.
To listen to SW radio, please pull out the telescopic antenna and keep it vertical to
obtain best receiving effect.
OPERATION INSTRUCTION FOR
RECEIVING
Operating instructions of radio
1. Push the power push-pull knob (7) to FM or AM position to switch on the radio.
2. Rotate the volume control knob (6) to adjust the volume to the proper position.
3. Push the power push-pull knob (7) to FM position to receive the FM program. Toggle
the band switch (10) to select the program of FM, TV sound TV1, and TV sound TV2.
4. Push the power push-pull knob (7) to AM position to receive the AM program. Toggle
the band switch (10) to select the program of MW and SW (SW1-8).
5. Rotate the tune channel knob (5) and observe the frequency indication window and
the pointer (8) to search the radio program you want to listen.
6. When the channel is well received or the signal of the channel is strong, the tune
Indicator light (3) will be on.
7. Please use the earphone to listen in order not to affect other people to have a rest.
Insert the earphone to the earphone jack (9) (the speaker inside the radio will be
disconnected automatically) and you can listen to the program with the earphone.
8. When you don't want to listen, please push the power push-pull knob (7) to OFF
position, the power supply of the radio is switched off.
9. Please pull out 220V power cord from the AC socket if this device is out of user for a
long period of time.
2. S/N sensitivity:
FM:30dB«20PV
MW:26dBi3mV/m SW:26dBi 100PV
3. SNR:
FM:98 MHz?J48dB AM:1000 KHz ;'40dB
4. Single signal selectivity
AM:1000KHz±9KHz7i10dB
5. Quiescent current:
RADIOi25mA MP3^80mA
(Insert the card to play and pause and VOL dial turns down.)
6. Maximum output power :5-100mW
7. Maximum consumption current:^300mA
8. Play format of this radio: MP3 format
9. USB port:
Compatible with USB 1.1/USB2.0 standard
(SD card, MINI card and MMC card are supported with card reader and card sleeve.
The capacity of the card should not be larger than 8GB).
10. TF card slot: support TF card
(The capacity of the card should not be larger than 8GB).
11. Distortion degree of MP3: i1%
12. MP3 SNR: 5::43dB
13. Power supply:
Battery: 2 UM1 batteries
AC power supply: 220V/50Hz
14. Built-in speaker: 4>92mm/12 0/2W
15. Earphone:® 3.5mm 32a
16. Size: about 208 x124 x 52mm
17. Weight: about 643g
MAINTENANCE METHOD OF THE RADIO
1. Avoid violent shock or fall into the ground.
2. Don't place it in the place with high temperature, dust, humidity and direct sunlight.
3. Avoid wiping the radio with liquid containing corrosive chemicals and hard cloth so as
to damage the surface of the radio.
4. Do not use the old and new battery together. When the volume of the radio becomes
small or the sound distorts, please replace the battery.
5. If the radio is out of use for a long period of time, please take out the battery to
prevent the corrosion on Inside parts of the radio by the leakage of battery liquid.
6. The product of our company is adjusted well with precision instrument before leaving
the factory. Please do not dismantle the radio to adjust the inside element.
COMMONLY SEEN PROBLEMS AND
TREATMENT METHOD
. As the electric equipment such as TV set, florescent lamp and electric motor can
produce strong interference to the MW and SW of the radio, please keep a certain
distance with above electric equipments when the radio is used to avoid the
interference.
. The building with reinforcing steel bar structure and high buildings have the effect to
screen the broadcast signal. It is suggested to use the radio close to the window so
as to improve the receiving effect.
. If the receiving site is close to the signal of BB pager station, the receiving of SW will
be interfered seriously. The receiving effect may be improved by shortening the length
and adjusting the angle of the telescopic antenna.
