Status – Инструкция по эксплуатации GermanMAESTRO SV 6509 Active
Страница 5
7
6
STATUS
SV 4009 / SV 5009 / SV 6509

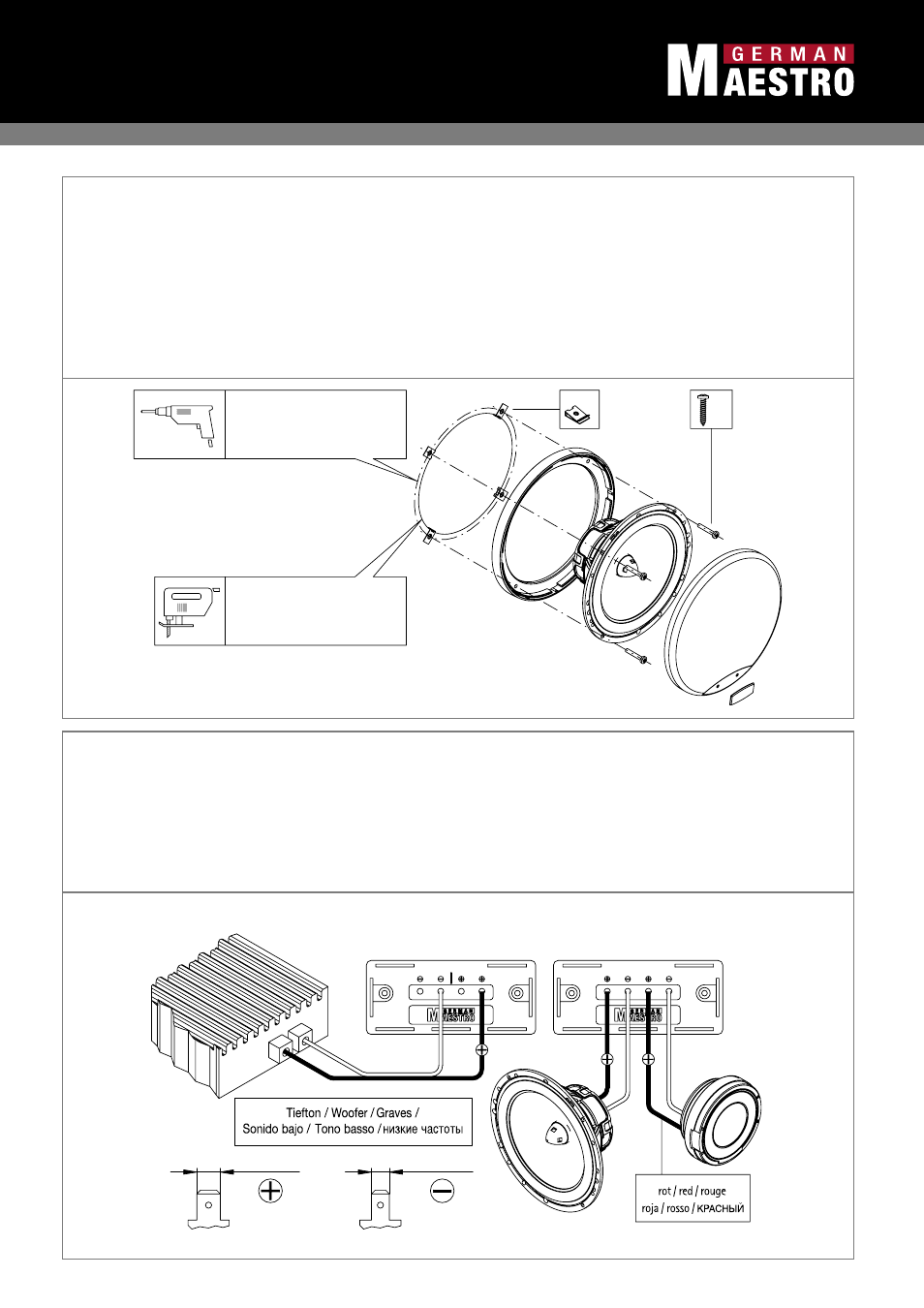

Anschlusshinweise Frequenzweiche
Connecting instructions – crossover
Consignes de branchement du filtrage de fréquence
Indicaciones de conexión del diplexor
Istruzioni di collegamento del filtro passivo
Instrukciå po podklüçeniü hastotno-razdelitel´nogo Fil´tra
6.3mm
4.8mm
TW
WF
IN
WF
TW
IN
OUT
WF
OUT
WF
TW
TW
5
4
SV6509 = Ø 145.0mm
SV5009 = Ø 115.0mm
SV4009 = Ø 88.0mm
Ø 4.5
SV6509 = Ø 158.0mm
SV4009 = Ø 99.0mm
SV5009 = Ø 128.0mm
4x
4x
Einbauhinweise Tieftöner mit Aufbauring und Gitter
Mounting instructions - woofer with surface ring and grille
Instructions de montage des graves avec anneau de montage grille
Indicaciones de montaje del altavoz de graves con marco exterior y rejilla
Istruzioni di montaggio di un altoparlante per basse frequenze con l’impiego
dell’annello distanziatore e della rete di protezione
Instrukciå po sborke nizkohastotnyx reproduktorov s ispolæzovaniem
montaΩnogo kolæca i zawitno-dekorativnoj setki
