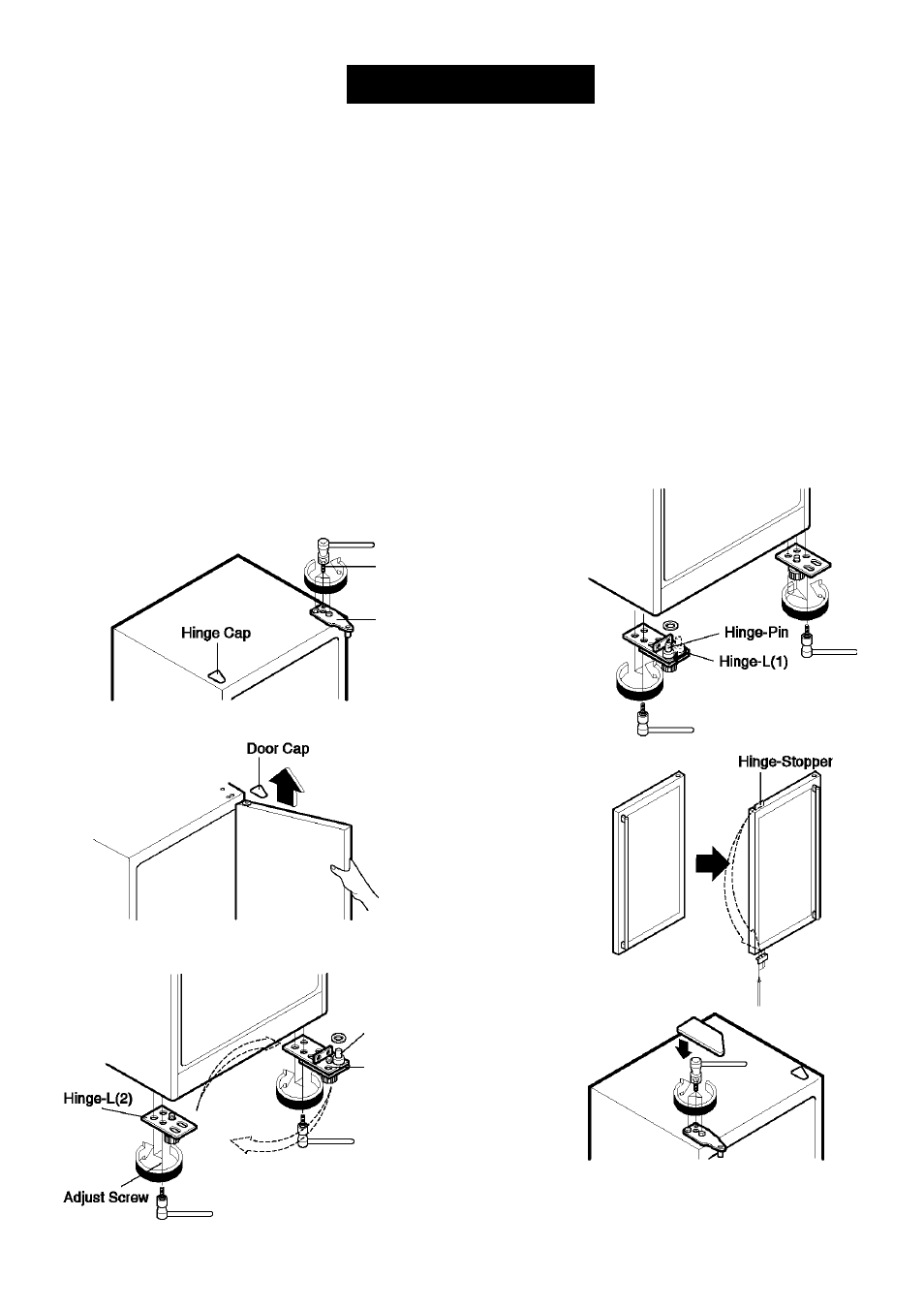

Door Reversal
1) HINGE COVER Disconnection
2) HINGE CAP Disconnection
3) BOLT Unfasten and HINGE Disconnection
4) DOOR Disconnection
5) DOOR CAP Disconnection
6) HINGE- L(1) Disconnection
7) HINGE- L(2) Disconnection
Adjust Screw Disconnection and Location Movement Assembly.
8) HINGE- L(1) and HINGE- L(2) Location Movement Assembly.
9) HINGE- PIN Disconnection Location Movement. Outer HOLE
10) DOOR 180° Rotation
11) HINGE STOPPER Disconnection Location Change Assembly
12) DOOR SET Attachment
13) HINGE Assembly
14) HINGE COVER Attachment
15) HINGE CAP Attachment
16) DOOR CAP Attachment.
Hinge
^
'
Cover
Bolt
Hinge
Hinge-Pin
Hinge-L(1)
