Installation
If the height of
freezer compart­
ment door is
different from the
height of Refrig­
erator compart­
ment door
After ieveiing the
door height
Next
Door replacement
Mount them in the reverse sequence of removal after they pass through the access door.

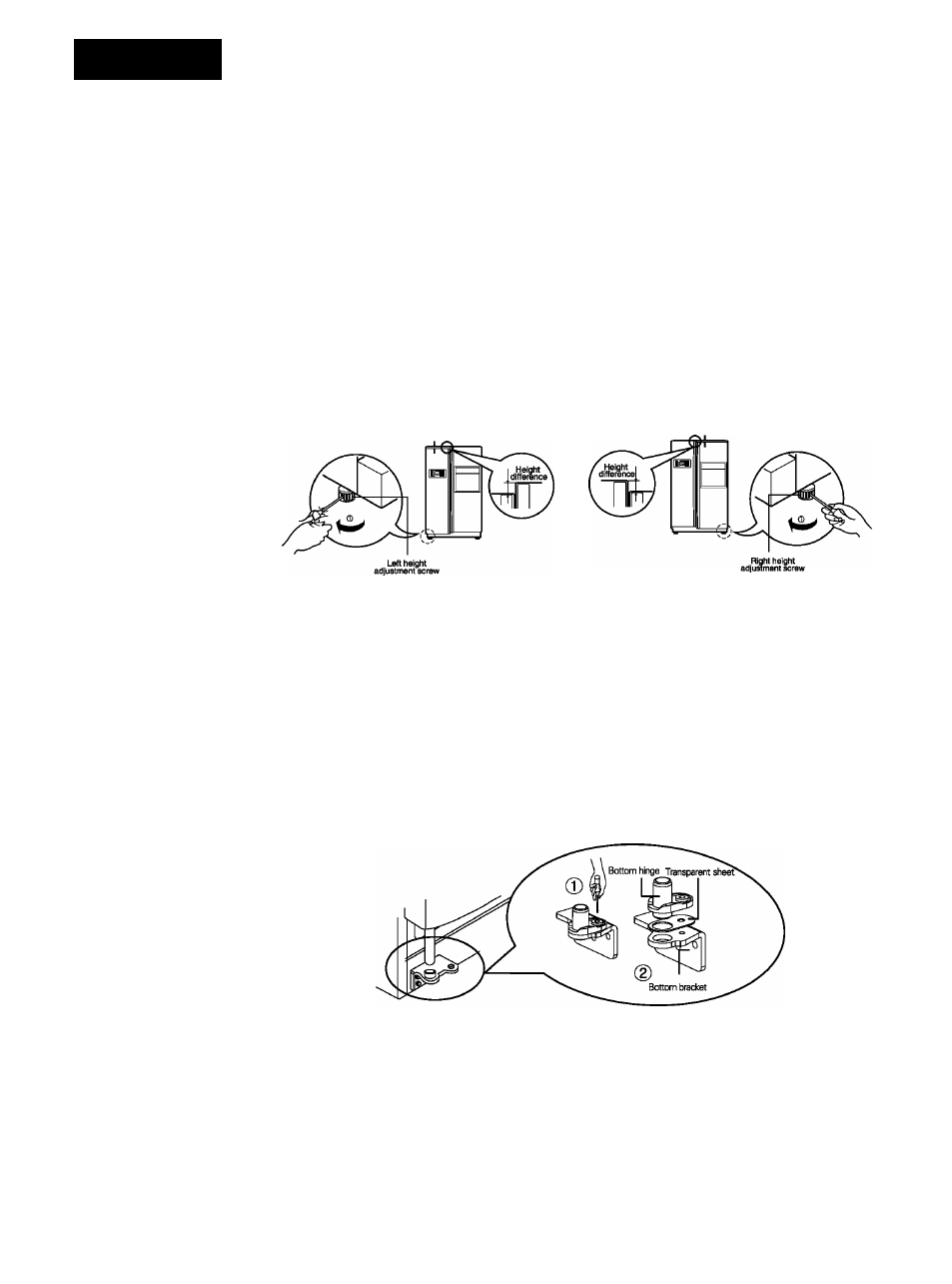

Height adjustment
If the freezer compartment
door is lower than the refrig­
erator compartment door
Level the door by inserting flat(-type)
driver into the groove of the left
height adjusting screw and rotate it
clockwise! ®) ■
Height difference
If the freezer compartment
door is higher than the refrig­
erator compartment door
Level the door by inserting flat(-type)
driver into the groove of the right
height adjusting screw and rotate it
clockwise! ®) ■
Height difference
When the freezer door does not align with
the height of the refrigerator door
Even if the height can not be aligned by using the height adjustment
screw, insert the transparent sheet supplied with the product.
• Separate the door with the lower height, use the !+) type screwdriver to
unscrew the screw at the bottom hinge as shown at Figure ® , insert the
transparent sheet between the bottom hinge and the bottom bracket, and then
fix it with the screw as shown at Figure @ .
• Insert more transparent sheets enough to align the height. !4 sheets ard supplied
in total.)
The refrigerator doors will close smoothly by heightening the front side by adjusting the
height adjusting screw.If the doors do not close correctly,performance maybe
1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their
proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord !or plug) to the outlet. Don't double up with other
appliances on the same outlet.
