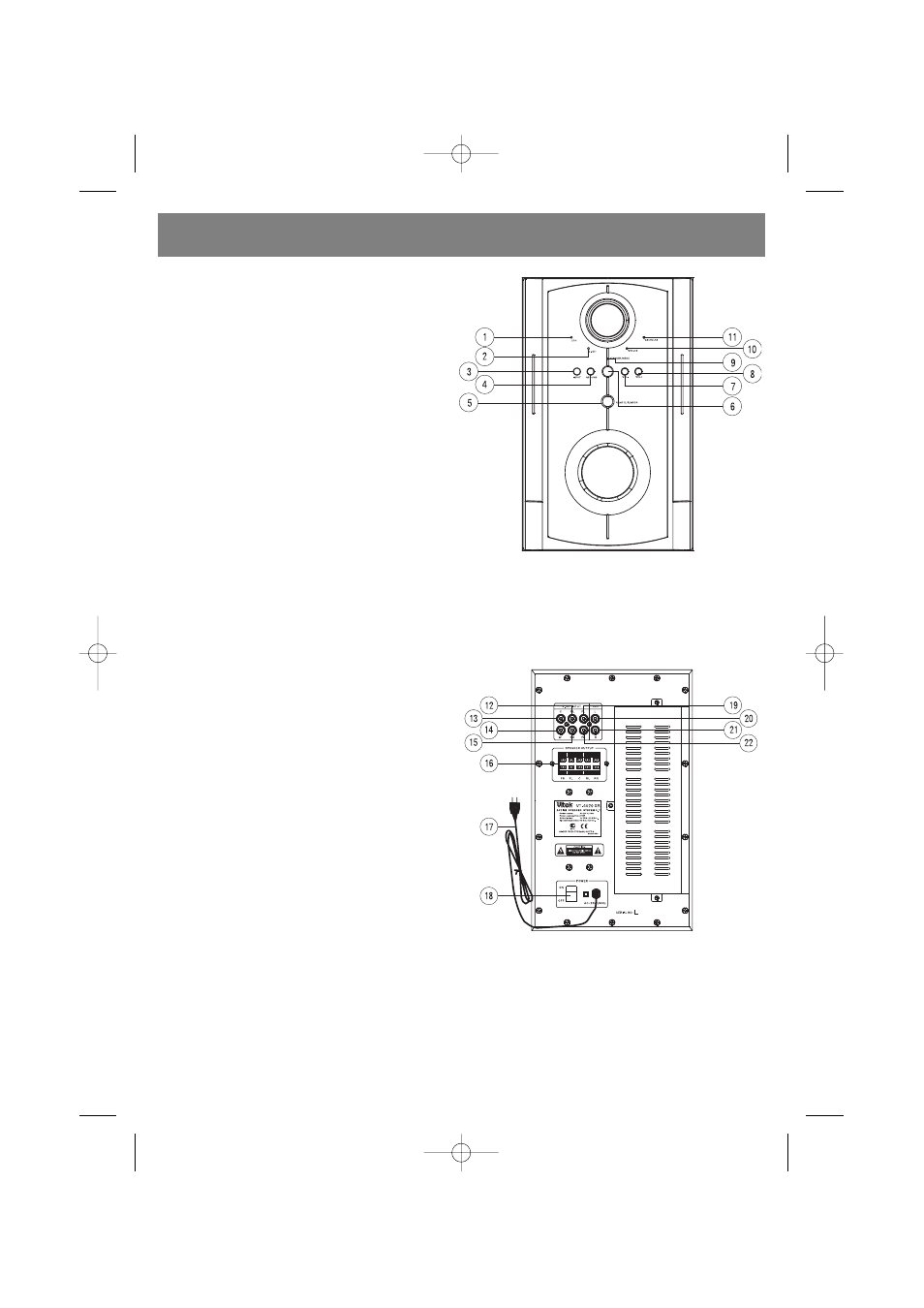

FRONT PANEL
CONTROLS AND FUNCTIONS
1. 2CH: 2 Channel Input Indicator.
2. 5.1CH: 5.1 Channel Input Indicator.
3. INPUT Button.
4. QSOUND: Surround Sound select button.
5. REMOTE SENSOR: Remote Receiver.
6. STANDBY: Power Standby.
7. VOL : Volume Down.
8. VOL+: Volume Up.
9. MUTE: Power Standby and Mute Indicator.
10. QSound: virtual 3D Stereo Indicator.
11. QSurround: virtual 5.1 Stereo Indicator.
REAR PANEL CONTROLS AND FUNCTIONS
12. 5.1CH Rear Left Audio Input
13. 5.1CH Centre Audio Input
14. 5.1CH Subwoofer Audio Input
15. 5.1CH Rear Right Audio Input
16. Speaker Output:
FR: Front Right Speaker Output
FL: Front Left Speaker Output
C: Centre Speaker Output
RL: Rear Left Speaker Output
RR: Rear Right Speaker Output
17. AC Power Cord
18. Power On/Off Switch
19. 5.1CH Front Left Audio Input
20. Stereo Left Audio Input
21. Stereo Right Audio Input
22. 5.1CH Front Right Audio Input
