USER’S MANUAL
16
TV
How to use the remote control
Before using the remote controller, please insert correct type of batteries into the battery compartment. The remote
controller uses 2x1.5 V/AAA batteries. Please insert the batteries as indicated below. Remove battery compartment
cover.
Insert 2 batteries as per the polarities marked inside the battery compartment.
Replace the battery cover.
f the remote controller does not function, please check the batteries or change the batteries before consulting technical
personnel. To properly use the remote controller, please put its front emitter right at the receiving lattice (remote sensor)
of the main system. The normal and effective distance for operating the system by the remote controller is 7 meters
within the system and at 30 angle left or right diverged away from the system.
7. SYSTEM CONNECTION INSTRUCTIONS

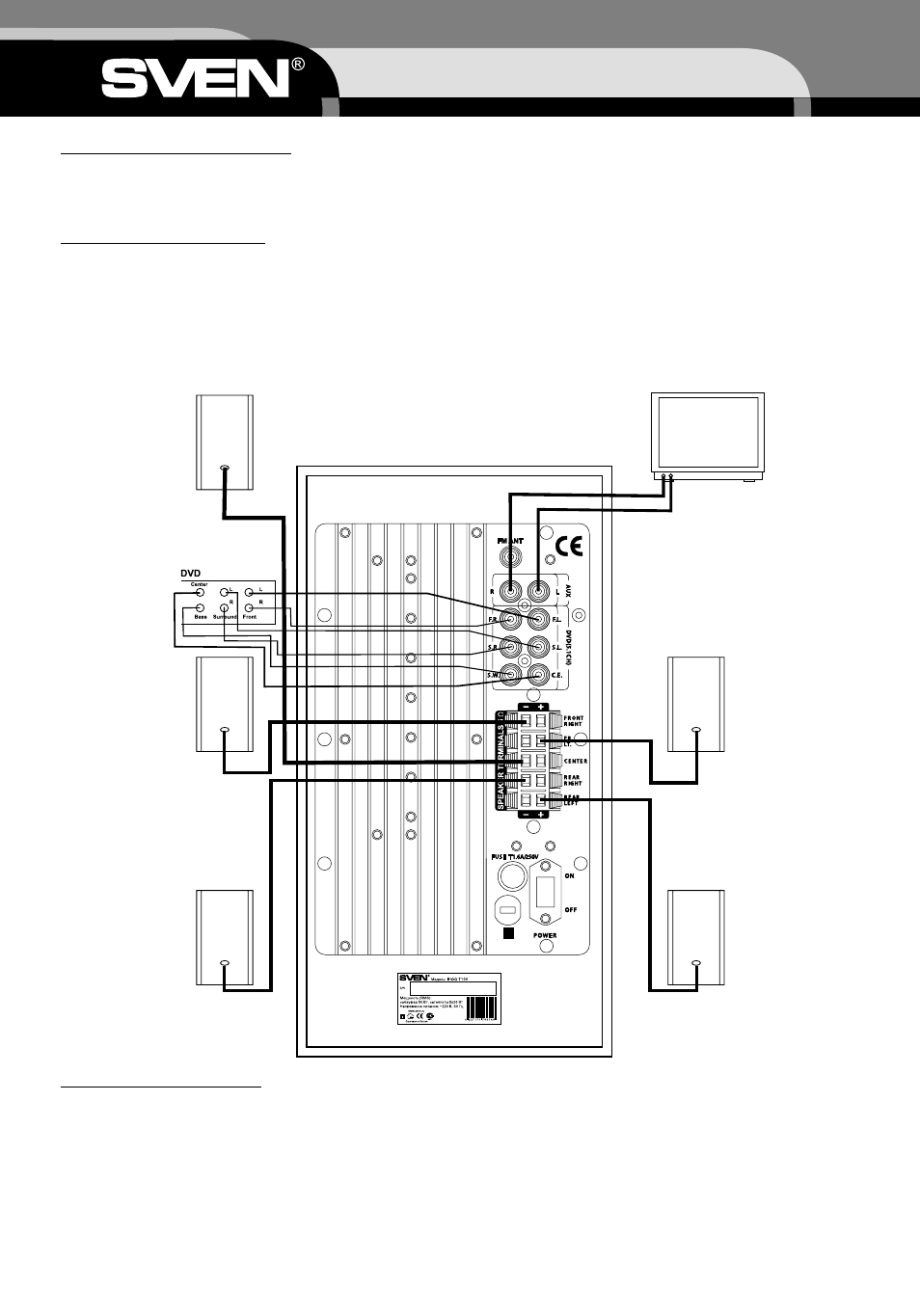

Connection with the sound source and connection with the satellites shown in fig:
Connection with satellites
Use the speaker output jacks on the rear panel of subwoofer unit to connect the satellite speakers.
Lengths of cable for connection left and right front satellite should be are equal among themselves. Lengths of cable
for connection left and right rears satellite should be are equal among themselves.
Notes:
• Be sure to match the speaker cord to the appropriate jacks on components: «+» to «+» and «-» to «-».
• Centre speaker is magnetically shield.
FL
RR
FR
RL
CEN
