5. THE SYSTEM CONNECTION INSTRUCTION
WARNING! All components should be switched off before connection.
5.1 CONNECTION TO THE SOUND SOURCE
While connecting to the sound source, use the RCA pin type connecting line.
Please connect correctly the marked «left» jack to other marked «left» plug of other components.
5.2 LOUDSPEAKERS CONNECTON

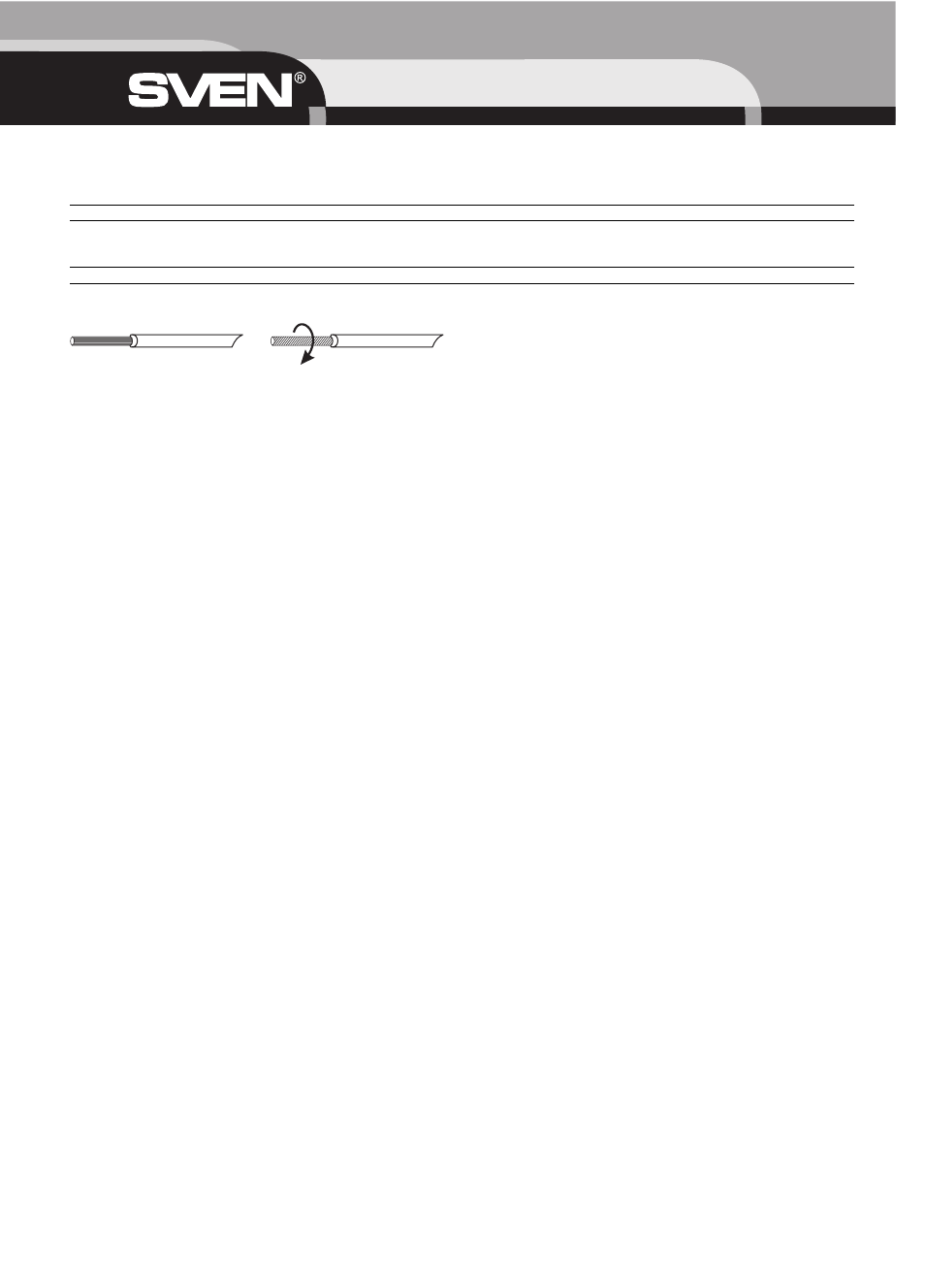

Don’t shortcircuit acoustics cable ends. Always watch polarity. For better wire contact with clips, strip about 10 mm of insulation and twist
it as shown below in the picture.
Notes on connection to loudspeakers.
For cable connection push the clip and insert wire end inside, then release the clip.
6. SYSTEM INSTALLATION AND OPERATION
First make sure that all connections are correct and then switch on the speaker system.
1. Power on and off
Connect the power plug to the power socket of active loudspeaker and press power button.
2. Master and Tone Volume Control
Press the «Function» button once, twice or three times, the front panel LED will change from Green, Orange, and Red color respectively.
Under «Green» LED, press «VOL+» or «VOL-» button to adjust the Master Volume.
Under «Orange» LED. press «VOL+» or «VOL-» button to adjust the Bass Tone.
Under «Red» LED, press «VOL+» or «VOL-» button to adjust the Treble Tone.
If the Treble/Bass tones are being adjusted, press and hold the «Function» button for 3 seconds, and the system will bypass to original
sound source.
