Sven HT-475 - Инструкция (Страница 18)

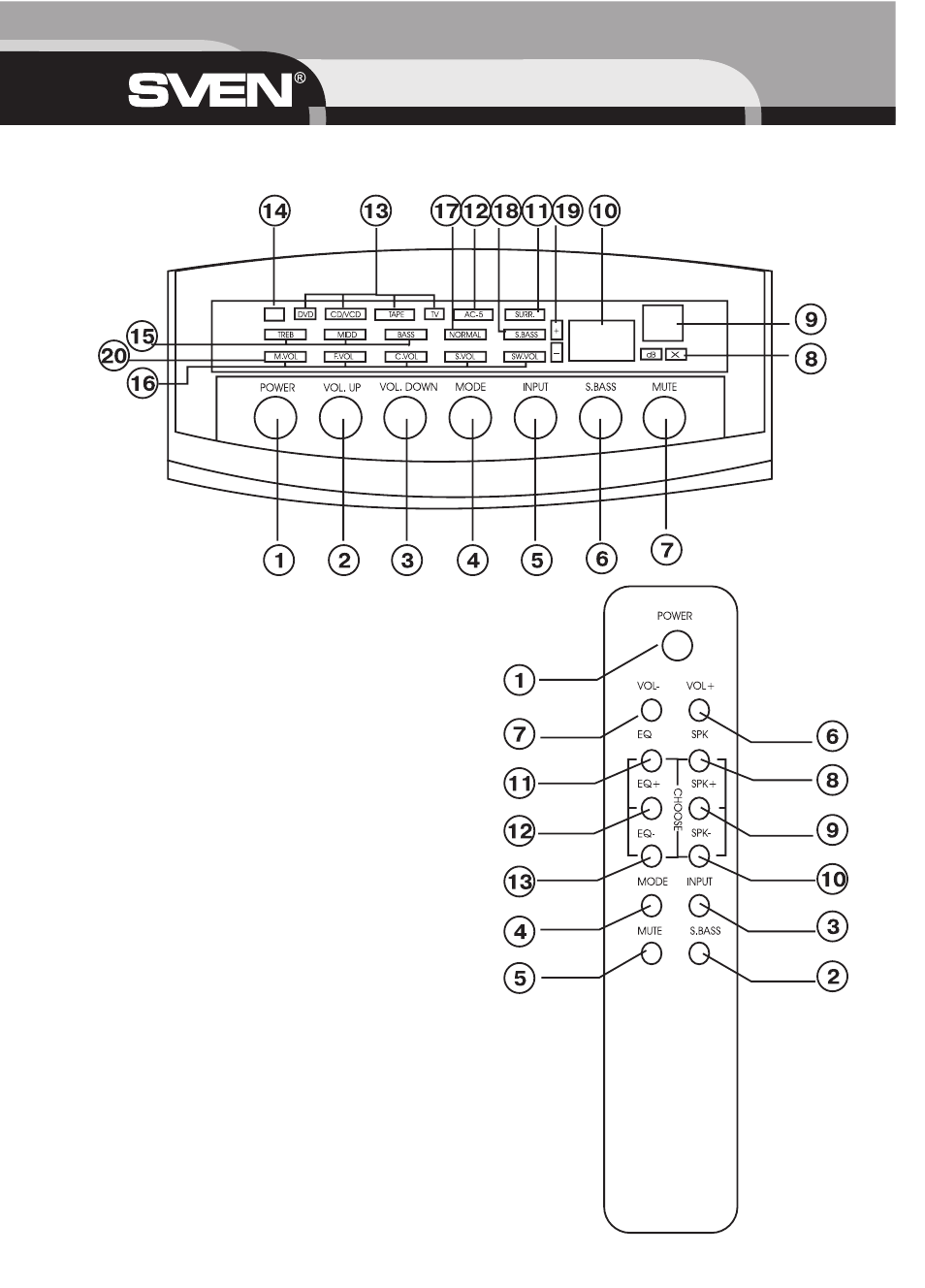

Front panel illustration
(1) Power
(2) Master volume up
(3) Master volume down
(4) AC-3/SURROUND/STEREO mode
(5) Input mode
(6) S.BASS
(7) MUTE
(8) MUTE indicator light
(9) Remote control receiver
(10) Volume display
(11) SURROUND mode indicator light
(12) AC-3 MODE indicator light
(13) STEREO mode indicator light
(14) POWER indicator light
(15) BASS/ TREBLE/ MIDDLE indicator light
(16) FRONT/SURROUND/CENTER/SU BWOOFER indicator light
(17) STEREO indicator light
(18) S.BASS indicator light
(19) ±DB indicator light
(20) Master volume indicator light
Remote control illustration
(1) Power switch
(2) S.BASS switch
(3) Input mode choice
(4) AC-3/SURROUND/STEREO mode choice
(5) MUTE
(6) Master volume up
(7) Master volume down
(8) (9) (10) AC-3 channel choice and volume adjustment
(11) (12) (13) BASS/ TREBLE/ MIDDLE treble choic
and volume adjustment
