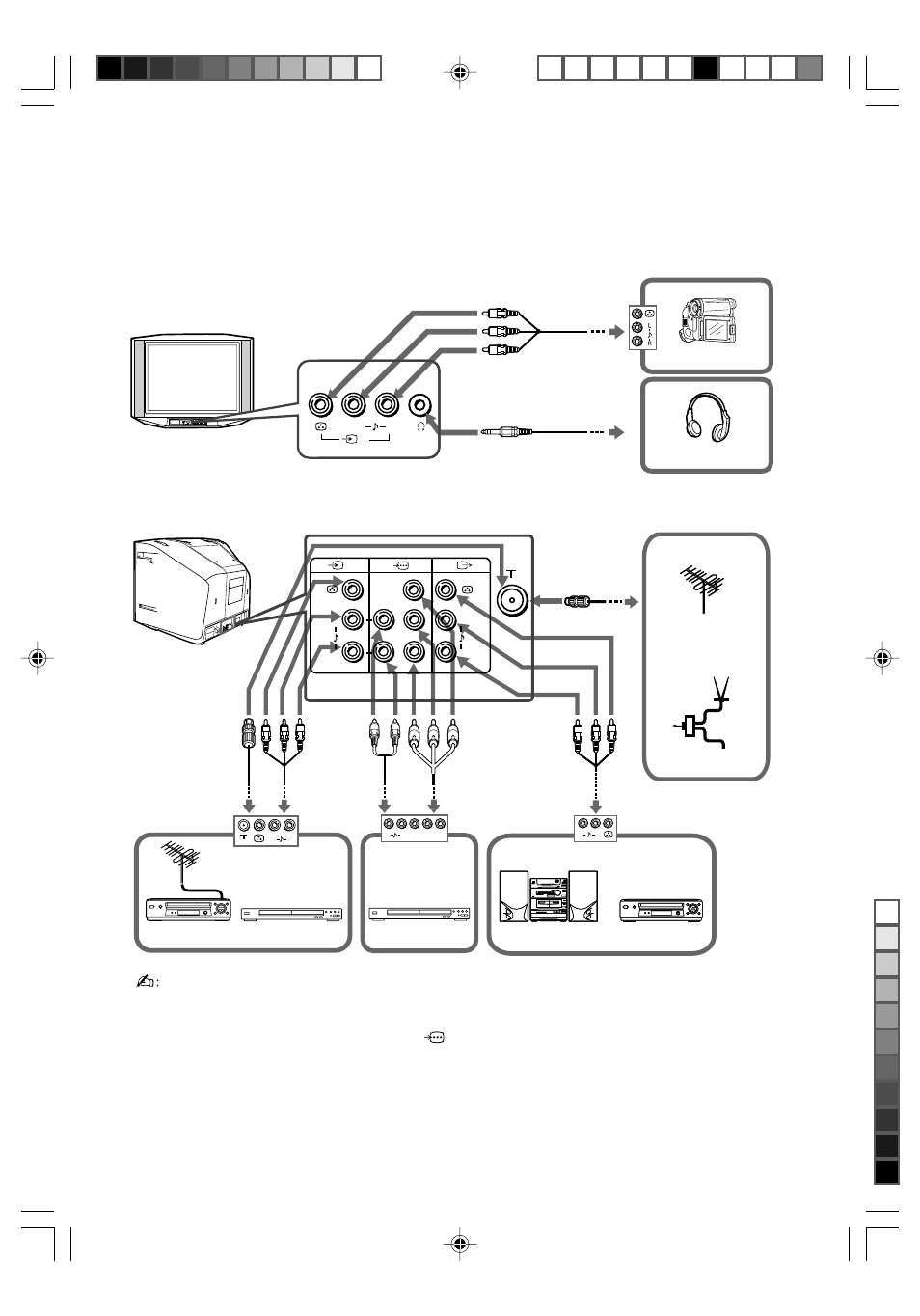

F Connecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
Connecting to the TV (front)
Connecting to the TV (rear)
Camcorder
Audio/Video
cable
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see M).
• If your DVD player can output interlace and progressive mode signals, select the
interlace output when connecting to (component video input) on your TV. Your TV
can receive either 525i/60Hz or 625i/50Hz interlace signals.
• The component video terminals on your DVD player are sometimes labeled Y/C
B
/C
R,
Y/P
B
/P
R,
Y/C
b
/C
r
or Y/B-Y/R-Y.
• If you select “DVD” on your TV screen, the signal from the T (monitor output)
terminals will not be output properly. This does not indicate a malfunction.
Audio
cable
Audio/
Video cable
Component
Video cable
Antenna
cable
VCR
or
If cannot receive
FM signal
VCR DVD player
Audio/
Video cable
L R (MONO) 2 L R (MONO)
2
Headphones
DVD player
Antenna
cable
FM
signal
Antenna
selector
TV signal
Audio System
TV, CATV, Satellite
