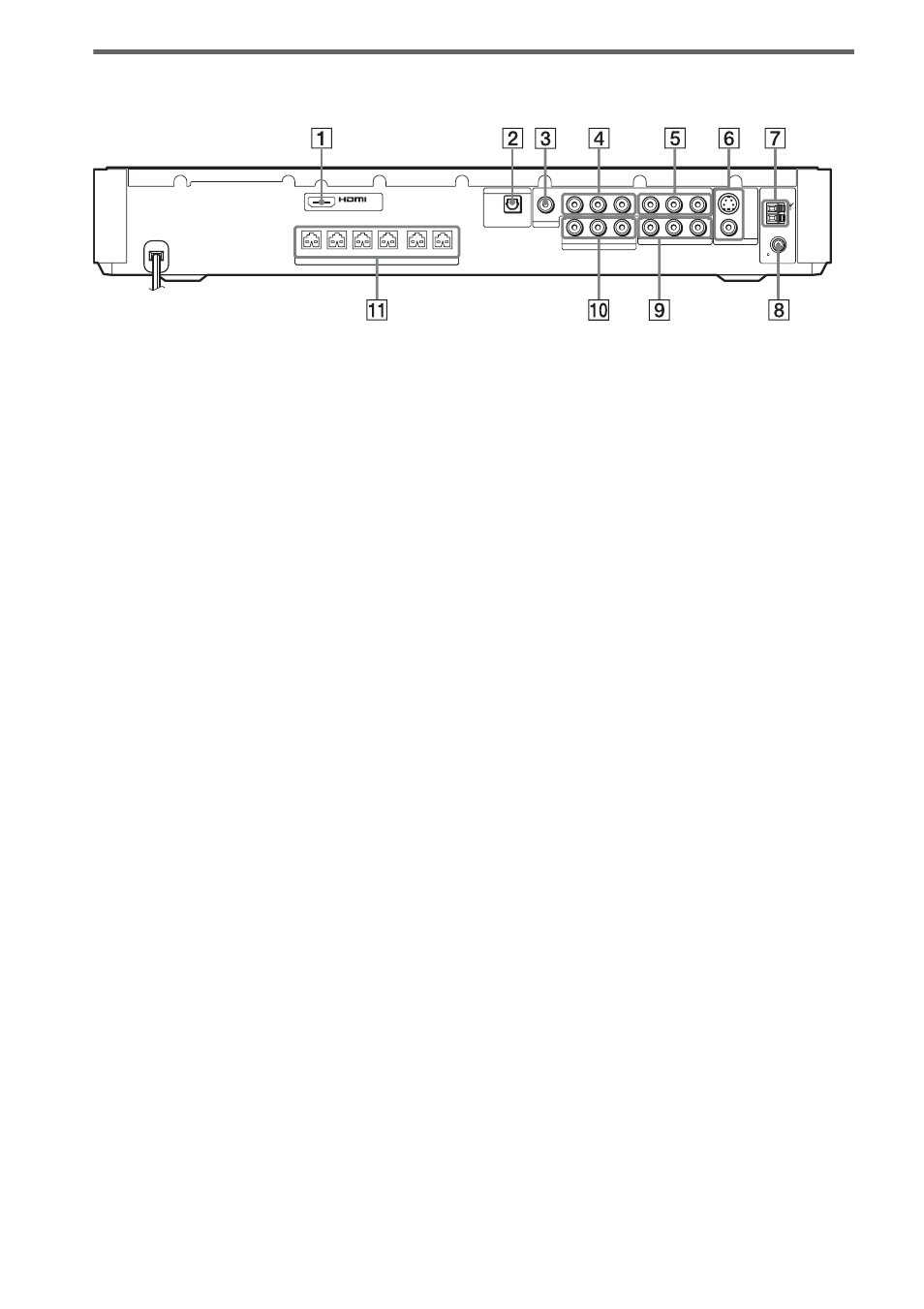

Задняя панель
A Гнездо HDMI OUT (27)
B Гнездо TV/VCR 2 (OPTICAL DIGITAL
IN) (31)
C Гнездо TV/VCR 1 (DIGITAL IN
COAXIAL) (31)
D Гнезда TV/VCR 1 (AUDIO IN R/L,
VIDEO IN) (31)
E Гнезда TV/VCR 1 (COMPONENT
VIDEO IN) (31)
F Гнезда MONITOR OUT (S VIDEO/
VIDEO) (27)
G Разъем AM (17)
H Гнездо COAXIAL FM 75
Ω (17)
I Гнезда COMPONENT VIDEO OUT (27)
J Гнезда TV/VCR 2 (AUDIO IN R/L,
VIDEO IN) (31)
K Гнезда SPEAKER (17)
AM
COAXIAL
FM
75
SPEAKER
FRONT R
FRONT L
SUR R
SUR L
CENTER
WOOFER
COMPONENT VIDEO OUT
TV/VCR2
TV/VCR2
TV/VCR1
MONITOR OUT
COMPONENT VIDEO IN
Y
P
B
/C
B
P
R
/C
R
Y
P
B
/C
B
P
R
/C
R
R
L
AUDIO IN
VIDEO IN
DIGITAL IN
COAXIAL
OPTICAL
DIGITAL
IN
R
L
AUDIO IN
VIDEO IN
VIDEO
S VIDEO
(DVD ONLY)
OUT
(DVD ONLY)
