19
GB

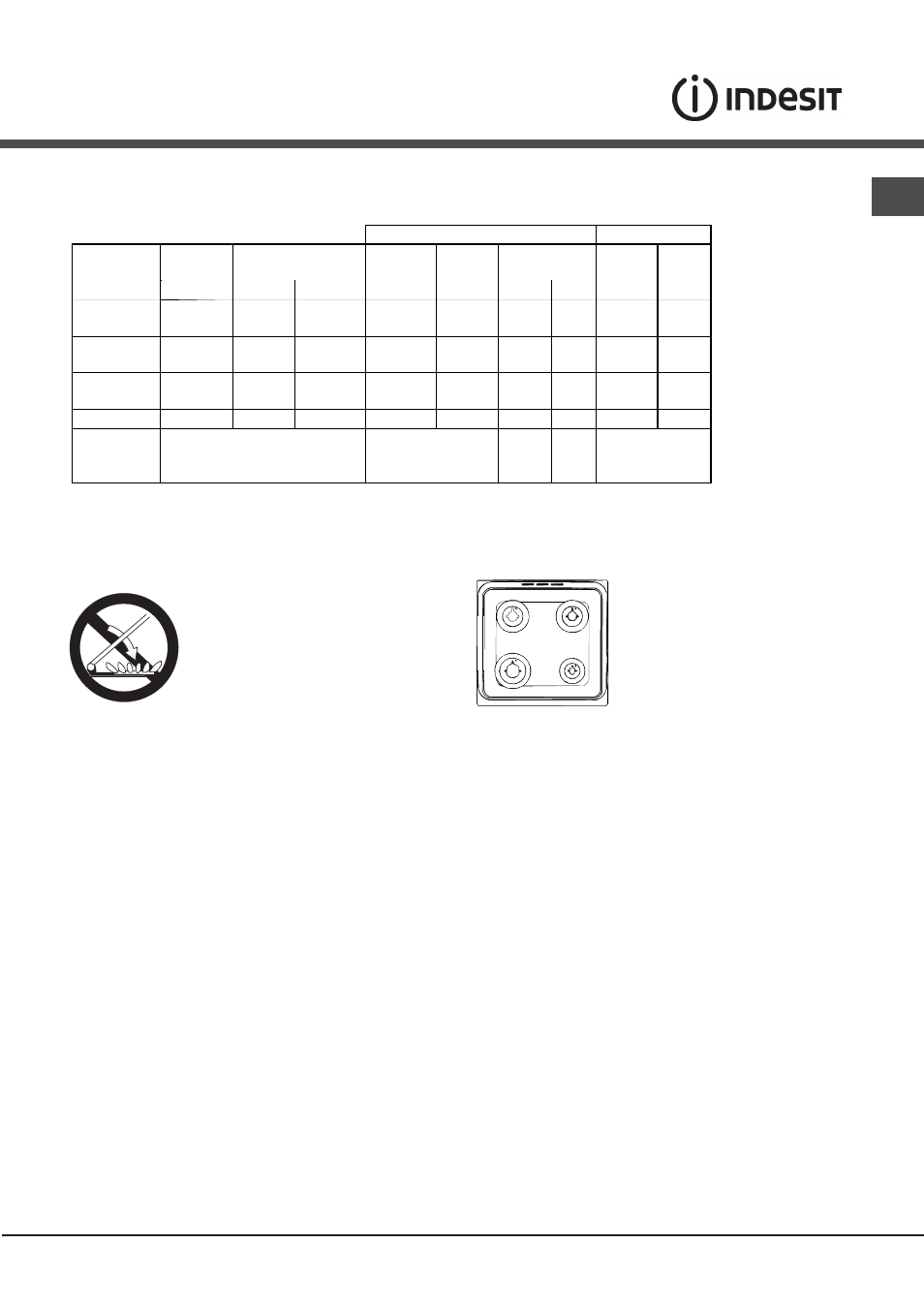

Table of burner and nozzle specifications
Table 1 Liquid Gas Natural Gas
Burner Diameter
(mm)
Thermal Power
kW (p.c.s.*)
By Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
Nominal Reduced (mm) (mm) *** ** (mm)
Fast
(Large)(R)
100 3.00 0.7 41 86 218 214 116 286
Semi Fast
(Medium)(S)
75 1.90 0.4 30 70 138 136 106 181
Auxiliary
(Small)(A)
55 1.00 0.4 30 50 73 71 79 95
Oven - 2.60 1.0 52 78 189 186 119 248
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
* At 15°C 1013 mbar-dry gas *** Butane P.C.S. = 49,47 MJ/Kg
** Propane P.C.S. = 50,37 MJ/Kg Natural P.C.S. = 37,78 MJ/m³
S S
R A
WARNING! The glass lid can WARNING! The glass lid can WARNING! The glass lid can WARNING! The glass lid can WARNING! The glass lid can
break in if it is heated up. Turn
break in if it is heated up. Turn break in if it is heated up. Turn break in if it is heated up. Turn break in if it is heated up. Turn
off all the burners and the
off all the burners and the off all the burners and the off all the burners and the off all the burners and the
electric plates before closing
electric plates before closing electric plates before closing electric plates before closing electric plates before closing
the lid. *Applies to the models
the lid. *Applies to the models the lid. *Applies to the models the lid. *Applies to the models the lid. *Applies to the models
with glass cover only.
with glass cover only. with glass cover only. with glass cover only. with glass cover only.
KN6G27/RU
MVK6 G1 RF MVK6 G1 RF MVK6 G1 RF
