English -

Connecting Anynet+ Devices

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s

remote.
The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has

this feature, check if there is an Anynet+ logo on it.

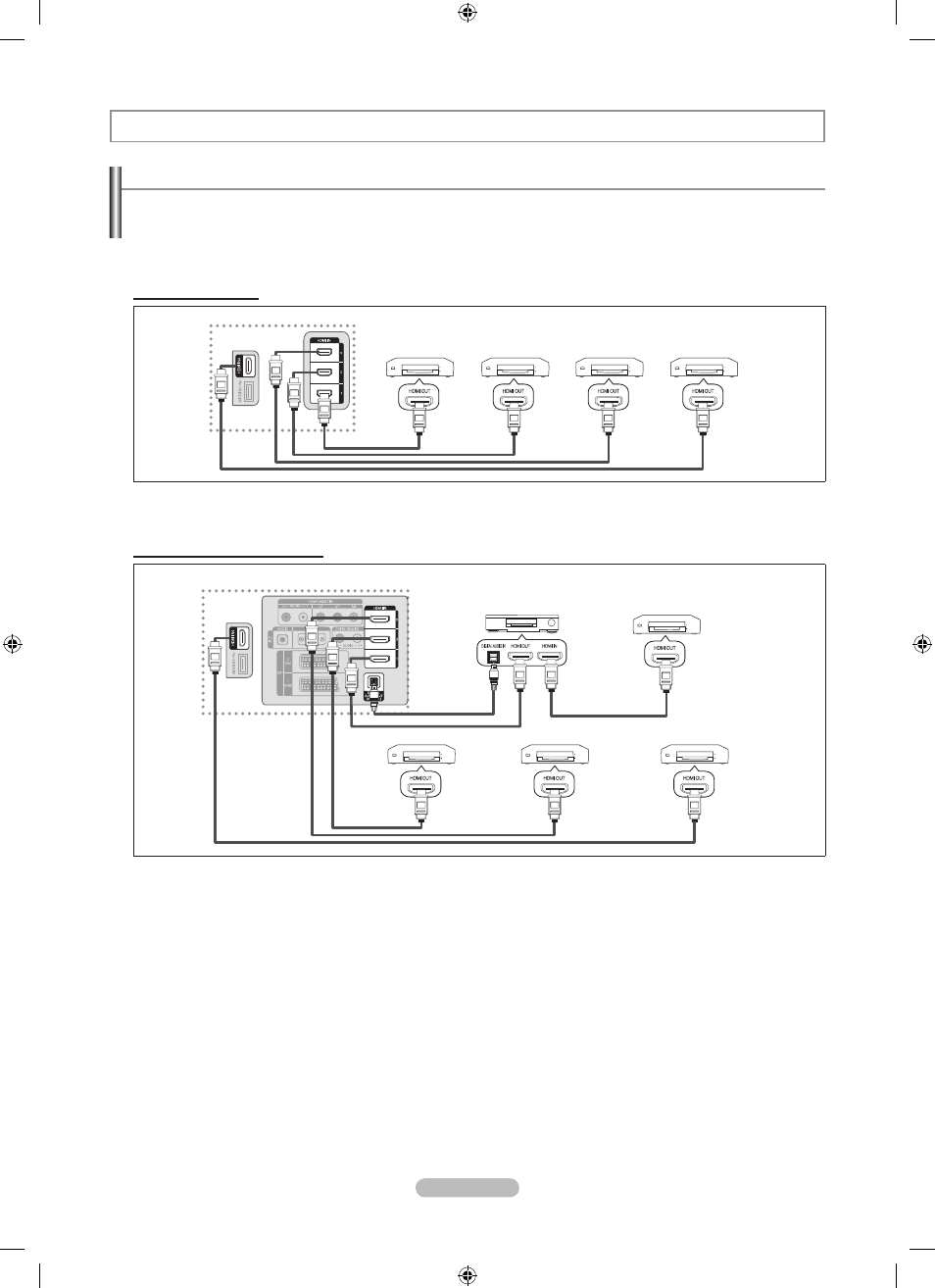

To connect to a TV

1. Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+

device using an HDMI cable.

To connect to Home Theater

1. Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet+

device using an HDMI cable.

2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI

cable.
Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the Home

Theater.

When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home

Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the Digital Audio

Out (Optical) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater,

not the TV.

Connect only one Home Theater.

You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.

Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

N

N

N
N
N
N

About Anynet+

TV

Anynet+ Device

HDMI .

Cable

Anynet+ Device 2

Anynet+ Device

Anynet+ Device 4

HDMI .

Cable

HDMI .

Cable

HDMI .

Cable

TV

Optical

Cable

Home Theater

HDMI .

Cable

Anynet+ Device

HDMI . Cable

HDMI .

Cable

Anynet+ Device 2

Anynet+ Device

Anynet+ Device 4

HDMI .

Cable

HDMI .

Cable
