62
38
38
3
2
3
2
24
20
21
22
11
23
21
28
27
20
25
30
33
26
25
30
27
28 29
9
31
32
36
7
6
37 9
10
34
1
4
39
10.
1
3
4
38
2
9. For exterior
type display
7.
21
26
20
27
32
31
30
28
8.
29
21
25
9.
34
36
10
7
30
21
25
29
31
33
24
27
23
28
21
20
30
21
9
6
37
37
7. For all models
8. For all models
39
10
10. Only for models with
exterior door handles
28
39

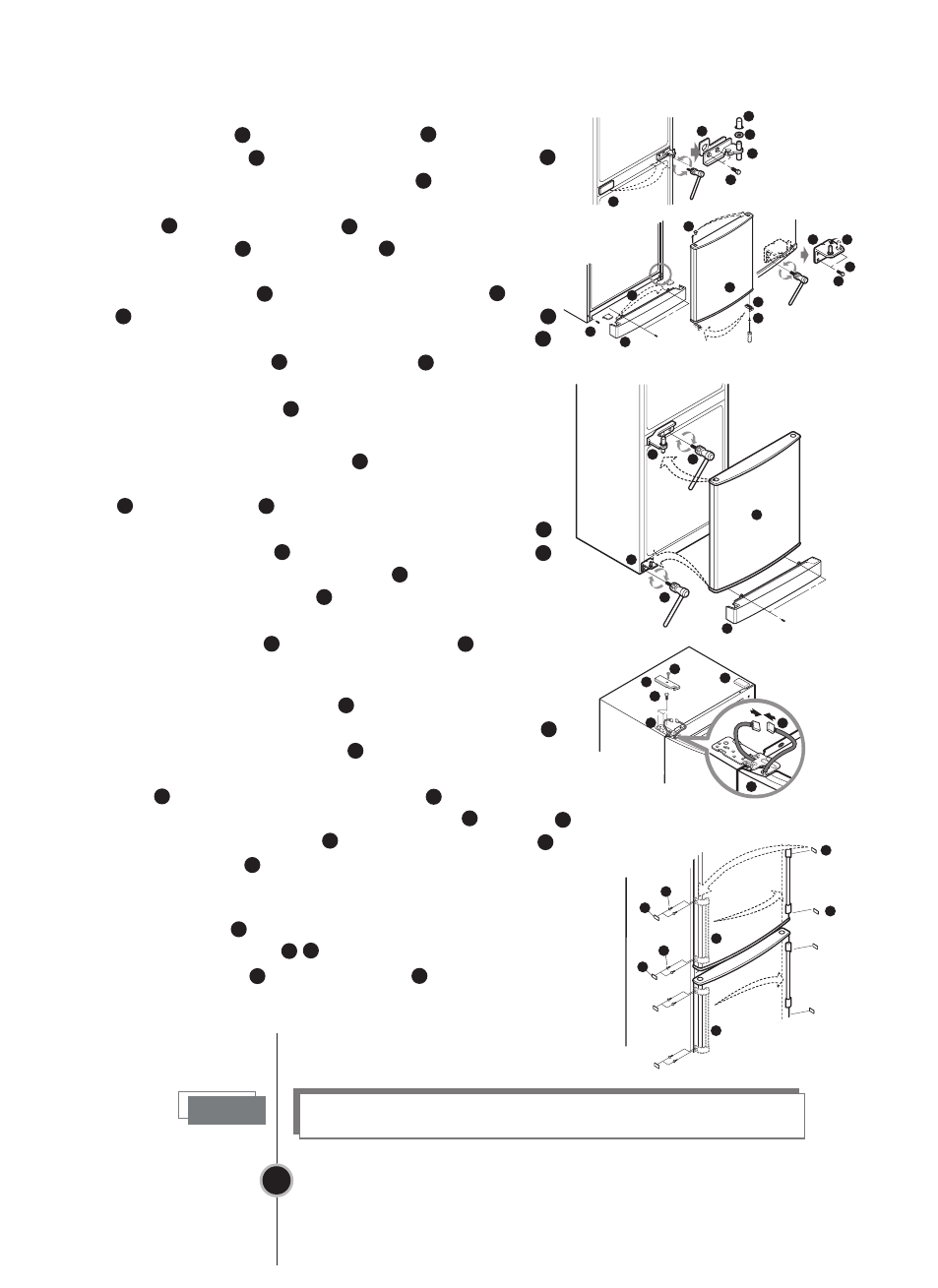

Reversing the doors is not covered by the warranty. Note
Unscrew bolts of the middle hinge , rise up
the freezer door to remove it. Take off cap cover
and install it instead of middle hinge .
After unscrewing the screws connecting the cover
lower , move cover lower to the opposite side.
Unscrew bolts of lower hinge rotating it by opposite
of clockwise and than screw it in opposite side hole.
Unscrew the bolts , which is fixing lower hinge & bolt
on the case of the refrigerator. Unscrew the screw
on the bottom of the case which is fixated support
of the freezer door , move support to the opposite
side in appropriated place and fix it up.
Move the upper cap on the opposite side.
Attach removed lower hinge to the hole, located on
the opposite side of the case and tighten it by screws
. Screw in bolt in the case of the refrigerator on
the opposite side. After fixating of the cover lower ,
install freezer door to the pin in the lower hinge .
Turn over removed middle hinge axis outwards,
and tighten it by screws (Tight carefully to prevent
scratching of the door).
Install the washer on the middle hinge .
Install the refrigerator door through matching holes
in the lower of the door and pin of the middle hinge .
Then install the upper hinge , supplied with refrigerator
by placing in the appropriated hole of the refrigerator
door . Connect the connector cable (only for exterior
display type models). Fix the upper hinge by bolts .
Install cover upper hinge and tighten it by screw .
Input the cover which is supplied with refrigerator.
Move the cap to the opposite side of the door.
Install door handles on the opposite side and fix
them by screws , put on the caps .
