Getting started, Installing & replacing the battery – Инструкция по эксплуатации Rekam DejaView HD830
Страница 32
32
2. Installing & Replacing the Battery

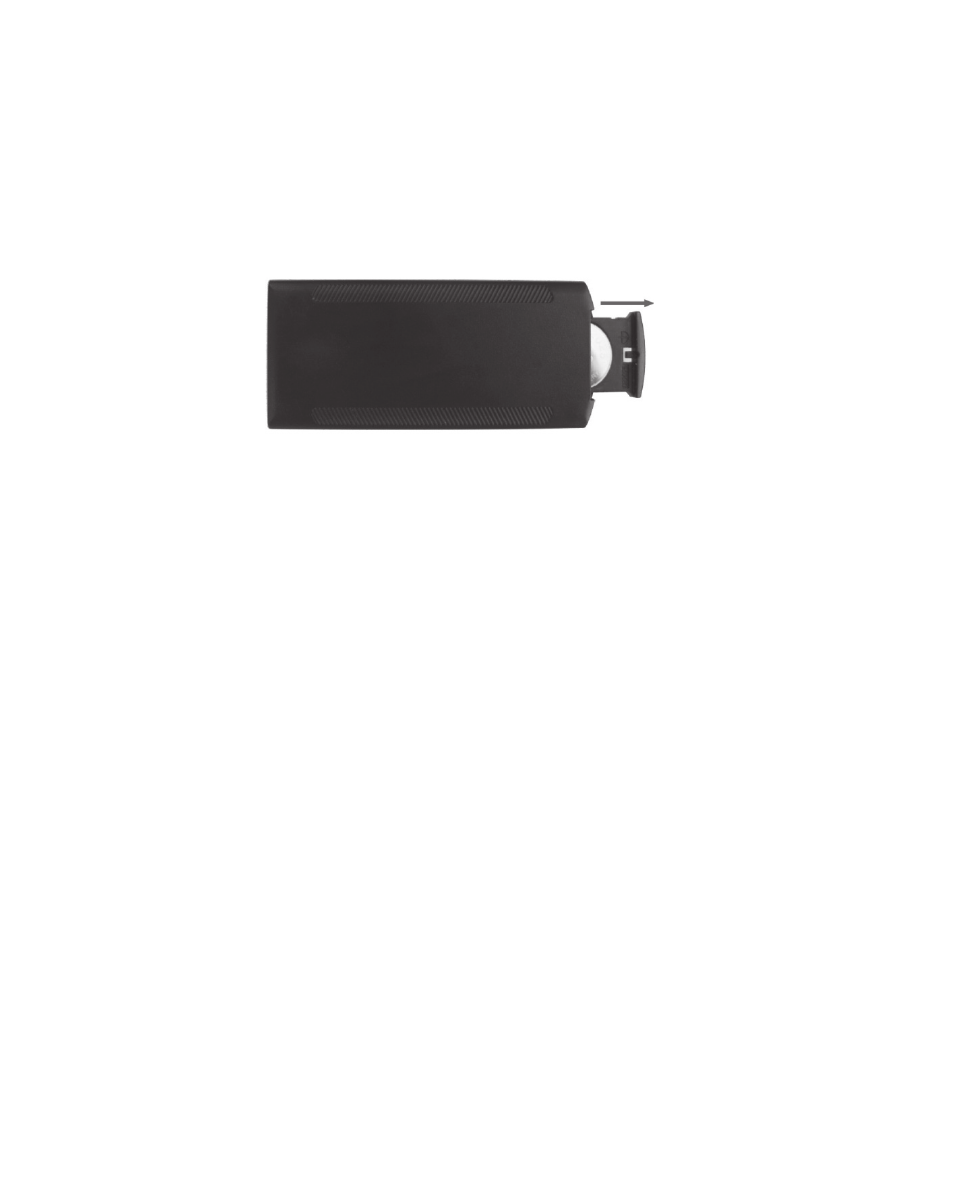

Place the upside of the remote control down, press down on the ridged area of the battery
cover and pull towards you to remove the tray. Place one CR2025 lithium buttoncell
battery on the tray with the positive “+”side facing you. Reinsert the tray.
3. Getting Started
3.1 Extend the digital photo frame bracket on the back of the frame to the widest position
for greatest stability, and then plug one end of the included AC adapter into a standard
110240V AC electrical outlet and the other end into the right side the frame.
Note: There are different positions for the digital photo frame stand. Please refer to
«Stand Instruction».
3.2. Remove the protective film covering the LCD.
3.3. Remove the plastic battery insulator from the battery compartment and make sure
the remote control has a battery inside. Please refer to “Installing & Replacing Battery” if
you need a new battery.
3.4. Power on the unit by pressing the Power button on the remote control.
